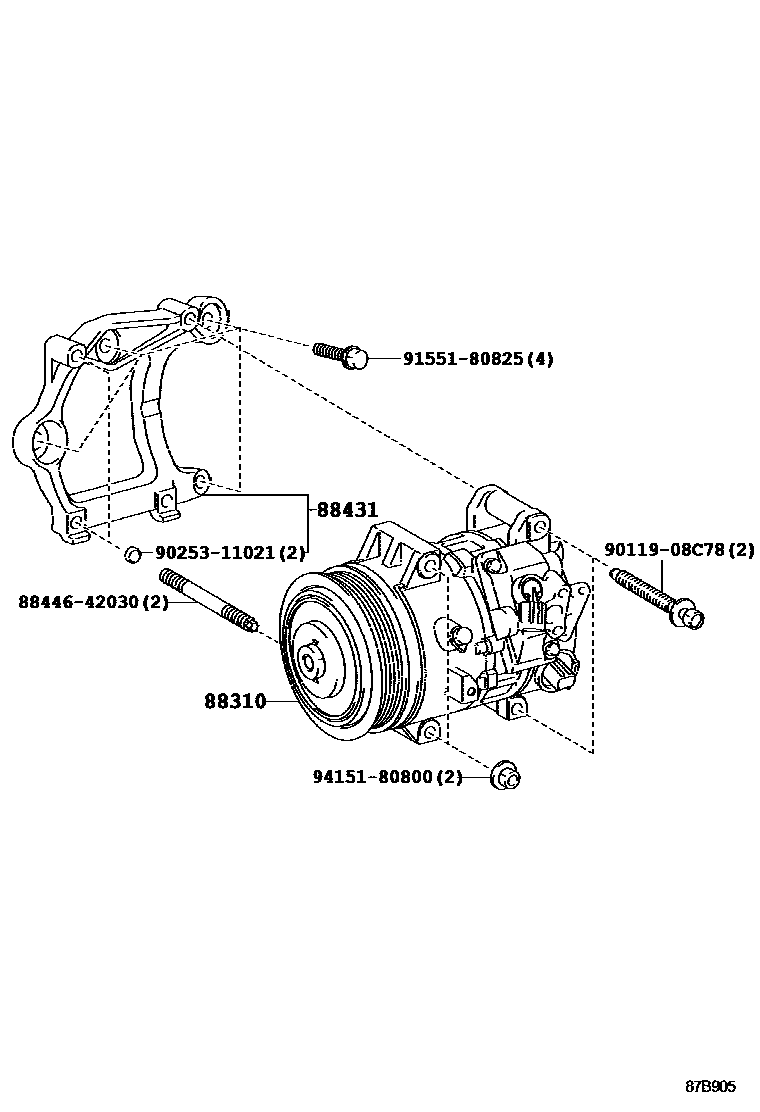

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1 0004 1 0005 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-06510iACV51201208-201209

main88310-06511iACV51201210-201411

main88310-0R013iASV50..RUP201111-201209

main88310-0R014iASV50..RUP201210-201411

main88310-42333iASV50..JPP201108-201209

main88310-42334iASV50..JPP201210-201704

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36010iASV50..RUP201108-201704

main88431-33050iAVV50201108-201704

8844642030BOLT, IDLE PULLEY

main88446-42030

9011908C78

main90119-08C78

9025311021

main90253-11021

9155180825

main91551-80825

9415180800

main94151-80800

7 parts on this diagram · 4 diagrams in section
