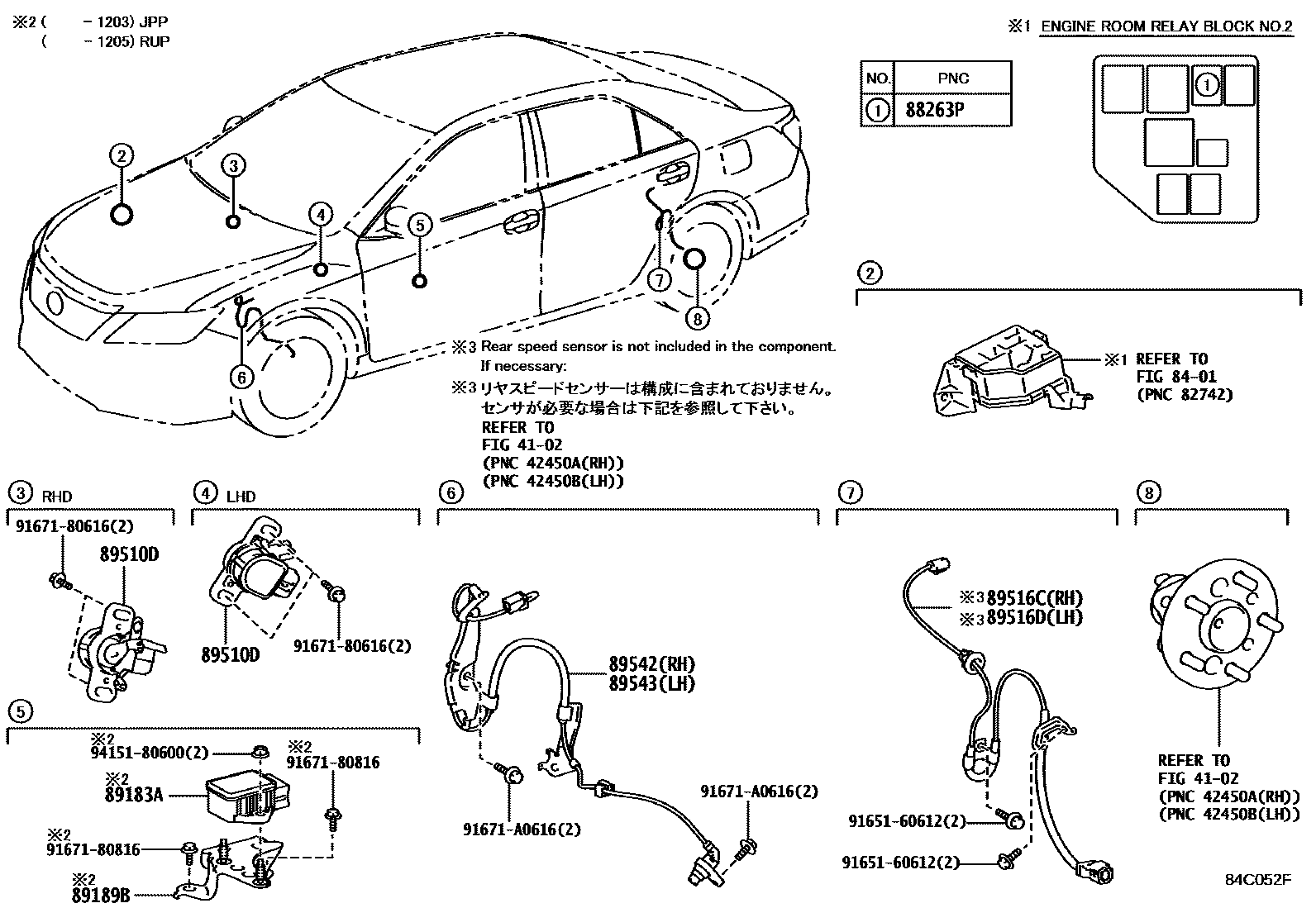

ABS & VSC

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88263PRELAY, STOP LAMP CONTROL

main90987-04004iAVV50201108-201409

89183ASENSOR, YAWRATE

main89183-0T010iASV50,GSV50..JPP201108-201203

main89183-48030iAVV50201108-201203

89189BBRACKET, YAWRATE SENSOR

main89189-33010iASV50,GSV50..RUP201108-201205

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iAVV50..RHD201108-201409

main89510-33030iAVV50..LHD201108-201409

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-33070iACV51,ASV50,GSV50..RUP201108-201411

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-33080iASV50,AVV50,GSV50..JPP201108-201409

89542SENSOR, SPEED, FRONT RH

main89542-33100iASV50,AVV50,GSV50..JPP201108-201409

main89542-33120iASV5#,AVV50,GSV50201409

89543SENSOR, SPEED, FRONT LH

main89543-33090iASV50,AVV50,GSV50..JPP201108-201409

main89543-33110iASV5#,AVV50,GSV50201409

9165160612

main91651-60612

9167180616

main91671-80616

9167180816

main91671-80816

91671A0616

main91671-A0616

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
