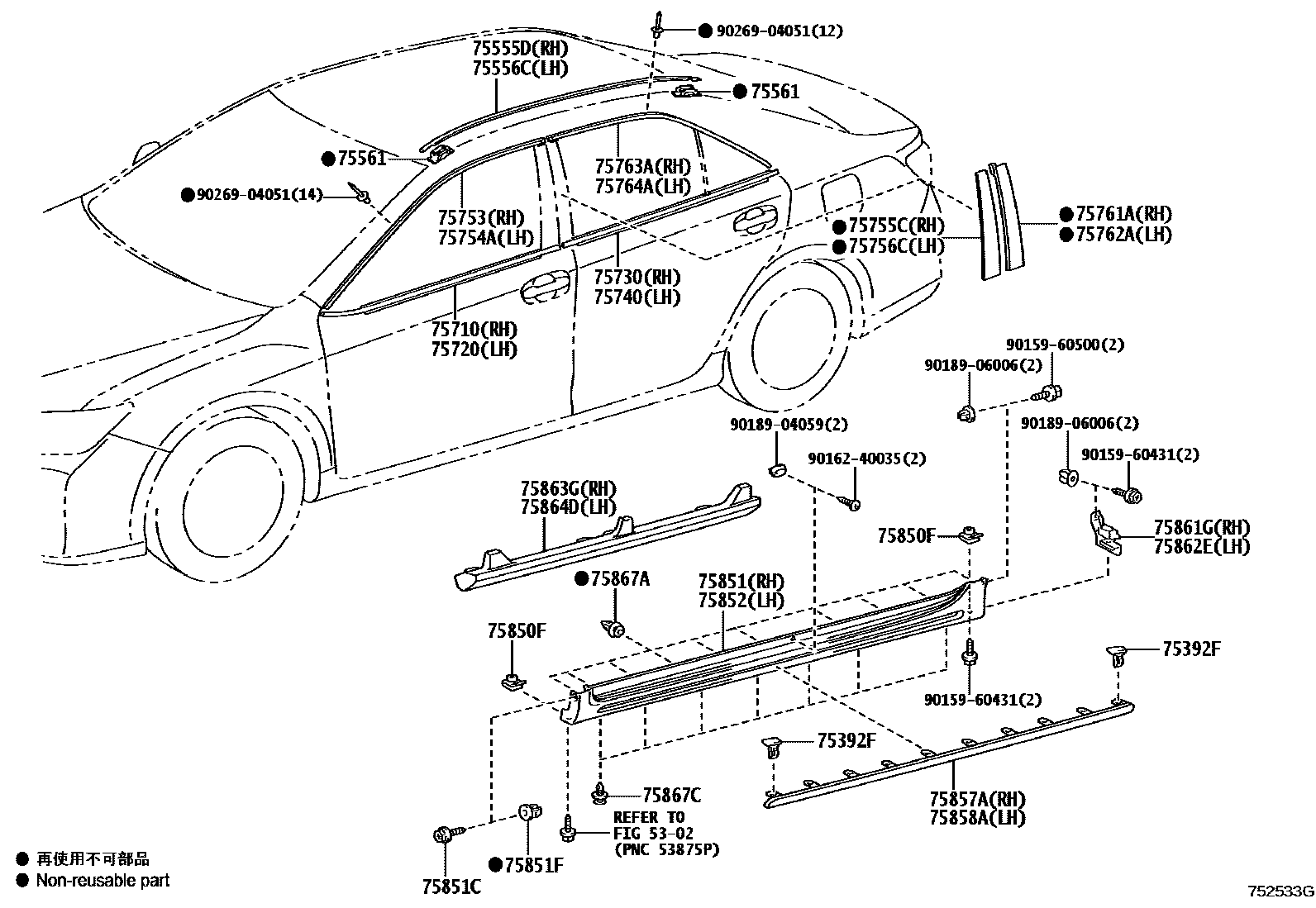

SIDE MOULDING
5302HOOD & FRONT FENDER
75392FRETAINER, OUTSIDE MOULDING
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75710MOULDING ASSY, FRONT DOOR BELT, RH
(L)
75720MOULDING ASSY, FRONT DOOR BELT, LH
(L)
(J)
75730MOULDING ASSY, REAR DOOR BELT, RH
(L)
(J)
75740MOULDING ASSY, REAR DOOR BELT, LH
(L)
(J)
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
(L)
(J)
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
(L)
(J)
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
(L)
(J)
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
(L)
(J)
75850FNUT, NO.1
75851MOULDING, ROCKER PANEL, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
RUSSIA SPEC
75851CSCREW(FOR BODY ROCKER PANEL MOULDING)
75851FGROMMET(FOR BODY ROCKER PANEL MOULDING)
75852MOULDING, ROCKER PANEL, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
RUSSIA SPEC
75857ACOVER, ROCKER PANEL MOULDING, RH
75858ACOVER, ROCKER PANEL MOULDING, LH
75861GCOVER, ROCKER PANEL MOULDING END, FRONT RH
(J)
75862ECOVER, ROCKER PANEL MOULDING END, FRONT LH
(L)
(J)
75863GPROTECTOR, ROCKER PANEL MOULDING, RH
75864DPROTECTOR, ROCKER PANEL MOULDING, LH
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
9015960431
main90159-60431
9015960500
main90159-60500
9016240035
main90162-40035
9018904059
main90189-04059
9018906006
main90189-06006
9026904051
main90269-04051
36 parts on this diagram · 4 diagrams in section
