MAT & CARPET
51960CHOOK ASSY, FRONT
58510DCARPET ASSY, FLOOR, FRONT
FLAXEN,TRIM00
BLACK,TRIM00,2#
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#
BLACK,TRIM0#,2#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#
SHELL,TRIM0#
BLACK,TRIM2#
FLAXEN,TRIM00
BLACK,TRIM0#,2#
SHELL,TRIM0#
BLACK,TRIM2#
FLAXEN,TRIM00
BLACK,TRIM0#,2#
58521BHOOK, FLOOR CARPET
58543BBRACKET, FLOOR CARPET, RH
(J)
58544ABRACKET, FLOOR CARPET, LH
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
62117GCLIP, NO.2(FOR COWL SIDE TRIM)
BLACK
BLACK

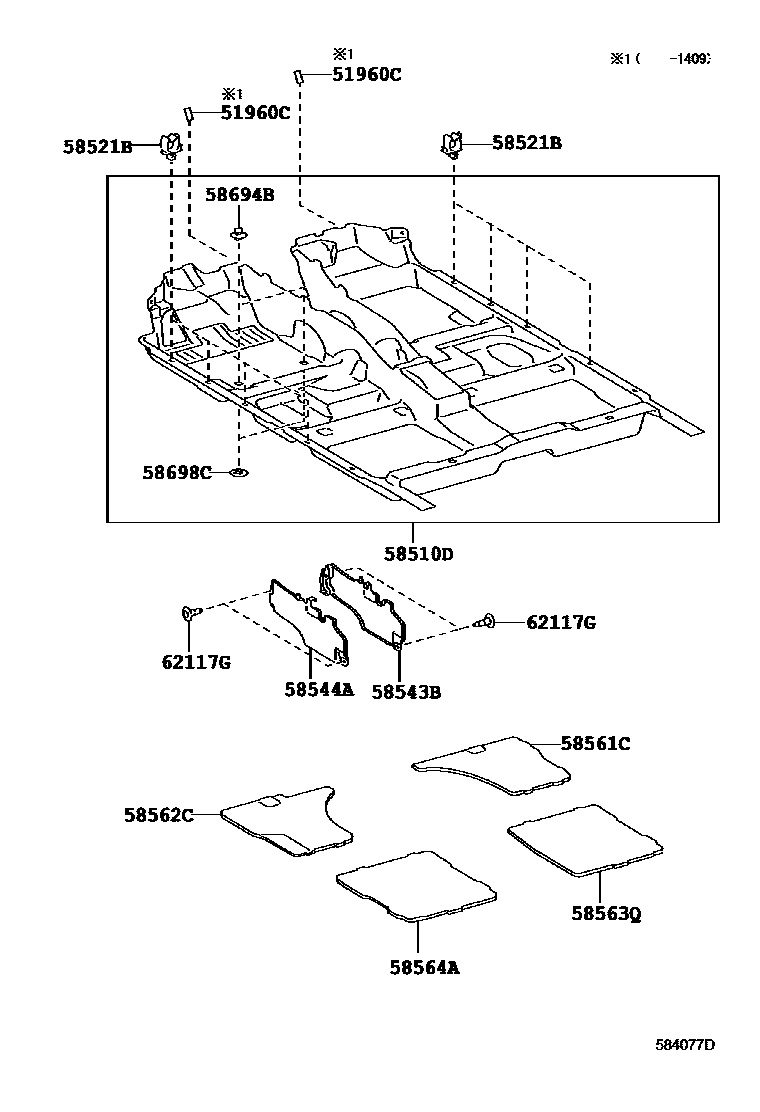

12 parts on this diagram · 1 diagram in section
