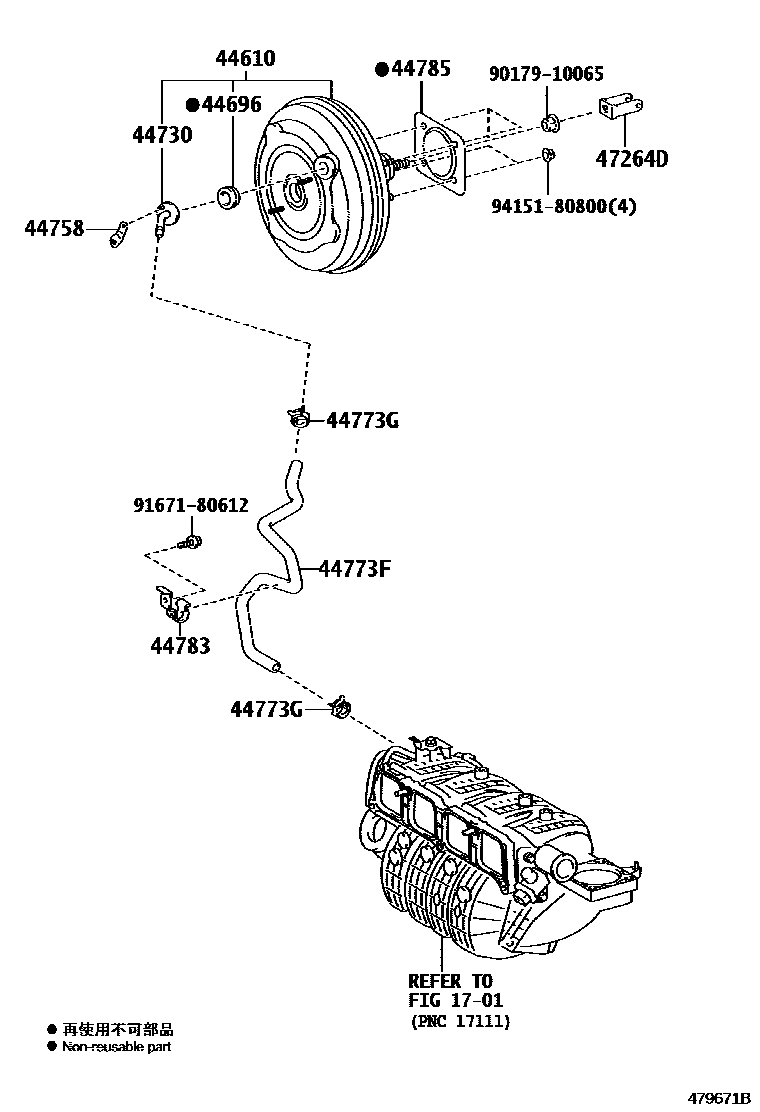

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-33870iASV50..RHD201108-201704

main44610-33880iASV50,GSV50..JPP..LHD201108-201411

main44610-33A50iASV51201503

44696GROMMET, CHECK VALVE

main90480-24015iASV50,GSV50..JPP201108-201411

main90480-24015iASV51201503

NO.1

main90480-24439iASV51201503

NO.2

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10020iASV50..RHD201108-201704

main44730-28030iACV51,ASV50,GSV50..RUP201108-201411

44758BRACKET, VACUUM CHECK VALVE

main44758-32070iASV50..RHD201108-201704

44773FHOSE, UNION TO CHECK VALVE

main44773-33150iGSV50..JPP201108-201411

main44773-33160iASV50..RHD201108-201704

main44773-33170iASV51201503

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iASV50..RHD;GSV50..JPP201108-201411

44783CLAMP, VACUUM HOSE

main44783-33010iGSV50..JPP201108-201411

main44783-42030iASV50..RUP201108-201411

main44783-44010iACV51201208-201411

44785GASKET, BRAKE BOOSTER

main44785-12040iACV51,ASV50,GSV50..RUP201108-201411

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iASV50,GSV50..JPP201108-201411

9017910065

main90179-10065

9167180612

main91671-80612

9415180800

main94151-80800

13 parts on this diagram · 5 diagrams in section
