FOG LAMP

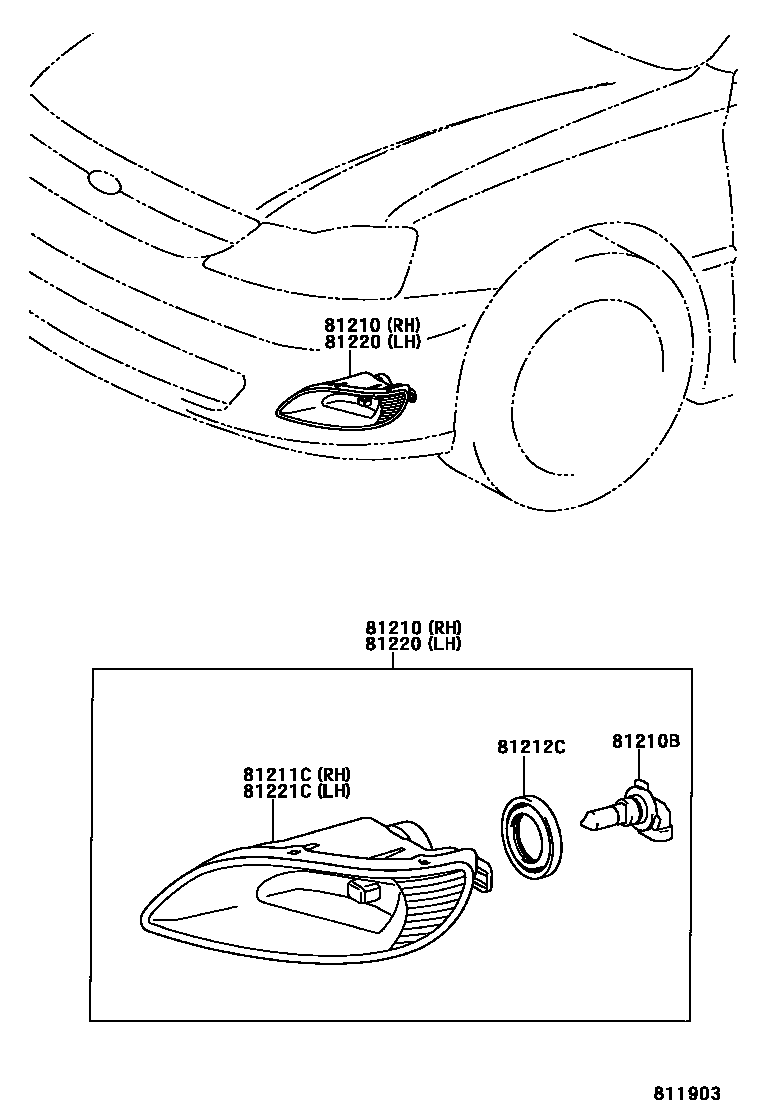

Parts diagram

81210LAMP ASSY, FOG

main81210-06040i200406

main81210-AA010i200108-200406

81210BBULB, FOG LAMP

main90981-13047i200108-200406

12V 51W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-06040i200406

main81211-AA010i200108-200406

81212CCOVER, FOG LAMP

main81212-06010i200108-200406

main90075-65010i200406

81220LAMP ASSY, FOG, LH

main81220-06040i200406

main81220-AA010i200108-200406

81221CLAMP UNIT, FOG LAMP, LH

main81221-06040i200406

main81221-AA010i200108-200406

6 parts on this diagram · 2 diagrams in section
