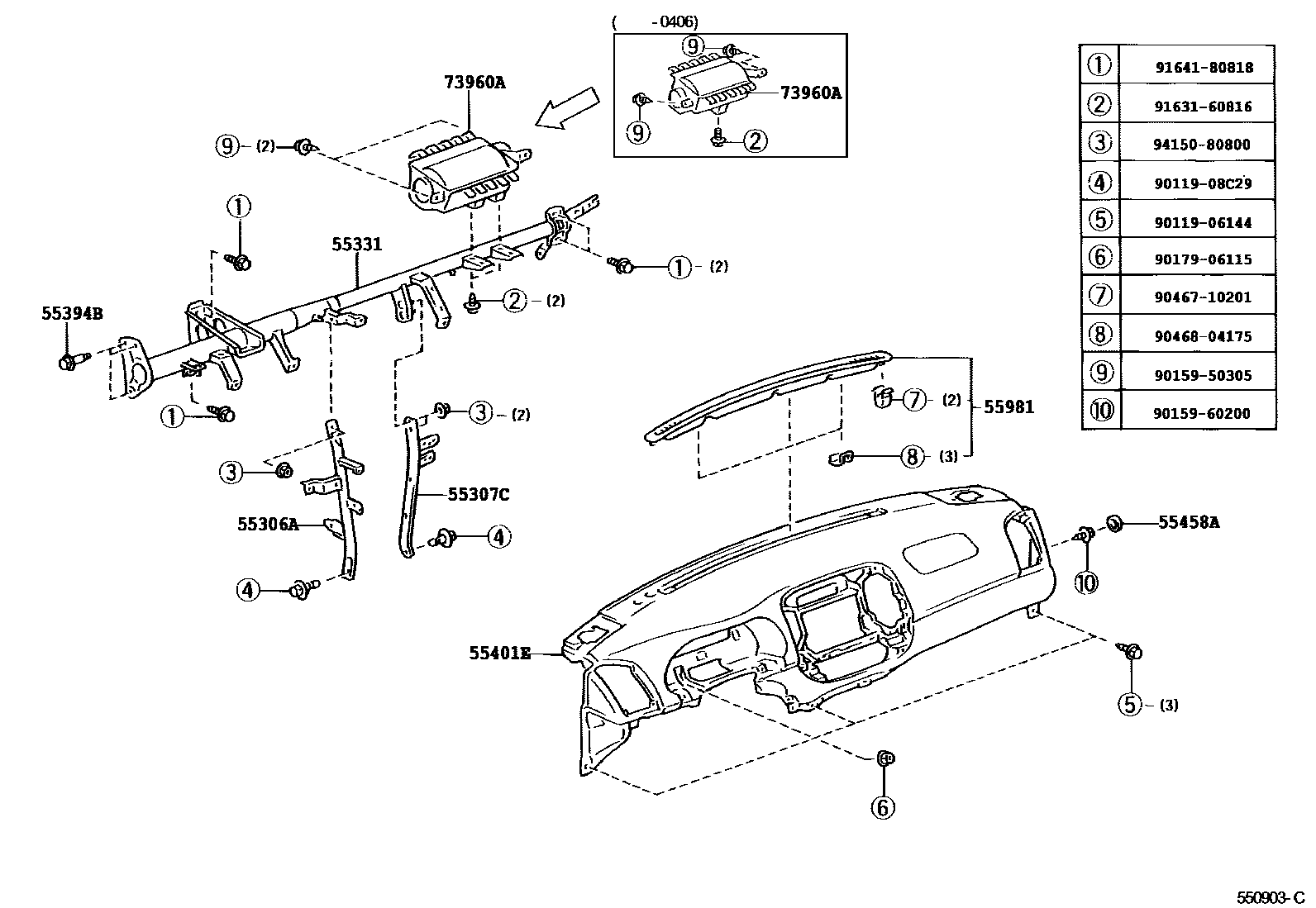

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-33060iACV3#,MCV30..LHD200108-200406

main55306-33070iACV3#,MCV30..RHD200109-200406

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-33120iACV3#,MCV30..LHD200108-200406

main55307-33130iACV3#,MCV30..RHD200109-200406

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-33180iACV3#,MCV30..LHD200108-200406

main55330-33190iACV3#,MCV30..RHD200109-200406

main55330-33270iACV3#,MCV30..RHD200406

main55330-33280iACV3#,MCV30..LHD200406

55394BBOLT, INSTRUMENT PANEL

main55394-33010iACV3#,MCV30200108-200406

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-33110-B1iACV3#,MCV30..LHD200108-200406

DK.GRAY,TRIM1#

main55401-33110-B1iACV3#,MCV30..LHD200406

DK.GRAY,TRIM9#

main55401-33110-E0iACV3#,MCV30..LHD200108-200406

SANDAL WOOD,TRIM4#

main55401-33130-B1iACV3#,MCV30..RHD200406

DK.GRAY,TRIM9#

main55401-33130-B1iACV3#,MCV30..RHD200109-200406

DK.GRAY,TRIM1#

main55401-33130-E1iACV3#,MCV30..RHD200109-200406

SANDAL WOOD,TRIM4#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-33090-B1iACV3#,MCV30200108-200406

DK.GRAY,TRIM1#

main55458-33090-B1iACV3#,MCV30200406

DK.GRAY,TRIM9#

main55458-33090-E0iACV3#,MCV30200108-200406

SANDAL WOOD,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33100iACV3#,MCV30200108-200406

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-33010iACV3#,MCV30..LHD200108-200406

main73960-33020iACV3#,MCV30..RHD200109-200406

main73960-33070iACV3#,MCV30200406

9011906144

main90119-06144

9011908C29

main90119-08C29

9015950305

main90159-50305

9015960200

main90159-60200

9017906115

main90179-06115

9046710201

main90467-10201

9046804175

main90468-04175

9163160816

main91631-60816

9164180818

main91641-80818

9415080800

main94150-80800

18 parts on this diagram · 8 diagrams in section
