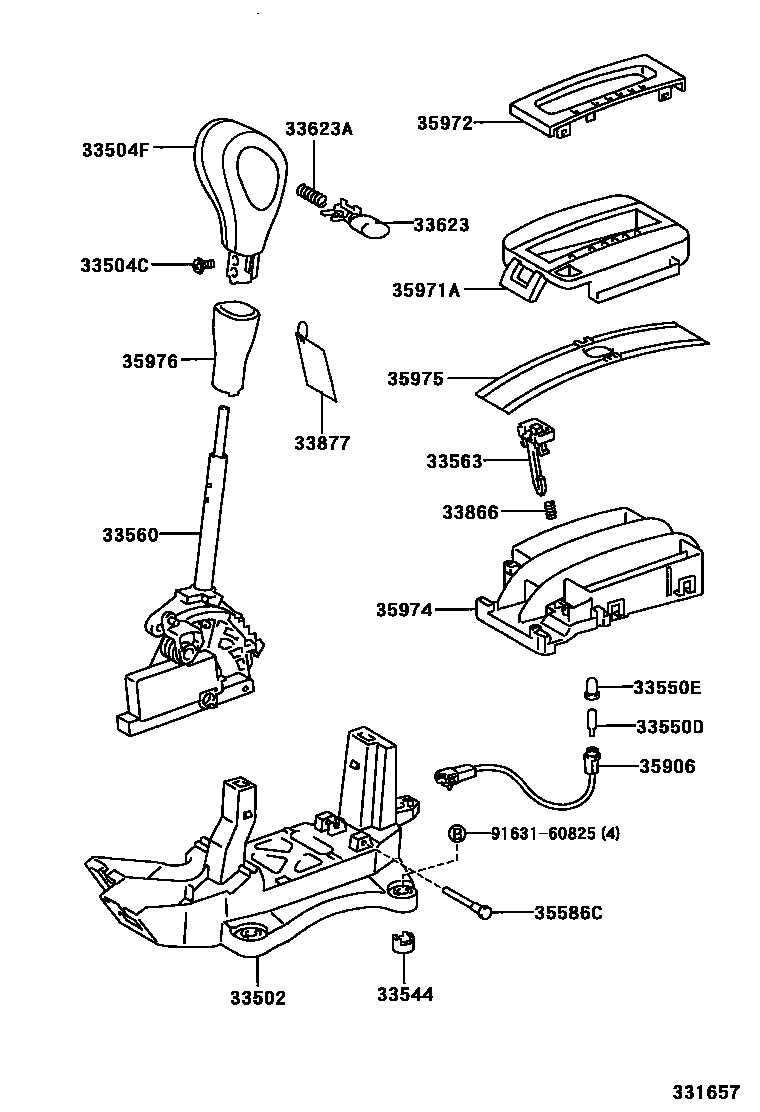

SHIFT LEVER & RETAINER
33502PLATE SUB-ASSY, SHIFT LEVER
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM1#
DK.GRAY,TRIM9#
SANDAL WOOD,TRIM4#
POWER & LEATHER PACKAGE,DK.GRAY,TRIM1#
DK.GRAY,TRIM9#
SANDAL WOOD,TRIM4#
POWER & LEATHER PACKAGE,SANDAL WOOD,TRIM4#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
L PACKAGE,DK.GRAY,TRIM1#
DK.GRAY,TRIM9#
L PACKAGE,SANDAL WOOD,TRIM4#
SANDAL WOOD,TRIM4#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
DK.GRAY,TRIM9#
CHINA SPEC,DK.GRAY,TRIM9#
DK.GRAY,TRIM1#
WOOD GRAIN;CHINA SPEC,SANDAL WOOD,TRIM4#
WOOD GRAIN,SANDAL WOOD,TRIM4#
DK.GRAY,TRIM9#
DK.GRAY,TRIM1#
HONG KONG SPEC,DK.GRAY,TRIM9#
SANDAL WOOD,TRIM4#
HONG KONG SPEC,SANDAL WOOD,TRIM4#
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
14V 1.4W
33550ECAP, POSITION INDICATOR LAMP
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33866SPRING, SHIFT LOCK RELEASE
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35586CPIN, TOGGLE LEVER SUPPORT
35906WIRE SUB-ASSY, INDICATOR LAMP
35971AHOUSING, POSITION INDICATOR, UPPER
35972COVER, POSITION INDICATOR HOUSING
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
9163160825
main91631-60825
20 parts on this diagram · 3 diagrams in section
