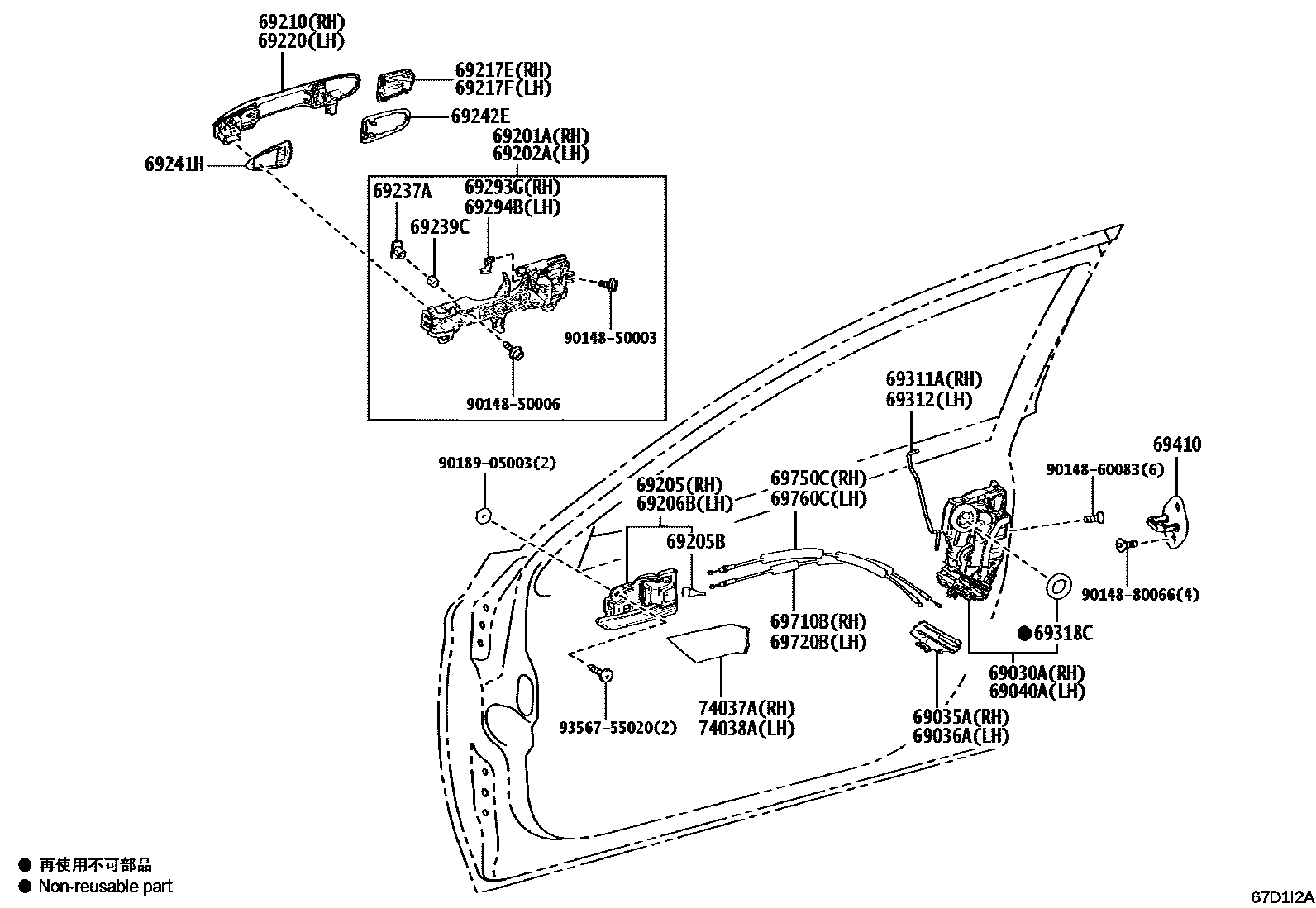

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
KOREA SPEC
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
KOREA SPEC
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
EMOTIONAL RED 3,3U9
PRECIOUS BRONZE,4Y6
DK. BLUE MC.,8X8
PRECIOUS METAL,1L5
main69210-K0020-A0supersedes 69210-V2110-A1iAXVH80..LHD..EUR; AXVH80..LHD..G..EUR; AXVH80..TAIW;AXVA80,MXVA80..EUR,TAIW202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; SUPER WHITE 2,040; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040
main69210-K0020-A3supersedes 69210-V2110-A0iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089
main69210-K0020-B0supersedes 69210-V2110-B5iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; SILVER ME.,1F7; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7
main69210-K0020-C3supersedes 69210-V2110-C3iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218
main69210-K0020-D7supersedes 69210-V2110-D4iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; EMOTIONAL RED 3,3U9; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9
YANMER BEIGE,4Q0
main69210-K0020-E8supersedes 69210-V2110-E3iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; PRECIOUS BRONZE,4Y6; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6
main69210-K0020-J3supersedes 69210-V2110-J5iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; DK. BLUE MC.,8X8; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8
main69210-K0020-P0supersedes 69210-V2110-B0iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; PRECIOUS METAL,1L5; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-K0010-A0supersedes 69210-V2100-A1iAXVH80..LHD..EUR; AXVH80..LHD..G..EUR; AXVH80..TAIW;AXVA80,MXVA80..EUR,TAIW202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; SUPER WHITE 2,040; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SUPER WHITE 2,040
main69210-K0010-A3supersedes 69210-V2100-A0iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PLATINUM WHITE PEARL MC.,089
main69210-K0010-B0supersedes 69210-V2100-B5iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; SILVER ME.,1F7; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),SILVER ME.,1F7
main69210-K0010-C3supersedes 69210-V2100-C3iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),ATTITUDE BLACK MC.,218
main69210-K0010-D7supersedes 69210-V2100-D4iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; EMOTIONAL RED 3,3U9; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),EMOTIONAL RED 3,3U9
YANMER BEIGE,4Q0
main69210-K0010-E8supersedes 69210-V2100-E3iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; PRECIOUS BRONZE,4Y6; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS BRONZE,4Y6
main69210-K0010-J3supersedes 69210-V2100-J5iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; DK. BLUE MC.,8X8; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),DK. BLUE MC.,8X8
main69210-K0010-P0supersedes 69210-V2100-B0iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; PRECIOUS METAL,1L5; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5; WITHOUT(REMOTE AIR CONDITIONER PACKAGE),PRECIOUS METAL,1L5
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
EMOTIONAL RED 3,3U9
PRECIOUS BRONZE,4Y6
DK. BLUE MC.,8X8
PRECIOUS METAL,1L5
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
74037ACOVER SUB-ASSY, FRONT DOOR ARMREST, RH
74038ACOVER SUB-ASSY, FRONT DOOR ARMREST, LH
9014850003
main90148-50003
9014850006
main90148-50006
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
35 parts on this diagram · 1 diagram in section
