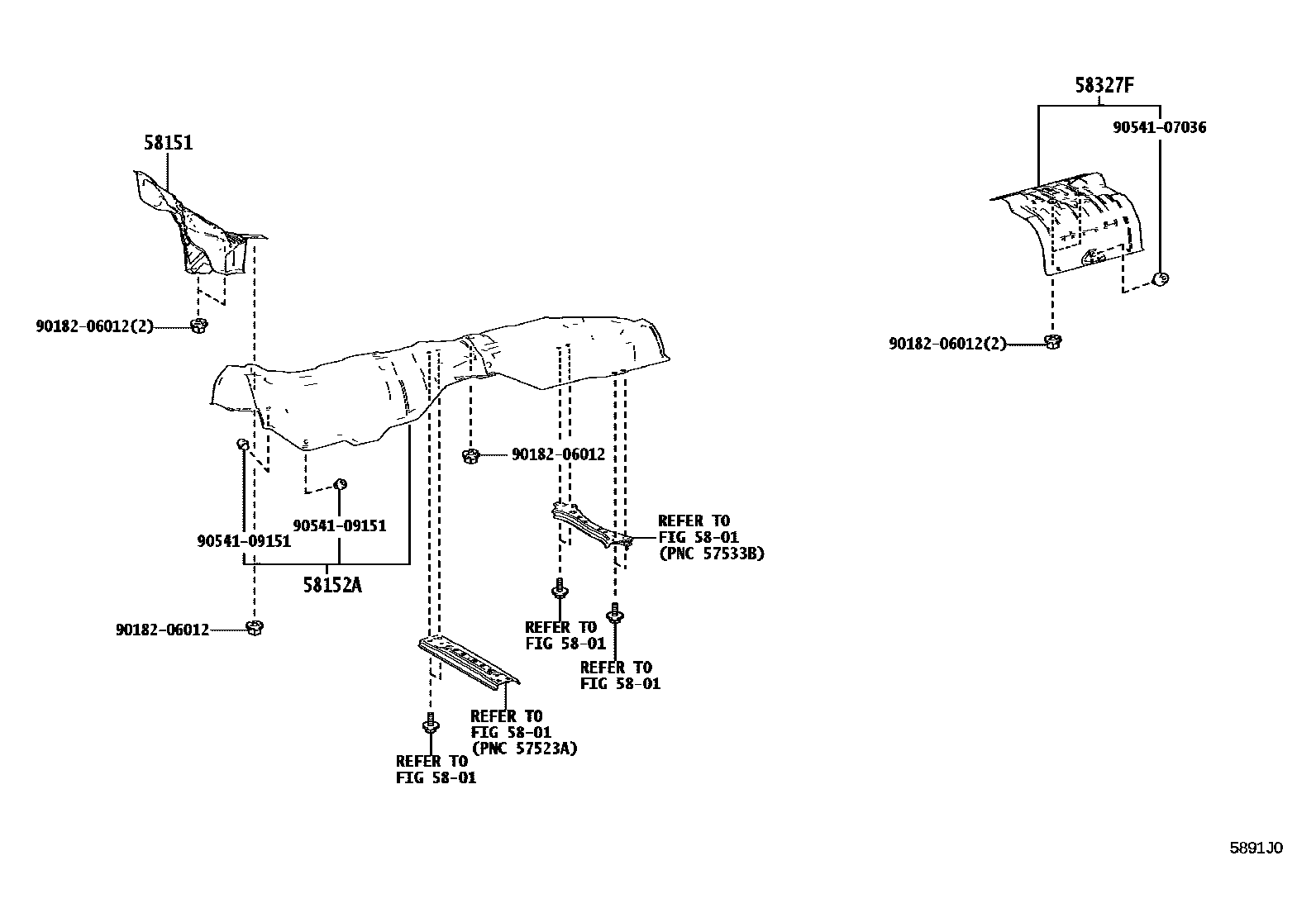

FLOOR INSULATOR

0001 1 0002 1

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-33010iAXVA80,AXVH80,MXVA80202406

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-33080iAXVA80,AXVH80,MXVA80202406

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-33080iAXVA80,MXVA80202406

9018206012

main90182-06012

9054107036

main90541-07036

9054109151

main90541-09151

7 parts on this diagram · 2 diagrams in section
