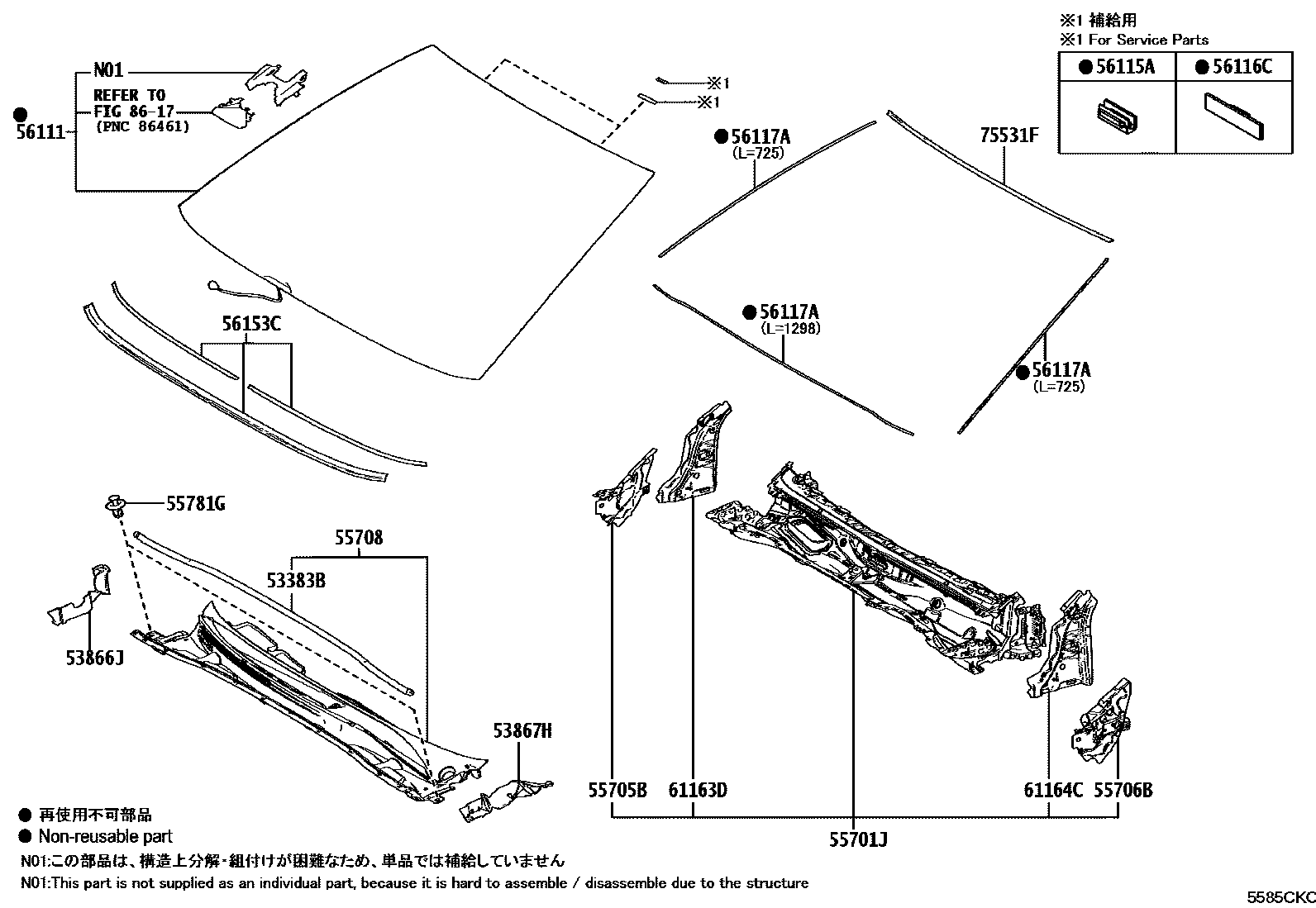

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701JPANEL SUB-ASSY, COWL TOP, OUTER
main55701-33270supersedes 55701-33250iAXVA80,MXVA80;AXVH80..GCC,TAIW; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MOLDOVA SPEC
ISRAEL SPEC; KOREA SPEC
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
LIBYA SPEC
ISRAEL SPEC; KOREA SPEC
KOREA SPEC&UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH; UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH
UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH&AUDIO-12.3INCH & JBL 9SPEAKER
PAPUA NEW GUINEA, FIJI SPEC
HEAD UP DISPLAY-WITHOUT&AUDIO-8INCH 6SPEAKER; SRI LANKA SPEC&&HEAD UP DISPLAY-WITHOUT&AUDIO-8INCH 6SPEAKER
CAUCASUS SPEC; EGYPT SPEC; MOLDOVA SPEC; UKRAINE SPEC
CAUCASUS SPEC&UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH; MOLDOVA SPEC&UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH; UKRAINE SPEC&UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
main56117-64010iAXVA80,AXVH80,MXVA80; AXVA80,AXVH80..LHD..EUR; AXVA80,AXVH80..LHD..G..EUR; AXVA80..G..EUR; AXVH80..G..GCC; AXVH80..LHD..G..EUR202406
*D,L=1298 OR 725; *D,L=1298 OR 725,CAUCASUS SPEC; *D,L=1298 OR 725,CAUCASUS SPEC&UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH; *D,L=1298 OR 725,EGYPT SPEC; *D,L=1298 OR 725,ISRAEL SPEC; *D,L=1298 OR 725,KOREA SPEC; *D,L=1298 OR 725,KOREA SPEC&UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH; *D,L=1298 OR 725,LIBYA SPEC; *D,L=1298 OR 725,MOLDOVA SPEC; *D,L=1298 OR 725,MOLDOVA SPEC&UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH; *D,L=1298 OR 725,UKRAINE SPEC; *D,L=1298 OR 725,UKRAINE SPEC&UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH; *D,L=1298 OR 725,UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH; *D,L=1298 OR 725,UPPER GRADE PACKAGE&HEAD UP DISPLAY-WITH&AUDIO-12.3INCH & JBL 9SPEAKER
56153CMOULDING, FRONT WINDOW, INNER CENTER
61163DPILLAR, FRONT BODY, LOWER INNER RH
ISRAEL SPEC; KOREA SPEC
main61163-33030iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MOLDOVA SPEC
61164CPILLAR, FRONT BODY, LOWER INNER LH
ISRAEL SPEC; KOREA SPEC
main61164-33030iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MOLDOVA SPEC
75531FMOULDING, WINDSHIELD, OUTSIDE UPPER
8617PRE-COLLISION SYSTEM
17 parts on this diagram · 2 diagrams in section
