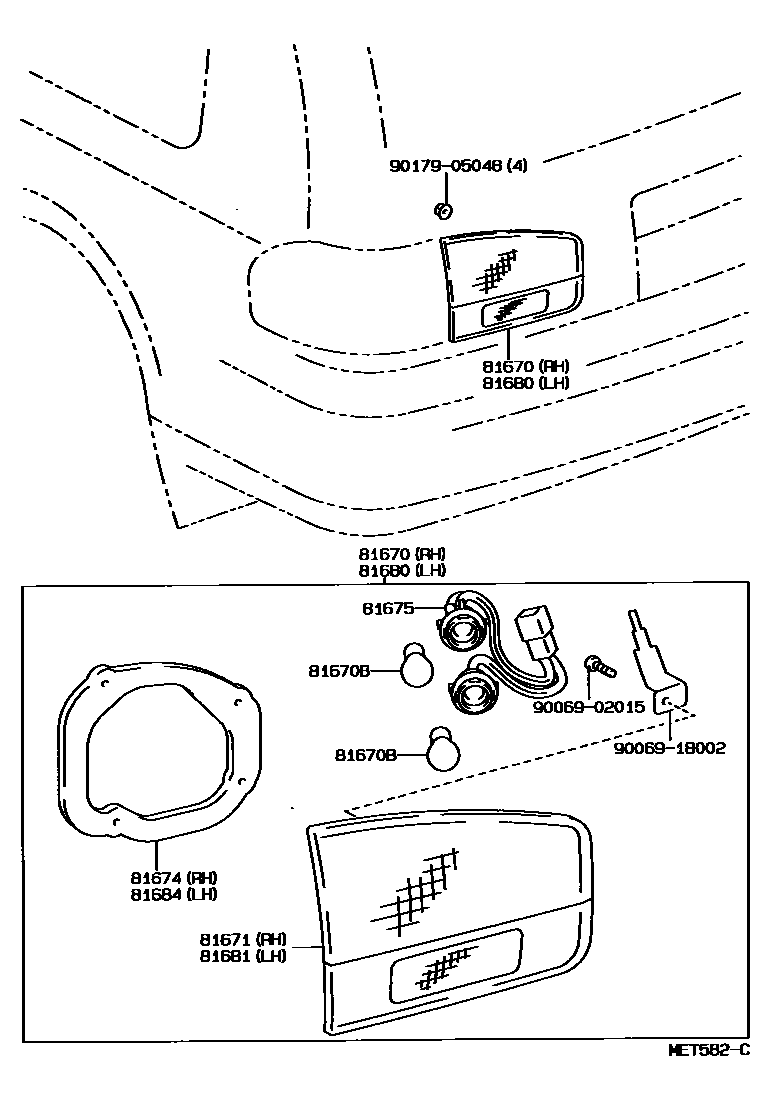

BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-06050iSXV10,VCV10..NAP199203-199607

81670BBULB(FOR BACK-UP LAMP)

main99132-11210×4iSXV10,VCV10..NAP199203-199607

12V 21W

81671LENS, BACK-UP LAMP, RH

main81671-06050iSXV10,VCV10..NAP199208-199607

81674GASKET, BACK-UP LAMP BODY, RH

main81674-06040iSXV10,VCV10..NAP199203-199607

81675SOCKET & WIRE, BACK-UP LAMP

main81675-06050×2iSXV10,VCV10..NAP199208-199607

81680LAMP ASSY, BACK UP, LH

main81680-06030iSXV10,VCV10..NAP199203-199607

81681LENS, BACK-UP LAMP, LH

main81681-06030iSXV10,VCV10..NAP199208-199607

81684GASKET, BACK UP LAMP BODY, LH

main81674-06040iSXV10,VCV10..NAP199203-199208

9006902015

main90069-02015

9006918002

main90069-18002

9017905048

main90179-05048

11 parts on this diagram · 1 diagram in section
