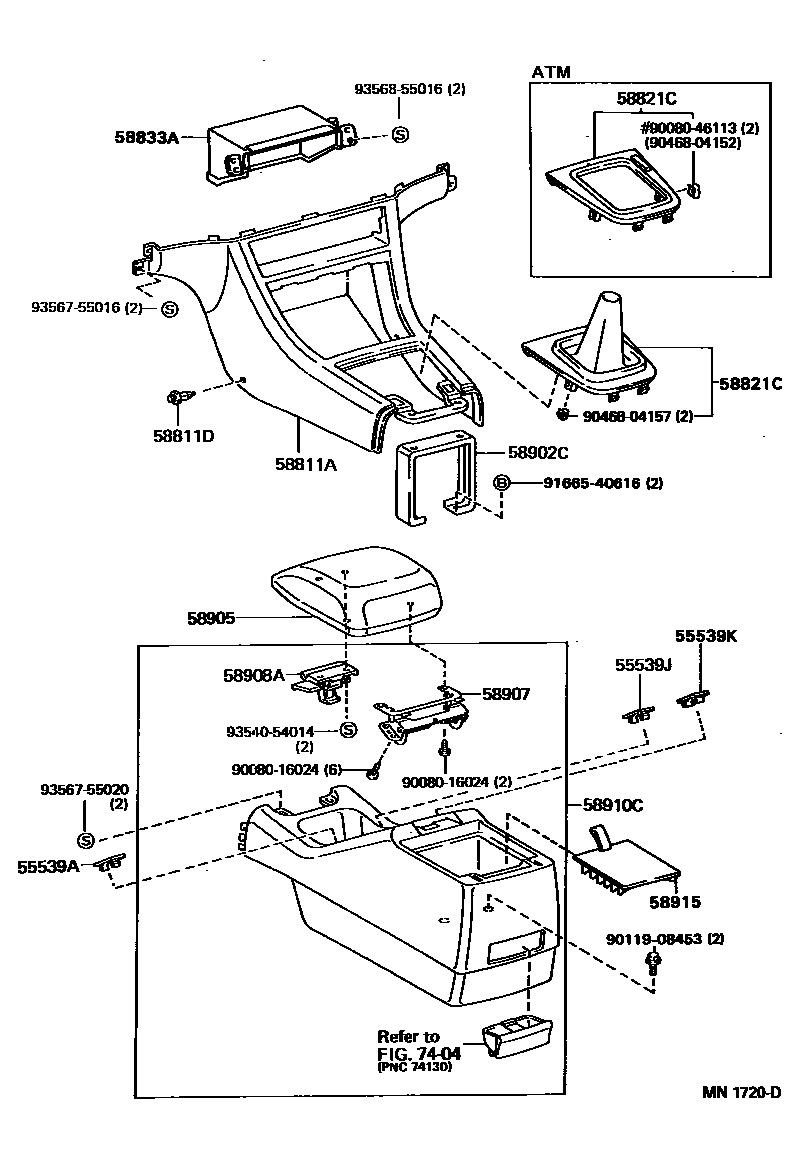

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-06010-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

main55539-06010-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main55539-06010-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

55539JCOVER, SPARE SWITCH HOLE

main55539-06010-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

main55539-06010-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main55539-06010-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

55539KCOVER, SPARE SWITCH HOLE

main55539-20080-B0iSXV10,VCV10..NAP..RHD199203-199607

MEDIUM GRAY,TRIM1#

main55539-20080-E0iSXV10,VCV10..NAP..RHD199309-199607

OAK,TRIM4#

main55539-20080-J0iSXV10,VCV10..NAP..RHD199203-199309

DARK BLUE,TRIM8#

58811ABOX, CONSOLE, FRONT

main58810-06010-B0iSXV10,VCV10..NAP..LHD199203-199607

MEDIUM GRAY,TRIM1#

main58810-06010-E0iSXV10,VCV10..NAP..LHD199309-199607

OAK,TRIM4#

main58810-06010-J0iSXV10,VCV10..NAP..LHD199203-199309

DARK BLUE,TRIM8#

main58810-33020-B0iSXV10,VCV10..NAP..RHD199203-199607

MEDIUM GRAY,TRIM1#

main58810-33020-E0iSXV10,VCV10..NAP..RHD199309-199607

OAK,TRIM4#

main58810-33020-J0iSXV10,VCV10..NAP..RHD199203-199309

DARK BLUE,TRIM8#

58811DCLIP(FOR CONSOLE BOX)

main90467-06151-B0×2iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

main90467-06151-E0×2iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main90467-06151-J0×2iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

58821CPANEL, CONSOLE, UPPER

main58804-06010-B0iSXV10,VCV10..NAP..LHD..ATM199203-199607

MEDIUM GRAY,TRIM1#

main58804-06010-E0iSXV10,VCV10..NAP..LHD..ATM199309-199607

OAK,TRIM4#

main58804-06010-J0iSXV10,VCV10..NAP..LHD..ATM199203-199309

DARK BLUE,TRIM8#

main58804-33030-B0iSXV10,VCV10..NAP..RHD..ATM199203-199607

MEDIUM GRAY,TRIM1#

main58804-33030-E0iSXV10,VCV10..NAP..RHD..ATM199309-199607

OAK,TRIM4#

main58804-33030-J0iSXV10,VCV10..NAP..RHD..ATM199203-199309

DARK BLUE,TRIM8#

main58804-33080-B0iSXV10,VCV10..NAP..MTM199203-199607

MEDIUM GRAY,TRIM1#

main58804-33080-E0iSXV10,VCV10..NAP..MTM199309-199607

OAK,TRIM4#

main58804-33080-J0iSXV10,VCV10..NAP..MTM199203-199309

DARK BLUE,TRIM8#

58833ACOVER, CONSOLE, UPPER

main58833-33010-B0iSXV10,VCV10..NAP..LHD199203-199607

MEDIUM GRAY,TRIM1#

main58833-33010-E0iSXV10,VCV10..NAP..LHD199309-199607

OAK,TRIM4#

main58833-33010-J0iSXV10,VCV10..NAP..LHD199203-199309

DARK BLUE,TRIM8#

main58833-33020-B0iSXV10,VCV10..NAP..RHD199203-199607

MEDIUM GRAY,TRIM1#

main58833-33020-E0iSXV10,VCV10..NAP..RHD199309-199607

OAK,TRIM4#

main58833-33020-J0iSXV10,VCV10..NAP..RHD199203-199309

DARK BLUE,TRIM8#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-06010iSXV10,VCV10..NAP..MTM199203-199607

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-06010-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

main58905-06010-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main58905-06010-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-06010iSXV10,VCV10..NAP199203-199607

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-06010iSXV10,VCV10..NAP199203-199607

58910CBOX ASSY, CONSOLE, REAR

main58910-06020-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

main58910-06020-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main58910-06020-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

main58910-06030-B0iSXV10,VCV10..NAP..LHD199203-199607

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main58910-06030-E0iSXV10,VCV10..NAP..LHD199309-199607

W(SEAT HEATER),OAK,TRIM4#

main58910-06030-J0iSXV10,VCV10..NAP..LHD199309-199408

W(SEAT HEATER),DARK BLUE,TRIM4#

58915PANEL, BOX BOTTOM

main58915-06020iSXV10,VCV10..NAP199203-199607

7404ASH RECEPTACLE

→ Go to FIG 74-04

9008016024

main90080-16024

9008046113

main90080-46113

9011908453

main90119-08453

9046804152

main90468-04152

9046804157

main90468-04157

9166540616

main91665-40616

9354054014

main93540-54014

9356755016

main93567-55016

9356755020

main93567-55020

9356855016

main93568-55016

24 parts on this diagram · 1 diagram in section
