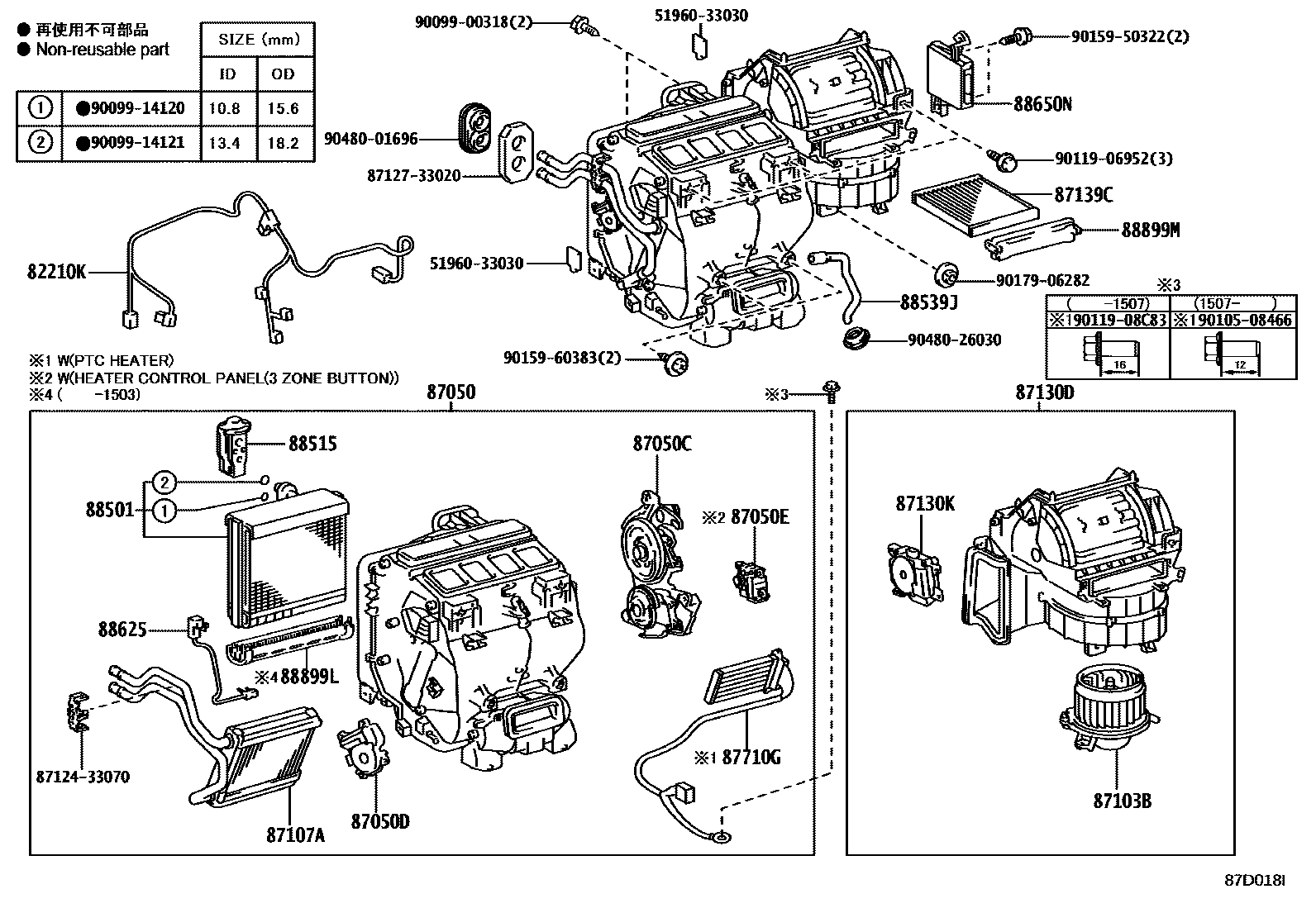

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87139CFILTER, CLEAN AIR
CHILE SPEC,*DPF
GUATEMALA SPEC,*DPF
DOMINICAN REPUBLIC SPEC,*DPF
CURACAO SPEC,*DPF
CENTRAL & SOUTH AMERICA SPEC,*DPF
*DPF
AZERBAYCAN SPEC,*DPF
KAZAKHSTAN SPEC,*DPF
BRAZIL SPEC,*DPF
PERU SPEC,*DPF
POLLEN FILTER
87710GQUICK HEATER ASSY
STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)
STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL
STEERING WHEEL-3-SPOKE,LETHER & BAMBOO WITH(HEATER)
STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP &*RES) & WIND(*DRP))
STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88539JHOSE, DRAIN COOLER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & BAMBOO&SEAT HEATER-WITH(HEATER(*DRP) &WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & BAMBOO&SEAT HEATER-WITH(HEATER(*DRP) &WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & BAMBOO&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & BAMBOO&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LETHER & BAMBOO WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LETHER & BAMBOO WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LETHER & BAMBOO WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LETHER & BAMBOO WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD & 8SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))&AUDIO-EMVN & DVD & *MAR & 15SPEAKER
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & BAMBOO&SEAT HEATER-WITH(HEATER(*DRP) &WIND(*DRP))
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & BAMBOO&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
G PACKAGE&STEERING WHEEL-3-SPOKE,LETHER & BAMBOO WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
G PACKAGE&STEERING WHEEL-3-SPOKE,LETHER & BAMBOO WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
C PACKAGE
C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD
C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
5196033030HOOK ASSY, FRONT
main51960-33030
8712433070CLAMP, HEATER
main87124-33070
8712733020PACKING, HEATER AIR DAMPER
main87127-33020
9009900318
main90099-00318
9009914120
main90099-14120
9009914121
main90099-14121
9010508466
main90105-08466
9011906952
main90119-06952
9011908C83
main90119-08C83
9015950322
main90159-50322
9015960383
main90159-60383
9017906282
main90179-06282
9048001696
main90480-01696
9048026030
main90480-26030
32 parts on this diagram · 1 diagram in section
