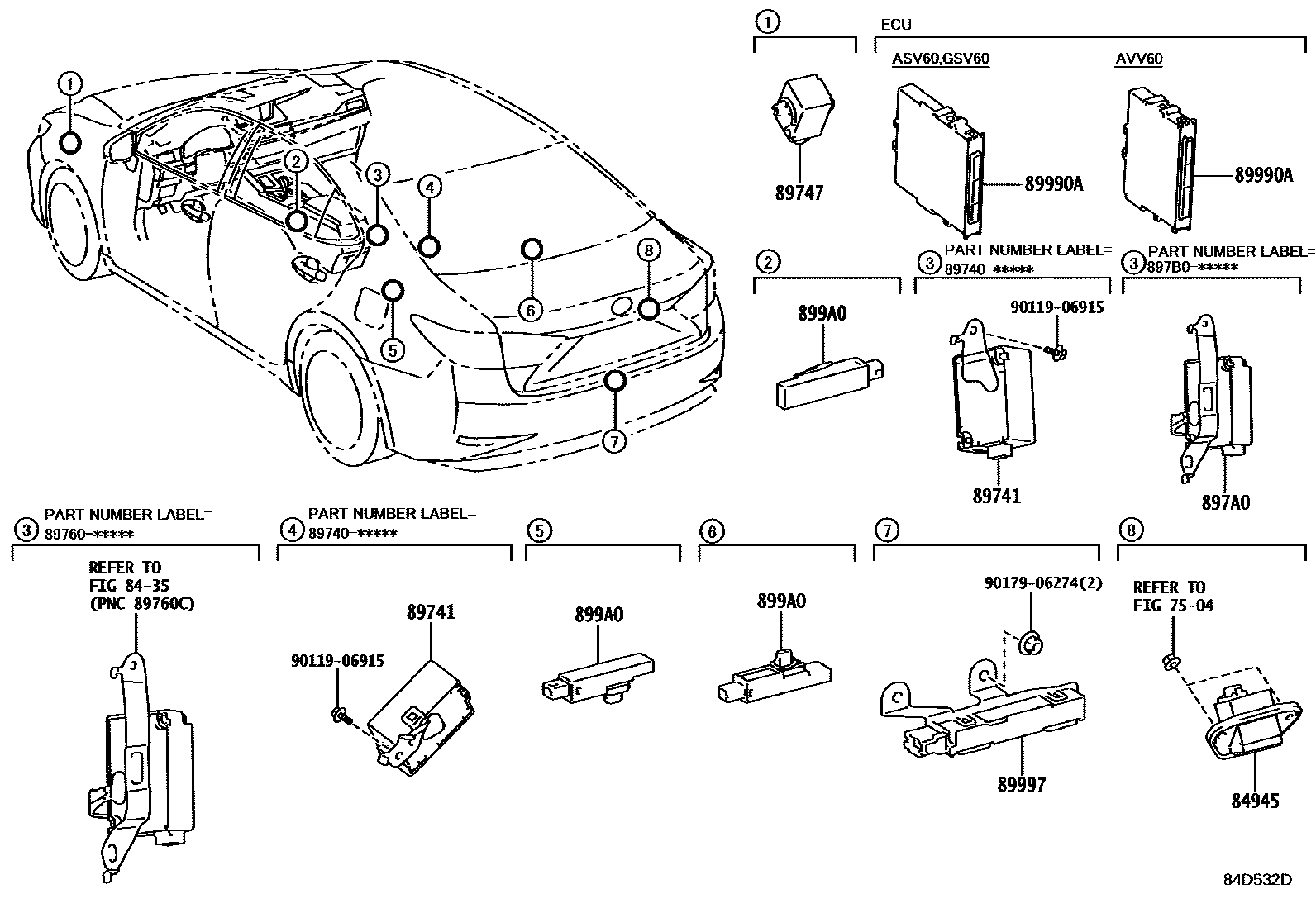

WIRELESS DOOR LOCK

7504REAR MOULDING

→ Go to FIG 75-04

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-33020iASV60,AVV60,GSV60201206-201507

89741RECEIVER, DOOR CONTROL

main89740-33390iASV60,AVV60,GSV60201206-201308

main89740-33391iASV60,AVV60,GSV60201308-201411

main89740-33430iASV60,AVV60,GSV60201412-201507

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iASV60,AVV60,GSV60201206-201507

897A0RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897B0-33070

main897B0-33071

89990ACOMPUTER ASSY, SMART KEY

main89990-33330iASV60,GSV60201206-201308

main89990-33340iAVV60201206-201308

main89990-33410iASV6#,GSV60201608-201707

main89990-33411iASV6#,GSV60201708-201801

main89990-33412iASV6#,GSV60201802

main89990-33420iASV60,GSV60201308-201408

main89990-33440iAVV60201308-201407

main89990-33610iASV60,GSV60201408-201507

main89990-33611iASV6#,GSV60201507-201607

main89990-33630iAVV60201408-201507

89997ANTENNA, ELECTRICAL KEY

main89997-48020iASV60,AVV60,GSV60201206-201507

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iASV60,AVV60,GSV60201206-201507

9011906915

main90119-06915

9017906274

main90179-06274

11 parts on this diagram · 1 diagram in section
