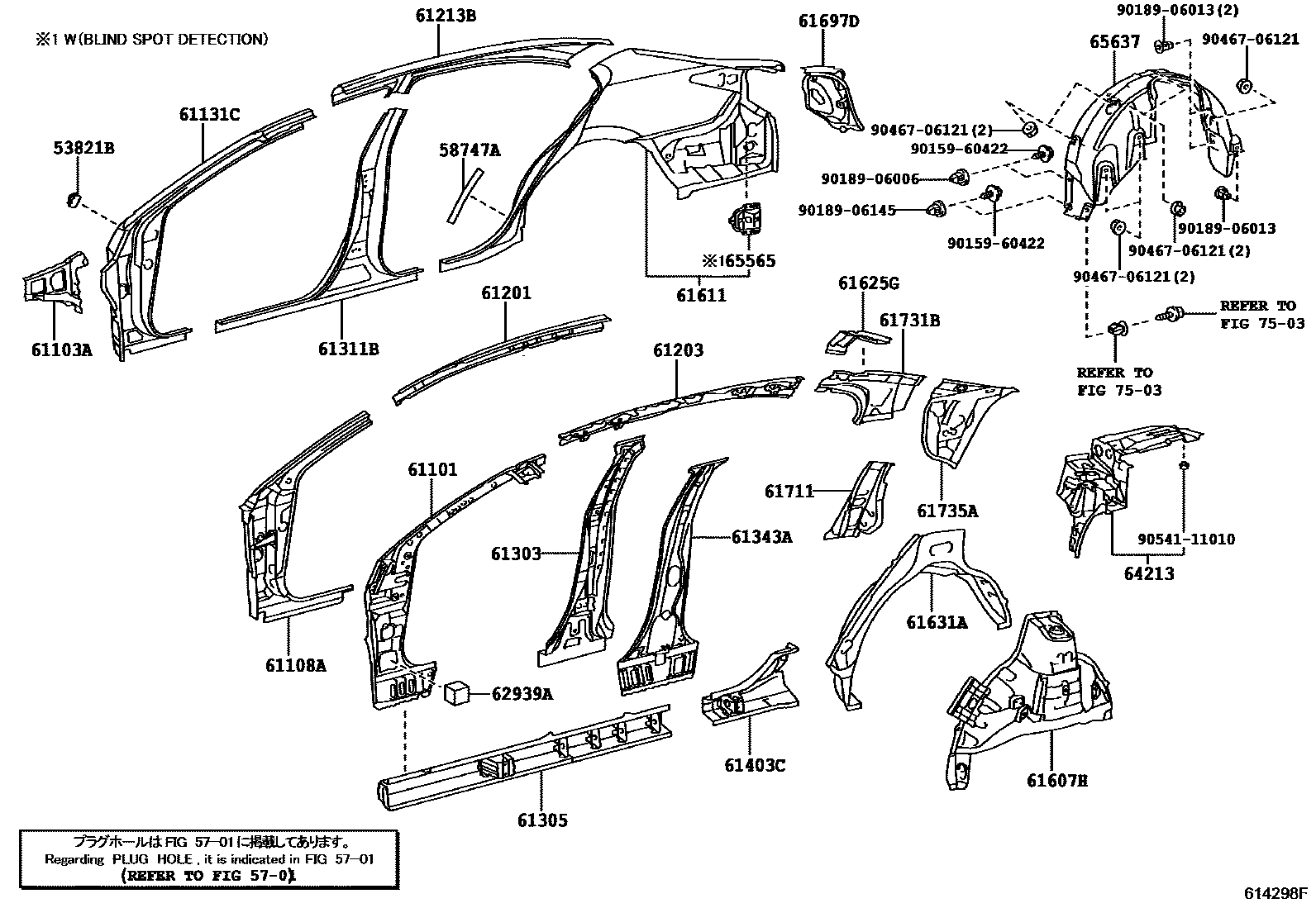

SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
5701HOLE PLUG
58747APROTECTOR, QUARTER PANEL, REAR RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311BPILLAR, CENTER BODY, OUTER RH
61343APILLAR, CENTER BODY, INNER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61697DHOUSING, QUARTER PANEL END, RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
62939ASILENCER, QUARTER VENT
64213EXTENSION, PACKAGE TRAY STRAINER, RH
65565PATCH, SIDE PANEL REAR END, RH
main65565-33030
65637LINER, REAR WHEEL HOUSE, RH
7503SIDE MOULDING
9015960422
main90159-60422
9018906006
main90189-06006
9018906013
main90189-06013
9018906145
main90189-06145
9046706121
main90467-06121
9054111010
main90541-11010
34 parts on this diagram · 2 diagrams in section
