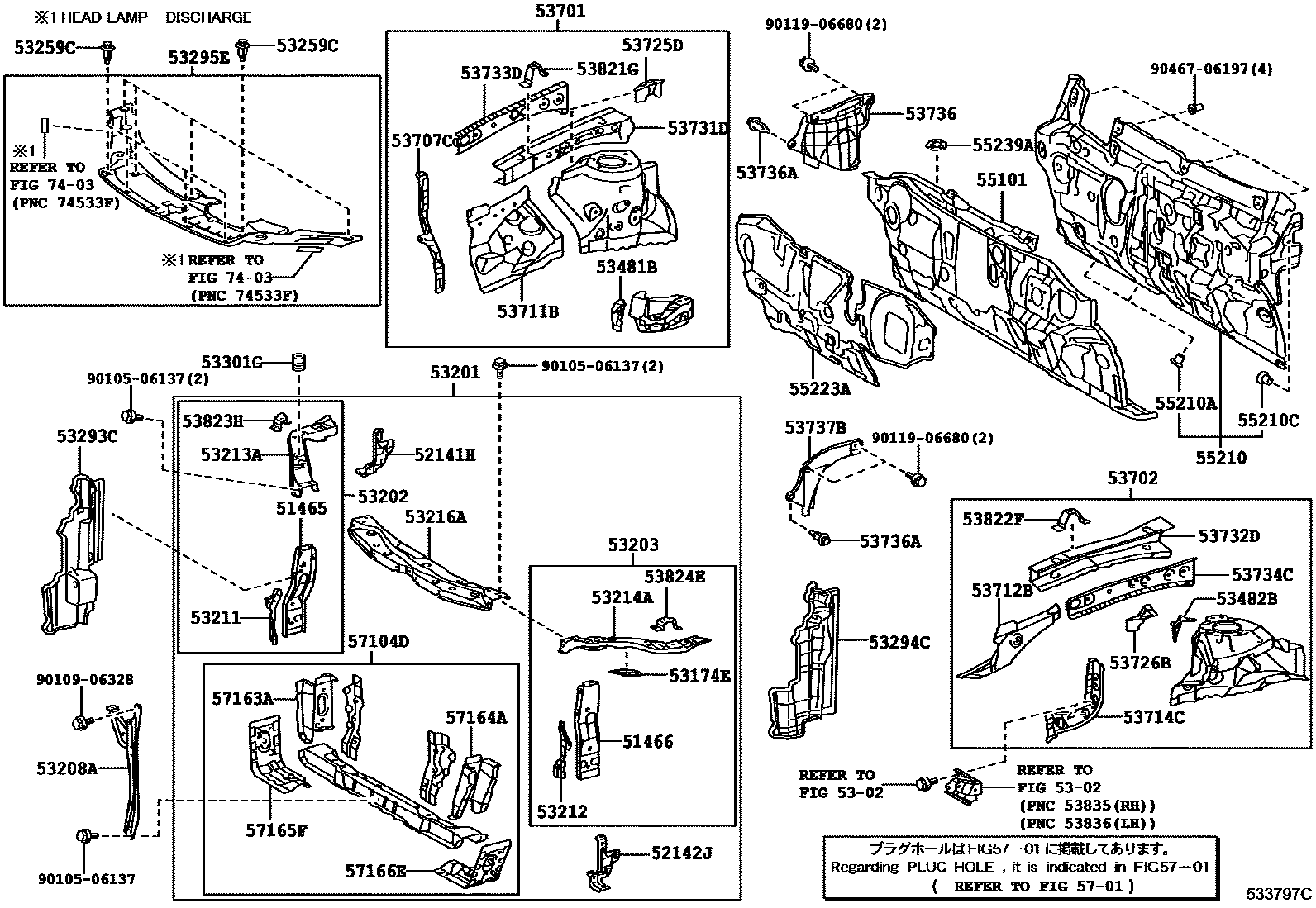

FRONT FENDER APRON & DASH PANEL

51465BRACE, RADIATOR SUPPORT, UPPER RH

main51465-33060iASV6#,GSV60201507

51466BRACE, RADIATOR SUPPORT, UPPER LH

main51466-33070iASV60,AVV60,GSV60201206-201507

52141HARM, FRONT BUMPER, UPPER RH

main52141-33120iASV60,AVV60,GSV60201206-201507

52142JARM, FRONT BUMPER, UPPER LH

main52142-33100iASV60,AVV60,GSV60201206-201507

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53174EBRACKET, RADIATOR SUPPORT SIDE

main53174-33010iASV60,AVV60,GSV60201206-201507

53201SUPPORT SUB-ASSY, RADIATOR

main53201-33190iASV60,AVV60,GSV60201206-201303

main53201-33191iASV60,AVV60,GSV60201304-201507

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-33100iASV60,AVV60,GSV60201206-201303

main53202-33101iASV60,AVV60,GSV60201304-201507

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-33160iASV60,AVV60,GSV60201206-201507

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-33060iASV60,AVV60,GSV60201206-201507

main53208-33070iASV6#,GSV60201507

53211SUPPORT, RADIATOR, RH

main53211-33081iASV60,AVV60,GSV60201206-201507

53212SUPPORT, RADIATOR, LH

main53212-33081iASV60,AVV60,GSV60201206-201507

53213ASUPPORT, RADIATOR, UPPER RH

main53213-33060iASV60,AVV60,GSV60201206-201303

main53213-33061iASV60,AVV60,GSV60201304-201507

53214ASUPPORT, RADIATOR, UPPER LH

main53214-33060iASV60,AVV60,GSV60201206-201507

53216ASUPPORT, RADIATOR, UPPER

main53216-33150iASV60,AVV60,GSV60201206-201507

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07211×9iASV60,AVV60,GSV60201206-201208

main90467-07217×9iASV6#,GSV60201507

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-33100iAVV60201206-201507

main53293-33110iASV60,GSV60201206-201507

main53293-33140iASV6#,GSV60201507

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-33100iAVV60201206-201507

main53294-33110iASV60,GSV60201206-201507

main53294-33150iASV6#,GSV60201507

53295ESEAL, COOL AIR INTAKE DUCT

main53295-33080iASV6#,GSV60201507

main53295-33090supersedes 53295-33080iASV60; AVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL; HEAD LAMP-DISCHARGE & *DRL

53301GCUSHION, HOOD BUMPER

main90541-15033×2iASV60,AVV60,GSV60201206-201507

53481BBRACKET, HOOD SUPPORT, RH

main53481-33050iASV60,AVV60,GSV60201206-201507

53482BBRACKET, HOOD SUPPORT LH

main53482-33040iASV60,AVV60,GSV60201206-201507

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-33180iASV60,AVV60,GSV60201206-201507

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-33140iASV6#,GSV60201507

53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

main53707-33010iASV60,AVV60,GSV60201206-201507

53711BAPRON, FRONT FENDER, FRONT RH

main53711-33080iASV60,AVV60,GSV60201206-201507

53712BAPRON, FRONT FENDER, FRONT LH

main53712-33050iASV60,AVV60,GSV60201206-201507

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-33030iASV60,AVV60,GSV60201206-201501

main53714-33031iASV60,AVV60,GSV60201502-201507

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-33020iASV60,AVV60,GSV60201206-201507

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-33020iASV60,AVV60,GSV60201206-201507

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-33090iASV60,AVV60,GSV60201206-201507

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-33080iASV60,AVV60,GSV60201206-201507

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-33050iASV60,AVV60,GSV60201206-201507

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-33050iASV60,AVV60,GSV60201206-201507

53736SEAL, FRONT FENDER APRON, RH

main53736-33040iASV60,AVV60,GSV60201206-201507

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-08180×2iASV60,AVV60,GSV60201206-201507

53737BSEAL, FRONT FENDER APRON, LH

main53737-33020iASV60,AVV60,GSV60201206-201507

53821GBRACKET, FRONT FENDER, REAR RH

main53821-33060iASV60,AVV60,GSV60201206-201507

53822FBRACKET, FRONT FENDER, REAR LH

main53822-33050iASV6#,GSV60201507

53823HGUSSET, FRONT FENDER, RH

main53823-33040iASV6#,GSV60201507

53824EGUSSET, FRONT FENDER, LH

main53824-33040iASV60,AVV60,GSV60201206-201507

55101PANEL SUB-ASSY, DASH

main55101-33440iASV60,AVV60,GSV60201206-201307

main55101-33441iASV60,AVV60,GSV60201308-201507

main55101-33442iASV6#,GSV60201507

55210INSULATOR ASSY, DASH PANEL

main55210-33241iAVV60201206-201507

main55210-33250iASV60,GSV60201206-201507

main55210-33290iASV6#,GSV60201507-201512

main55210-33291iASV6#,GSV60201601

55210ACLIP

main90467-11127×2iASV60,AVV60,GSV60201206-201507

55210CCLIP

main90467-13079×2iASV60,AVV60,GSV60201206-201507

55223AINSULATOR, DASH PANEL, OUTER

main55223-33190iASV6#,GSV60201507-201512

main55223-33191iASV6#,GSV60201601

main55223-33230iAVV60201206-201507

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-33020×2iASV60,AVV60,GSV60201206-201507

5701HOLE PLUG

→ Go to FIG 57-01

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-33061iASV60,AVV60,GSV60201206-201507

main57104-33062iASV6#,GSV60201610

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-33040iASV60,AVV60,GSV60201206-201507

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-33040iASV60,AVV60,GSV60201206-201507

57165FREINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH

main57165-33021iASV60,AVV60,GSV60201206-201507

57166EREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH

main57166-33031iASV60,AVV60,GSV60201206-201507

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9010506137

main90105-06137

9010906328

main90109-06328

9011906680

main90119-06680

9046706197

main90467-06197

58 parts on this diagram · 1 diagram in section
