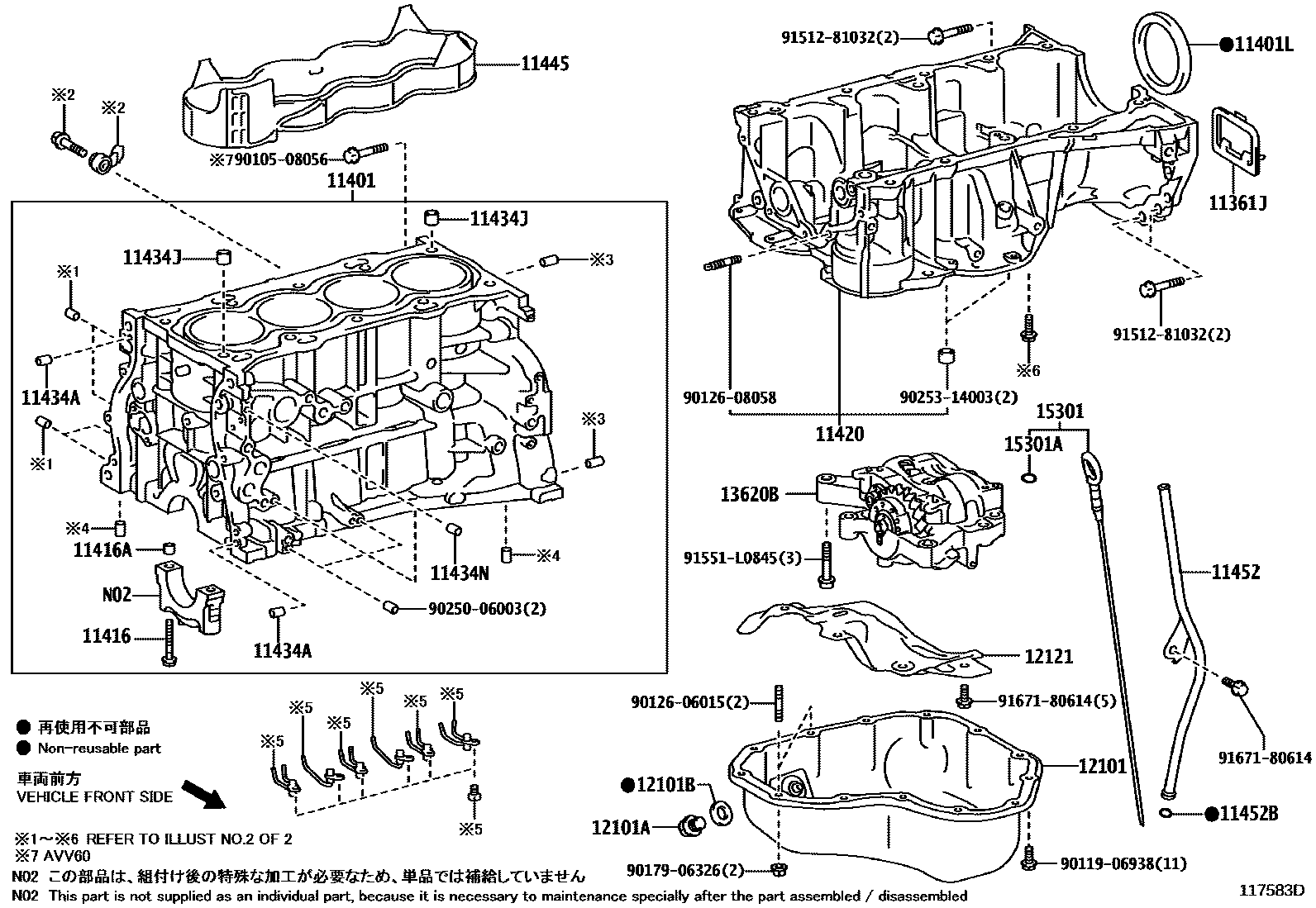

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401BLOCK SUB-ASSY, CYLINDER
11401LSEAL, ENGINE REAR OIL
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=14,OD=6
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J)
(L)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(J)
(L)
12121PLATE, OIL PAN BAFFLE, NO.1
13620BBALANCER ASSY, ENGINE
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
9010508056
main90105-08056
9011906938
main90119-06938
9012606015
main90126-06015
9012608058
main90126-08058
9017906326
main90179-06326
9025006003
main90250-06003
9025314003
main90253-14003
9151281032
main91512-81032
91551L0845
main91551-L0845
9167180614
main91671-80614
29 parts on this diagram · 6 diagrams in section
