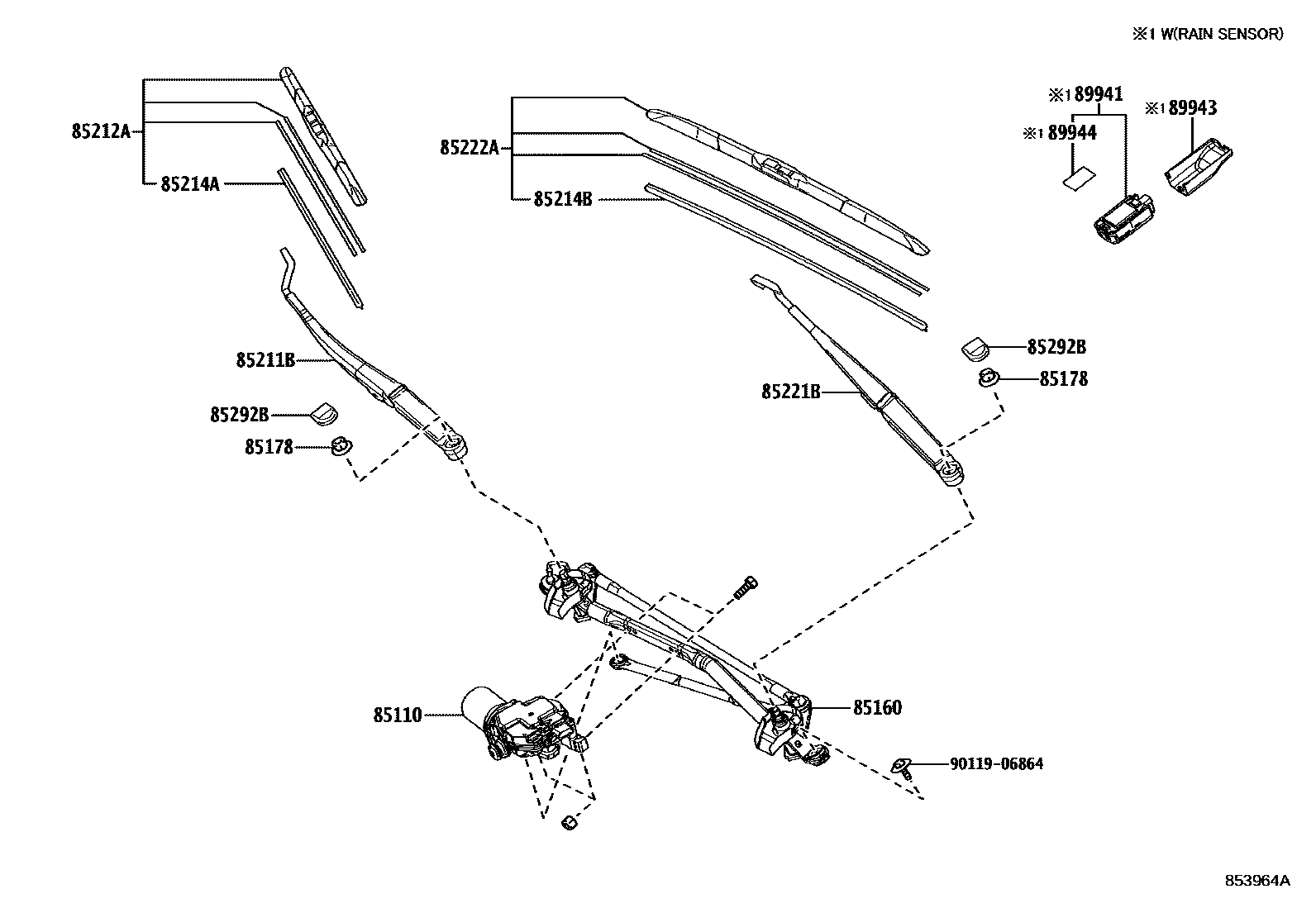

WINDSHIELD WIPER

0001 1 0002 1 0003 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33450iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..LHD201806-202005

main85110-33451iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..LHD202006-202108

main85110-33460iAXZA10,AXZH10..RHD201806-202005

main85110-33461iAXZA10,AXZH10..RHD202108

85160LINK ASSY, WINDSHIELD WIPER

main85150-33340iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..LHD201806-202108

main85150-33341iAXZA10,AXZH10,GSZ10,MXZA10..LHD202108

main85150-33350iAXZA10,AXZH10..RHD202108

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

85211BARM, FRONT WIPER, RH

main85211-33400iAXZA10,AXZH10,GSZ10,MXZA10..LHD202108

main85211-33420iAXZA10,AXZH10..RHD202108

85212ABLADE, FR WIPER, RH

main85212-33280iAXZA10,AXZH10,GSZ10,MXZA10..LHD202108

main85212-33320iAXZA10,AXZH10..RHD202108

85214ARUBBER, WIPER, RH

main85214-33180iAXZA10,AXZH10,GSZ10,MXZA10..LHD202108

main85214-52110iAXZA10,AXZH10..RHD202108

85214BRUBBER, WIPER, LH

main85214-33180iAXZA10,AXZH10..RHD201806-202110

main85214-52110iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..LHD201806-202108

85221BARM, FRONT WIPER, LH

main85221-33400iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..LHD201806-202108

main85221-33420iAXZA10,AXZH10..RHD202108

85222ABLADE, FR WIPER, LH

main85222-33320iAXZA10,AXZH10,GSZ10,MXZA10..LHD202108

main85222-33330iAXZA10,AXZH10..RHD202108

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

89941SENSOR, RAIN

main89941-11010iAXZH10..ARL,IND201807-202110

main89941-33060iAXZA10..EUR; AXZA10..RHD202008-202108

SPECIAL PACKAGE&WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-33070iAXZH10..ARL,IND201807-202110

89944TAPE, RAIN SENSOR

main89944-42020iAXZH10..ARL,IND201807-202110

9011906864

main90119-06864

14 parts on this diagram · 3 diagrams in section
