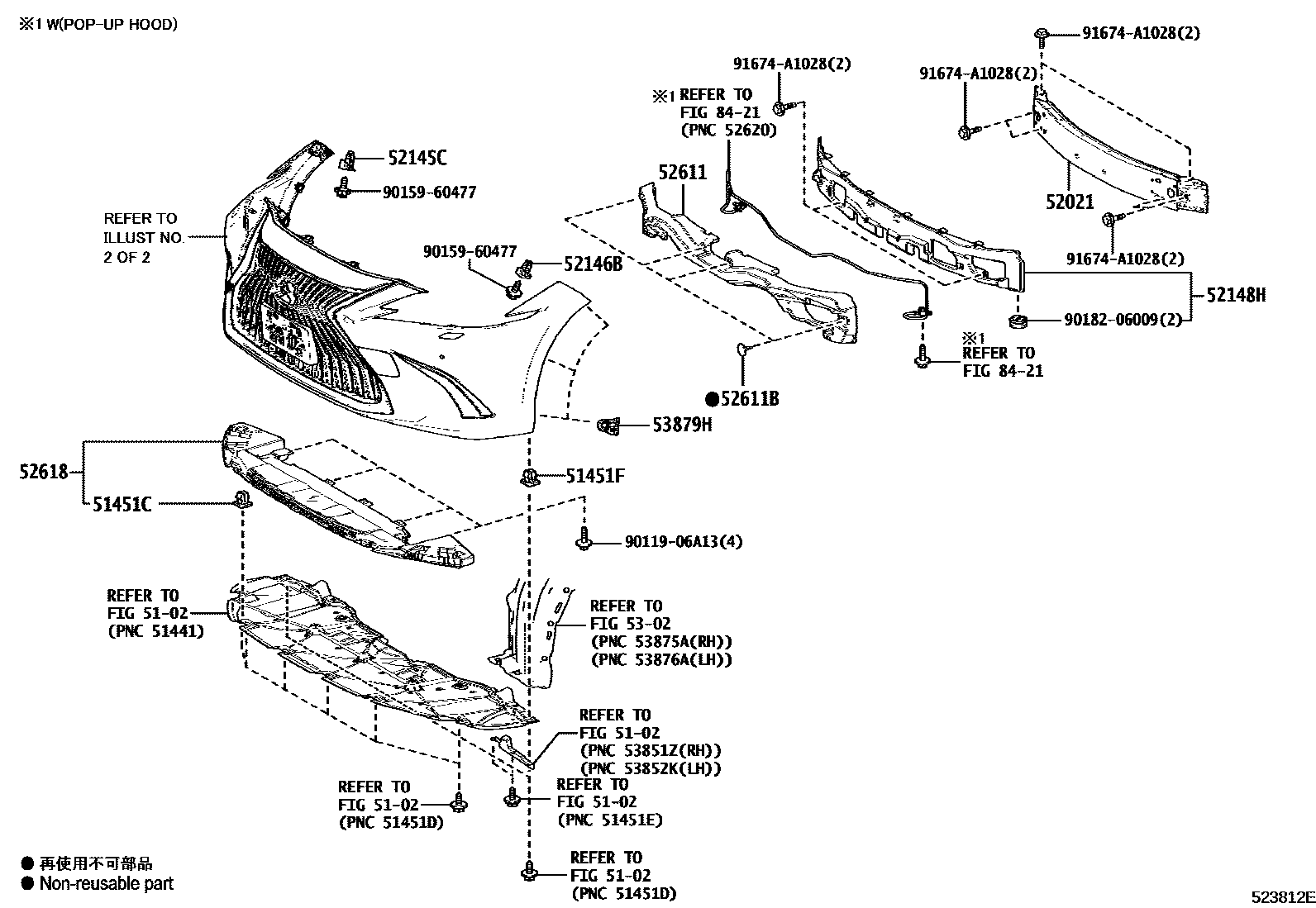

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451CGROMMET(FOR ENGINE UNDER COVER)

main90189-06237iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

51451FGROMMET, NO.1

main90189-06237iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-33240iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-33110iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-33110iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

52148HBRACKET, FRONT BUMPER MOUNTING, NO.2

main52148-33040iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

main52148-33041iASZ10,AXZA10,AXZH10,GSZ10,MXZA10202004-202008

52611ABSORBER, FRONT BUMPER ENERGY

main52611-33330iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-07049iASZ10..CHI202004-202007

main90467-07049-23iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

BLACK

52618ABSORBER, FRONT BUMPER, LOWER

main52618-33080iASZ10,AXZH10..ARL,CHI201806-202108

main52618-33090iAXZA10;MXZA10..CHI;ASZ10,AXZH10,GSZ10..EUR,GCC,GEN,IND201806-202110

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53879HRETAINER, FRONT FENDER LINER

main53879-33030iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

8421AIR BAG

→ Go to FIG 84-21

9011906A13

main90119-06A13

9015960477

main90159-60477

9018206009

main90182-06009

91674A1028

main91674-A1028

17 parts on this diagram · 3 diagrams in section
