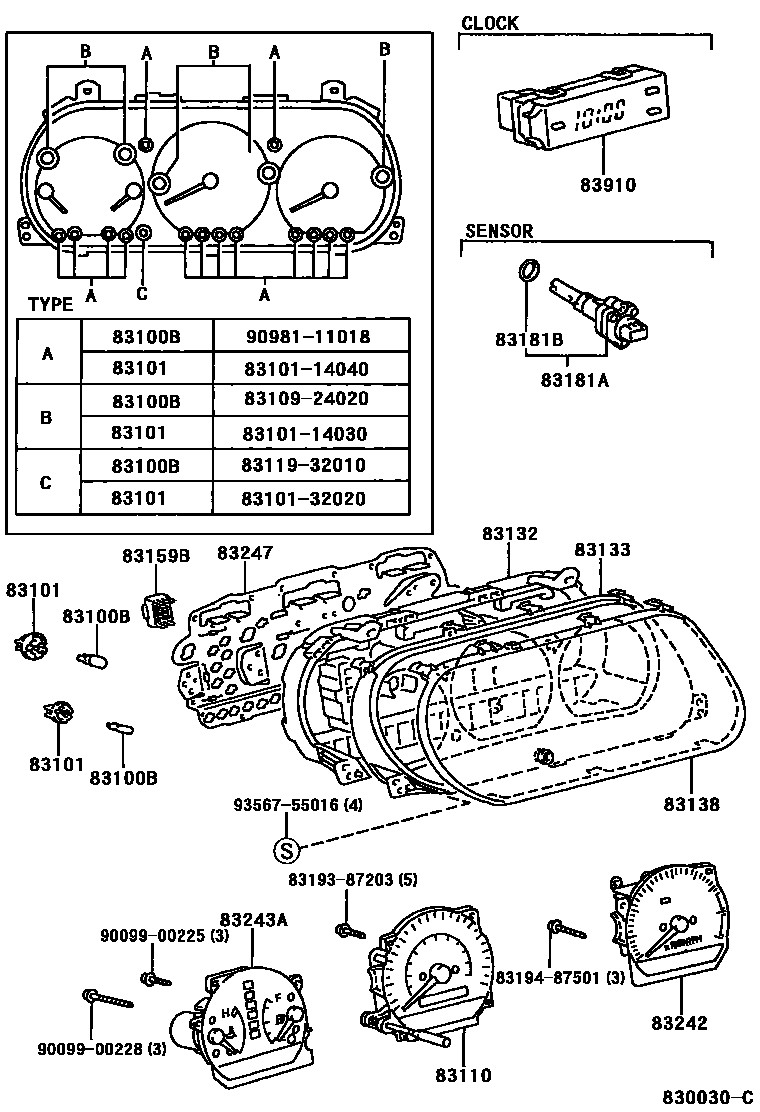

METER
83100BBULB, COMBINATION METER, NO.1
12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION
14V 3.0W,TYPE C:REFER TO ILLUSTRATION
12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION
83101SOCKET SUB-ASSY, COMBINATION METER BULB
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
83110SPEEDOMETER ASSY
220KM/H
220KM/H
140MPH(220KM/H)
140MPH(220KM/H)
220KM/H,CHINA SPEC
240KM/H
240KM/H
150MPH(240KM/H)
150MPH(240KM/H)
83133PLATE, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83159BRELAY ASSY, METER
83181BRING, O (FOR SPEEDOMETER SENSOR)
83242TACHOMETER ASSY, ENGINE
W/O(THEFT-DETERRENT SYSTEM)
W/O(THEFT-DETERRENT SYSTEM & TRACTION CONTROL)
W(TRACTION CONTROL)
W/O(THEFT-DETERRENT SYSTEM)
83243AGAUGE SUB-ASSY, FUEL RECEIVER
W/O(THEFT-DETERRENT SYSTEM)
CHINA SPEC
83247PLATE, METER CIRCUIT
W/O(THEFT-DETERRENT SYSTEM & TRACTION CONTROL); W/O(THEFT-DETERRENT SYSTEM)
W/O(THEFT-DETERRENT SYSTEM)
W/O(TRACTION CONTROL)
W/O(THEFT-DETERRENT SYSTEM)
83910CLOCK ASSY
8319387203
main83193-87203
8319487501
main83194-87501
9009900225
main90099-00225
9009900228
main90099-00228
9356755016
main93567-55016
18 parts on this diagram · 1 diagram in section
