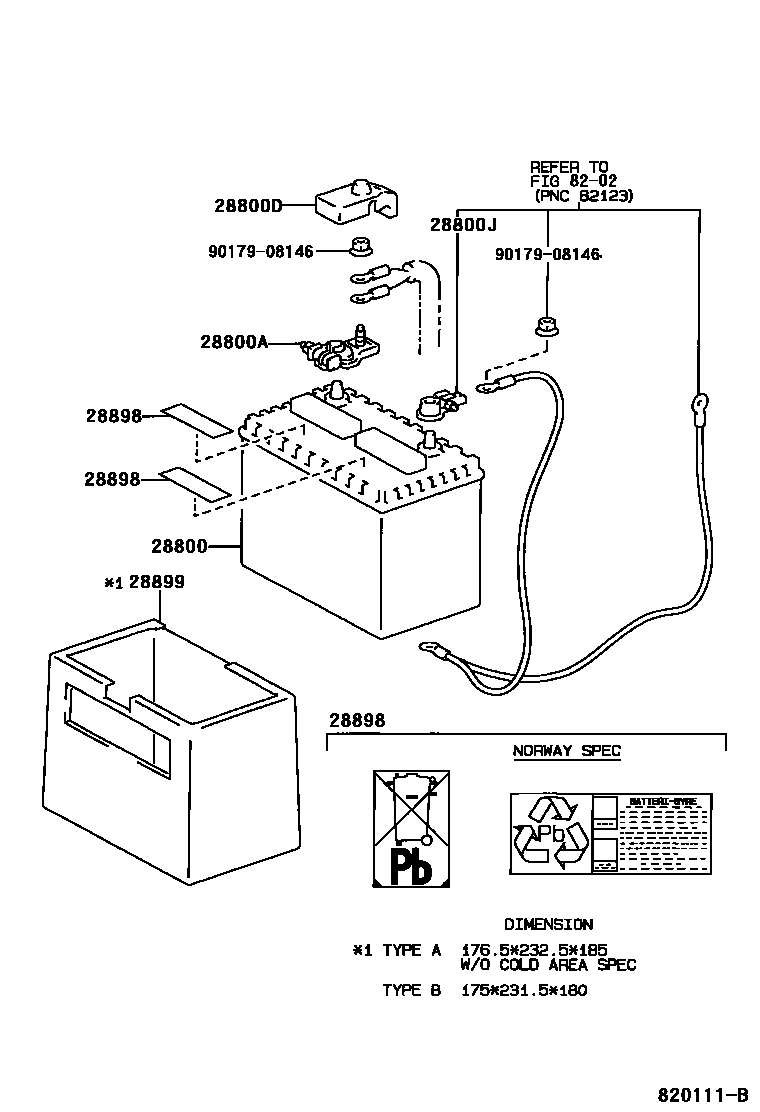

BATTERY & BATTERY CABLE

28800BATTERY

main28800-42031i1MZFE,5SFE..MCV20,SXV20199608-199712

55D23L

main28800-42042i1MZFE,5SFE..MCV20,SXV20200103

55D23L,YUASA

main28800-64010i1MZFE,5SFE..MCV20,SXV20199712

55D23L,GS

main28800-74141i1MZFE,5SFE..MCV20,SXV20199608-199610

80D26L

main28800-74142i1MZFE,5SFE..MCV20,SXV20199610

80D26L,MATSUSHITA

main28800-76090i1MZFE,5SFE..MCV20,SXV20200103

55D23L,MATSUSHITA

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i1MZFE,5SFE..MCV20,SXV20199608-200109

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i1MZFE,5SFE..MCV20,SXV20199608-200109

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i1MZFE,5SFE..MCV20,SXV20199608

28898PLATE, BATTERY

main28898-46010i1MZFE,5SFE..MCV20,SXV20..LHD199608

NORWAY SPEC

main28898-46020i1MZFE,5SFE..MCV20,SXV20199908

28899INSULATOR, BATTERY

main28899-46060i1MZFE..MCV20199608-199908

TYPE A:REFER TO ILLUSTRATION

main28899-64110i1MZFE..MCV20199608-199908

TYPE B:REFER TO ILLUSTRATION

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
