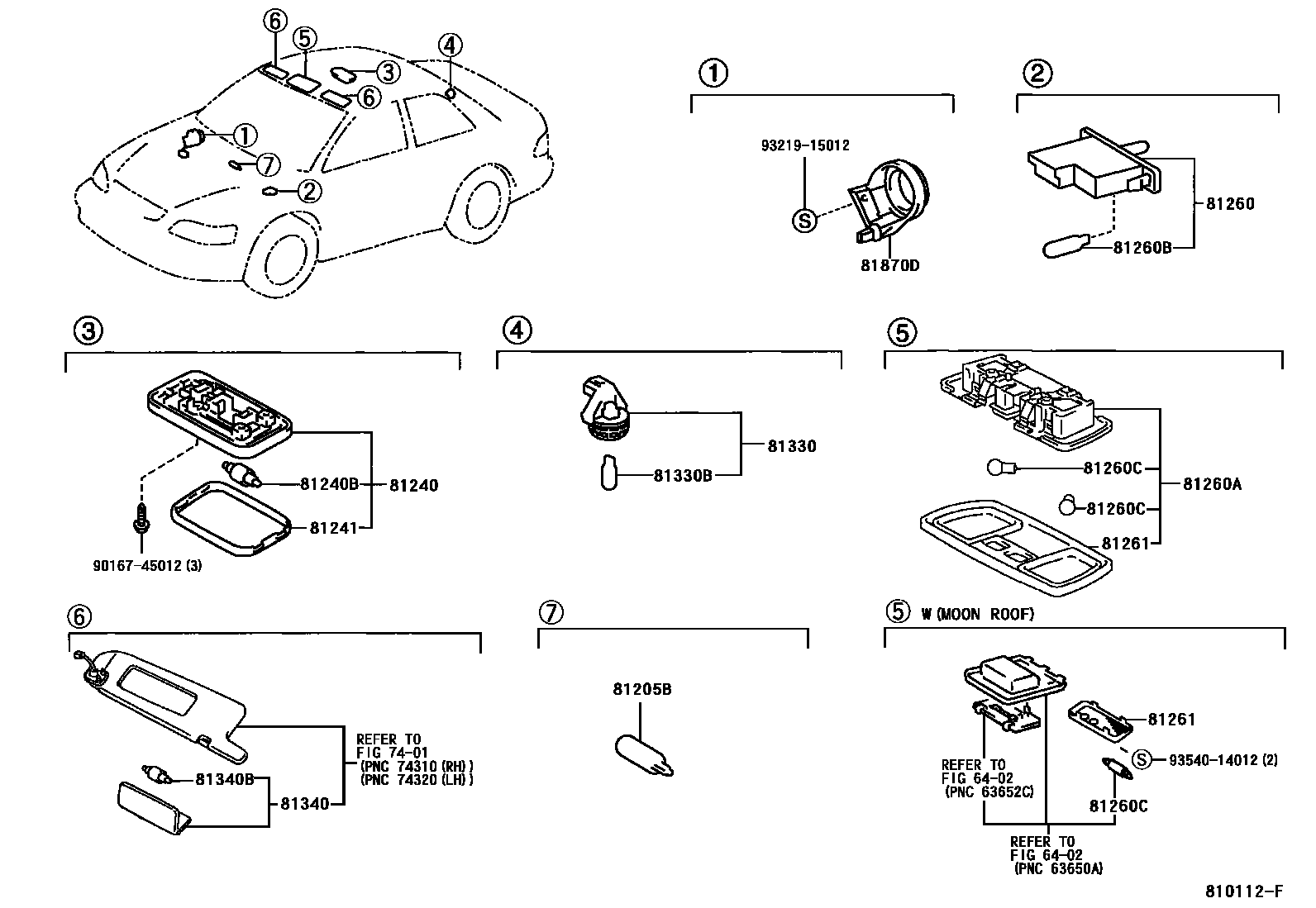

INTERIOR LAMP

0001 1 0002 1

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

7401ARMREST & VISOR

→ Go to FIG 74-01

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014iMCV20,SXV20199608

14V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-32031-A1iMCV20,SXV20199608

IVORY,TRIM4#

main81240-32031-B2iMCV20,SXV20199608

LT.GRAY,TRIM1#

main81240-32031-G1iMCV20,SXV20199608

SAGE,TRIM6#

81240BBULB, ROOM LAMP, NO.1

main90981-14004iMCV20,SXV20199608

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-32031iMCV20,SXV20199608

81260LAMP ASSY, GLOVE BOX

main81260-33030iMCV20,SXV20199608

81260ALAMP ASSY, MAP

main81260-22180-A1iMCV20,SXV20199908

IVORY,TRIM4#

main81260-22180-B2iMCV20,SXV20199908

LT.GRAY,TRIM1#

main81260-22180-G0iMCV20,SXV20199908

SAGE,TRIM6#

main81260-32081-A1iMCV20,SXV20199608-199908

IVORY,TRIM4#

main81260-32081-B1iMCV20,SXV20199608-199908

LT.GRAY,TRIM1#

main81260-32081-G1iMCV20,SXV20199608-199908

SAGE,TRIM6#

81260BBULB(FOR GLOVE BOX)

main90981-11018iMCV20,SXV20199608

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90084-98049iMCV20,SXV20199608

12V 8W,W(MOON ROOF)

main90981-12020×2iMCV20,SXV20199608

12V 8W

81261LENS AND COVER, MAP LAMP

main81231-AA010iMCV20,SXV20199608

W(MOON ROOF)

main81261-32081-A1iMCV20,SXV20199608

IVORY,TRIM4#

main81261-32081-B3iMCV20,SXV20199608

LT.GRAY,TRIM1#

main81261-32081-G1iMCV20,SXV20199608

SAGE,TRIM6#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iMCV20,SXV20199608

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iMCV20,SXV20199608

12V 3.8W

81340LAMP ASSY, VANITY

main81340-33090-A0iMCV20,SXV20199608

TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM4#,LH

main81340-33090-B0iMCV20,SXV20199608

TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1#,LH

main81340-33090-G0iMCV20,SXV20199608

TYPE A:REFER TO ILLUSTRATION,SAGE,TRIM6#,LH

main81350-33040-A0iMCV20,SXV20199608

TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM4#,RH

main81350-33040-B0iMCV20,SXV20199608

TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1#,RH

main81350-33040-G0iMCV20,SXV20199608

TYPE A:REFER TO ILLUSTRATION,SAGE,TRIM6#,RH

main81350-AC030-A0×2iMCV20,SXV20..LHD200008

TYPE B:REFER TO ILLUSTRATION,IVORY,TRIM4#

main81350-AC030-B2×2iMCV20,SXV20..LHD200008

TYPE B:REFER TO ILLUSTRATION,LIGHT GRAY,TRIM1#

main81350-AC030-G0×2iMCV20,SXV20..LHD200008

TYPE B:REFER TO ILLUSTRATION,SAGE,TRIM6#

81340BBULB (FOR VANITY LAMP)

main90084-98013×2iMCV20,SXV20..LHD200008

TYPE B:REFER TO ILLUSTRATION

main90981-14003×2iMCV20,SXV20199608

12V 1.5W,TYPE A:REFER TO ILLUSTRATION

81870DLAMP ASSY, KEY CYLINDER

main81871-33030iMCV20,SXV20199608-200008

9016745012

main90167-45012

9321915012

main93219-15012

9354014012

main93540-14012

19 parts on this diagram · 2 diagrams in section
