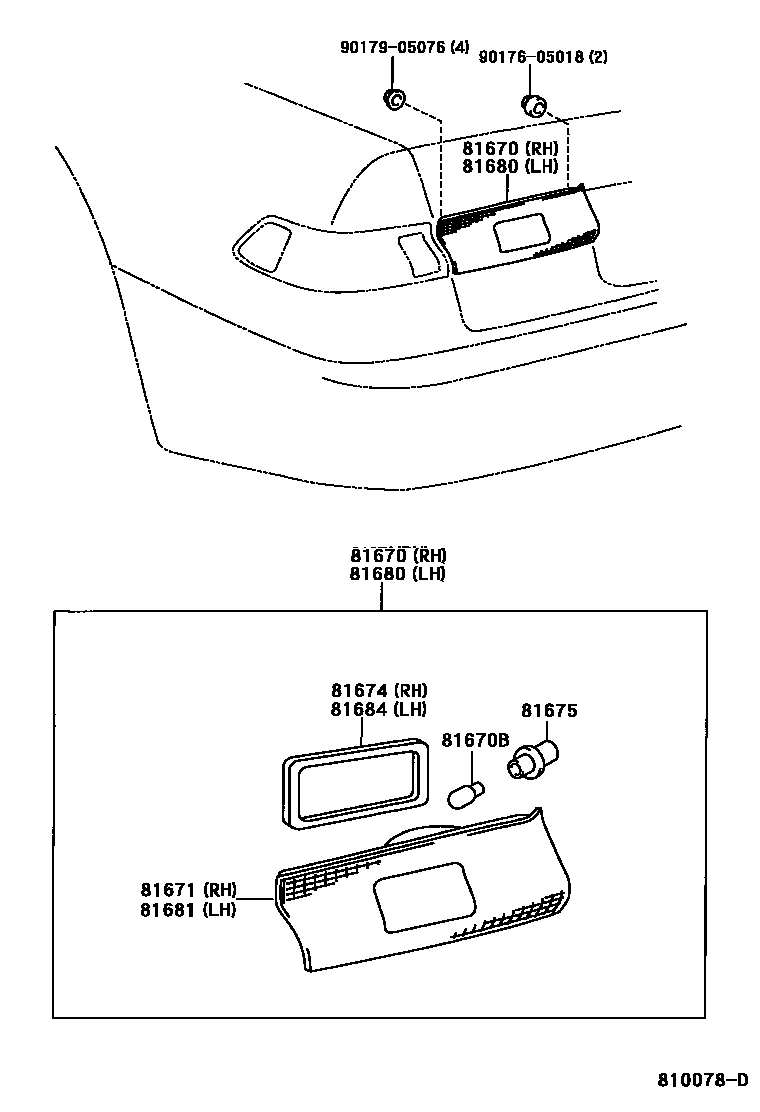

BACK UP LAMP

0001 1 0002 1

81670LAMP ASSY, BACK-UP, RH

main81580-33010iMCV20,SXV20..RHD199608-199908

W(REAR FOG LAMP)

main81580-33070iMCV20,SXV20..RHD199908

W(REAR FOG LAMP)

main81670-33050iSXV20..LHD..MTM;MCV20,SXV20..ATM199908

main81670-33090iMCV20,SXV20..LHD199608-199808

81670BBULB(FOR BACK-UP LAMP)

main90981-13043×2iMCV20,SXV20199608-199908

12V 21W

81671LENS, BACK-UP LAMP, RH

main81581-33010iMCV20,SXV20..RHD199608-199908

W(REAR FOG LAMP)

main81581-33070iMCV20,SXV20..RHD199908

W(REAR FOG LAMP)

main81671-33012iSXV20..LHD..MTM;MCV20,SXV20..ATM199908

main81671-33090iMCV20,SXV20..LHD199608-199808

81674GASKET, BACK-UP LAMP BODY, RH

main81674-33012iMCV20,SXV20199908

main81674-33090iMCV20,SXV20199608-199908

81675SOCKET & WIRE, BACK-UP LAMP

main90075-60001iMCV20,SXV20199608-199908

W(REAR FOG LAMP),RH OR LH

main90075-60003iMCV20,SXV20199608-199908

W(BACK UP LAMP),RH OR LH

81680LAMP ASSY, BACK UP, LH

main81590-33010iMCV20,SXV20..LHD199608-199908

W(REAR FOG LAMP)

main81590-33070iMCV20,SXV20..LHD199908

W(REAR FOG LAMP)

main81680-33040iMCV20,SXV20199908

main81680-33090iMCV20,SXV20..RHD199608-199610

81681LENS, BACK-UP LAMP, LH

main81591-33010iMCV20,SXV20..LHD199608-199908

W(REAR FOG LAMP)

main81591-33070iMCV20,SXV20..LHD199908

W(REAR FOG LAMP)

main81681-33040iMCV20,SXV20199908

main81681-33090iMCV20,SXV20..RHD199608-199610

81684GASKET, BACK UP LAMP BODY, LH

main81674-33012iMCV20,SXV20199908

main81674-33090iMCV20,SXV20199608-199908

9017605018

main90176-05018

9017905076

main90179-05076

10 parts on this diagram · 2 diagrams in section
