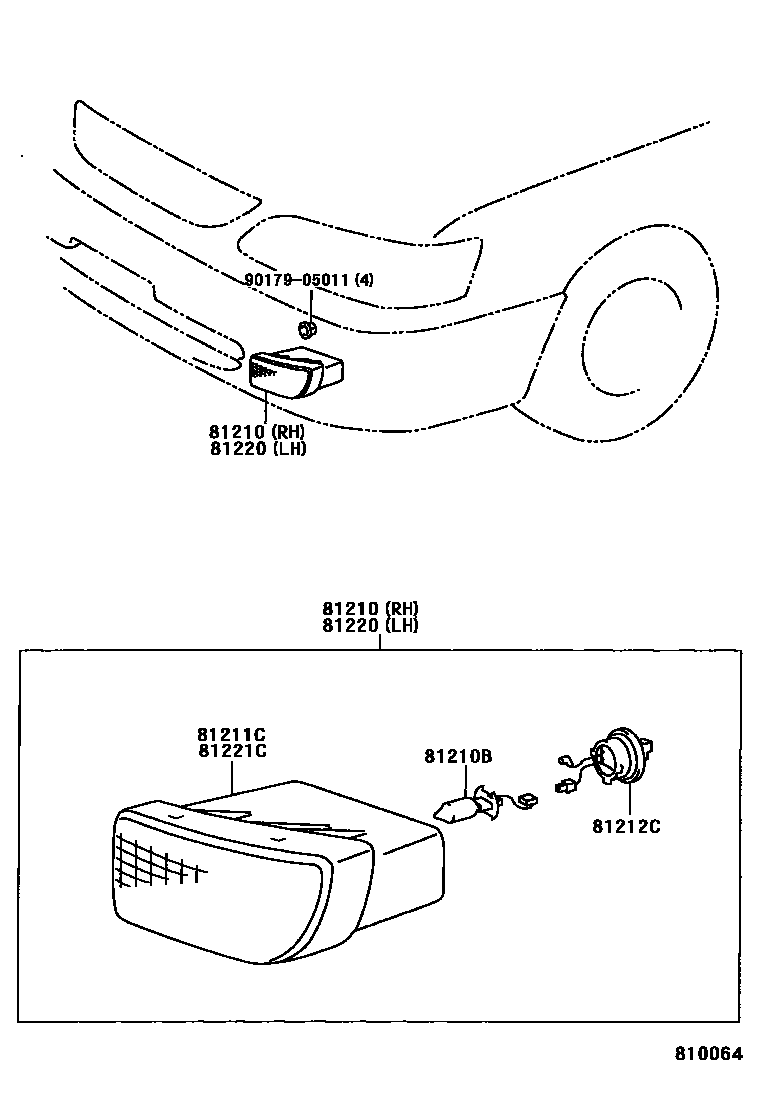

FOG LAMP

0001 1 0002 1

81210LAMP ASSY, FOG

main81210-33060iMCV20,SXV20199608-199908

main81210-33120iMCV20,SXV20199908

81210BBULB, FOG LAMP

main90981-13018×2iMCV20,SXV20199608

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-33070iMCV20,SXV20199608-199908

main81211-33120iMCV20,SXV20199908

81212CCOVER, FOG LAMP

main90075-66001iMCV20,SXV20199608-199908

81220LAMP ASSY, FOG, LH

main81220-33060iMCV20,SXV20199608-199908

main81220-33120iMCV20,SXV20199908

81221CLAMP UNIT, FOG LAMP, LH

main81221-33070iMCV20,SXV20199608-199908

main81221-33120iMCV20,SXV20199908

9017905011

main90179-05011

7 parts on this diagram · 2 diagrams in section
