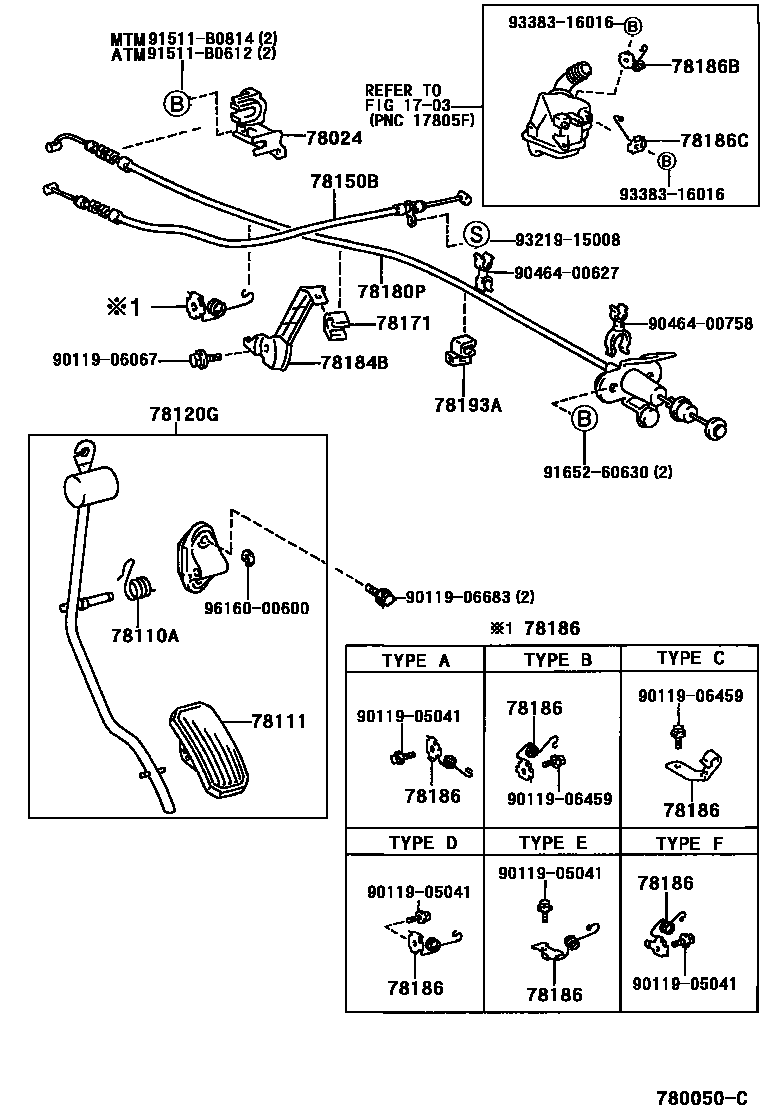

ACCELERATOR LINK
1703AIR CLEANER
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
CHILE SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
UPPER
LOWER
78111PEDAL, ACCELERATOR
78120GROD ASSY, ACCELERATOR PEDAL
CHINA SPEC OR MIDDLE SOUTH AMERICA SPEC OR VENEZUELA SPEC
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
W(CRUISE CONTROL)
78171BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH
78180PCABLE ASSY, ACCELERATOR CONTROL
CENTRAL AMERICA SPEC & W(CRUISE CONTROL) OR SOUTH AMERICA SPEC & W(CRUISE CONTROL);SINGAPORE SPEC & W(CRUISE CONTROL); W(CRUISE CONTOROL)
CHILE SPEC & W(CRUISE CONTROL);CENTRAL AMERICA SPEC & W(CRUISE CONTROL) OR SOUTH AMERICA SPEC & W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(CRUISE CONTOROL)
W(CRUISE CONTOROL)
78184BBRACKET, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
TYPE D:REFER TO ILLUSTRATION
TYPE E:REFER TO ILLUSTRATION
TYPE F:REFER TO ILLUSTRATION
78186BSUPPORT, ACCELERATOR CONTROL CABLE NO.2
78186CSUPPORT, ACCELERATOR CONTROL CABLE NO.3
78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3
9011905041
main90119-05041
9011906067
main90119-06067
9011906459
main90119-06459
9011906683
main90119-06683
9046400627
main90464-00627
9046400758
main90464-00758
91511B0612
main91511-B0612
91511B0814
main91511-B0814
9165260630
main91652-60630
9321915008
main93219-15008
9338316016
main93383-16016
9616000600
main96160-00600
25 parts on this diagram · 2 diagrams in section
