BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53704-33010iMCV20,SXV20199608-199808

main53704-33011iMCV20,SXV20199808

74404ACLAMP SUB-ASSY, BATTERY

main74404-33050iMCV20;SXV20..LHD199908-200109

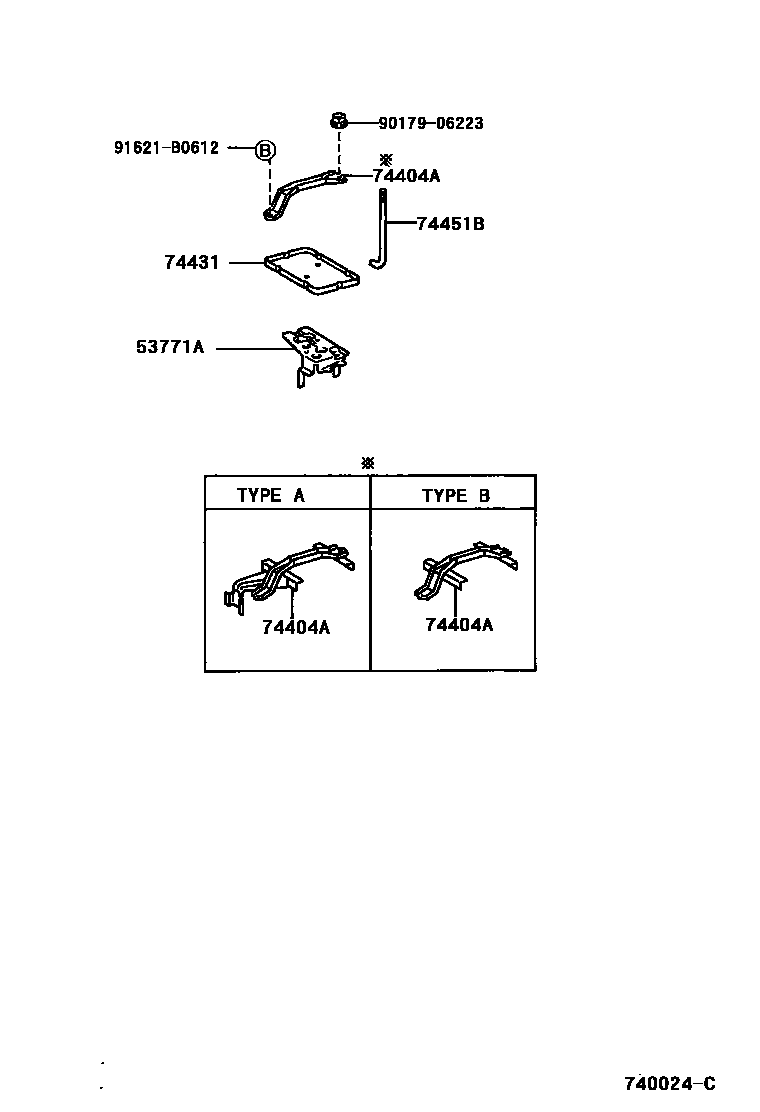

TYPE A:REFER TO ILLUSTRATION

main74404-33060iMCV20,SXV20..RHD199608-200109

TYPE B:REFER TO ILLUSTRATION

main74404-33080iSXV20..LHD..ATM199703-199908

W(COOL AIR INTAKE)

74431TRAY, BATTERY

main74431-33010iMCV20,SXV20199608-199611

main74431-33011iMCV20,SXV20199611-200109

74451BBOLT, BATTERY CLAMP

main74452-33010iMCV20,SXV20199608-200109

9017906223

main90179-06223

91621B0612

main91621-B0612

6 parts on this diagram · 1 diagram in section
