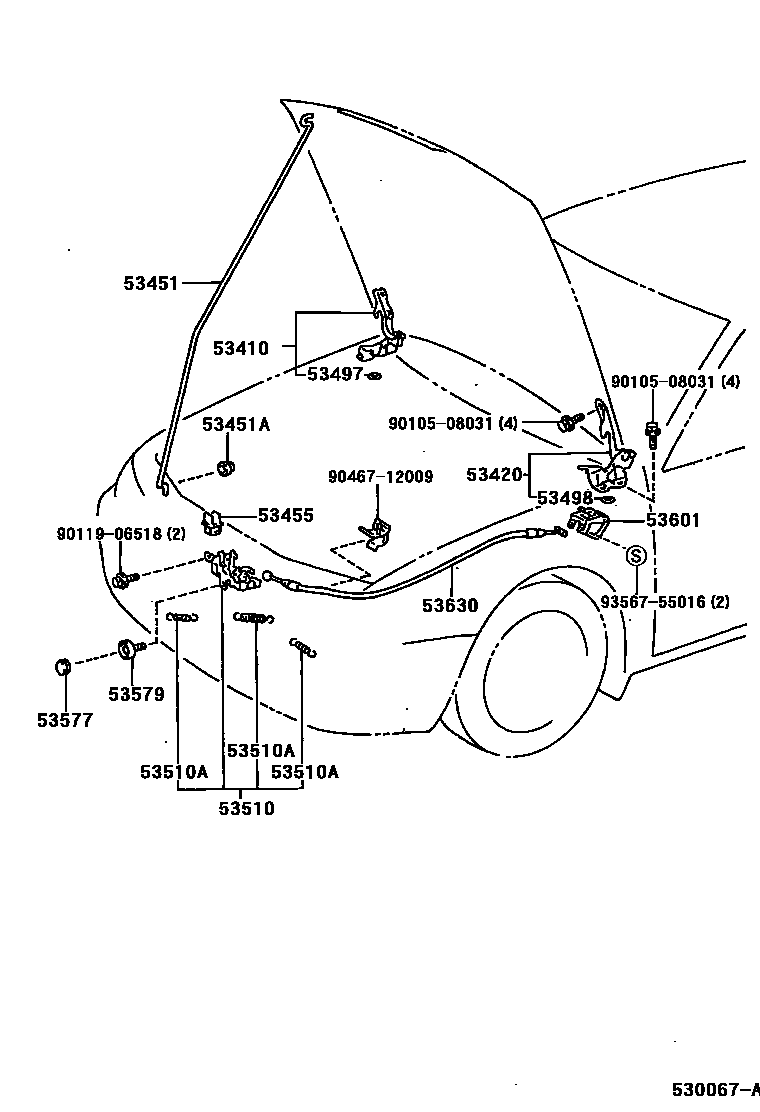

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-33030iMCV20,SXV20199608-199908

main53410-33070iMCV20,SXV20199908

53420HINGE ASSY, HOOD, LH

main53420-33030iMCV20,SXV20199608-199908

main53420-33070iMCV20,SXV20199908

53451ROD, HOOD SUPPORT

main53451-33010iMCV20,SXV20199608-199908

53451AGROMMET(FOR HOOD SUPPORT ROD)

main53454-33010iMCV20,SXV20199608-199908

53455CLAMP, HOOD SUPPORT ROD

main53455-12080iMCV20,SXV20199608-199611

main53455-33010iMCV20,SXV20199611-199707

main53455-33011iMCV20,SXV20199707-199908

53497PAD, HOOD HINGE, NO.1

main53497-12070×2iMCV20,SXV20199608-199710

T=0.5

main53497-20070×2iMCV20,SXV20199710-199711

T=2.0

53498PAD, HOOD HINGE, NO.2

main53497-12050×4iMCV20,SXV20199802

main53497-12060×2iMCV20,SXV20199711-199802

RH

main53497-12070×2iMCV20,SXV20199608-199710

T=0.5

main53497-20070×4iMCV20,SXV20199711

T=2.0

main53498-12060×2iMCV20,SXV20199711-199802

LH

53510LOCK ASSY, HOOD

main53510-33070iMCV20,SXV20..LHD199608-199908

main53510-33110iMCV20,SXV20..RHD199608-199908

main53510-33130iMCV20,SXV20..LHD199908

main53510-33170iMCV20,SXV20..RHD199908

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iMCV20,SXV20..LHD199608

WD=0.9,CW=21

main90506-09057iMCV20,SXV20..RHD199608

WD=0.9,CW=23

main90506-12067iMCV20,SXV20..LHD199608-199612

WD=1.4,CW=7.25

main90506-14064iMCV20,SXV20..RHD199608-199612

WD=1.4,CW=7.25

main90506-20065iMCV20,SXV20..RHD199608

WD=2.0,CW=16.0

main90506-20066iMCV20,SXV20..LHD199608

WD=2.0,CW=17

53577BOLT, HOOD LOCK

main53577-33010iMCV20,SXV20199608

53579CAP, HOOD LOCK NUT

main53579-50010iMCV20,SXV20199608

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-33020-C0iMCV20,SXV20199608

BLACK,TRIM1#,4#,6#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-33100iMCV20,SXV20199608-199705

main53630-33130iMCV20,SXV20..LHD199705

9010508031

main90105-08031

9011906518

main90119-06518

9046712009

main90467-12009

9356755016

main93567-55016

17 parts on this diagram · 2 diagrams in section
