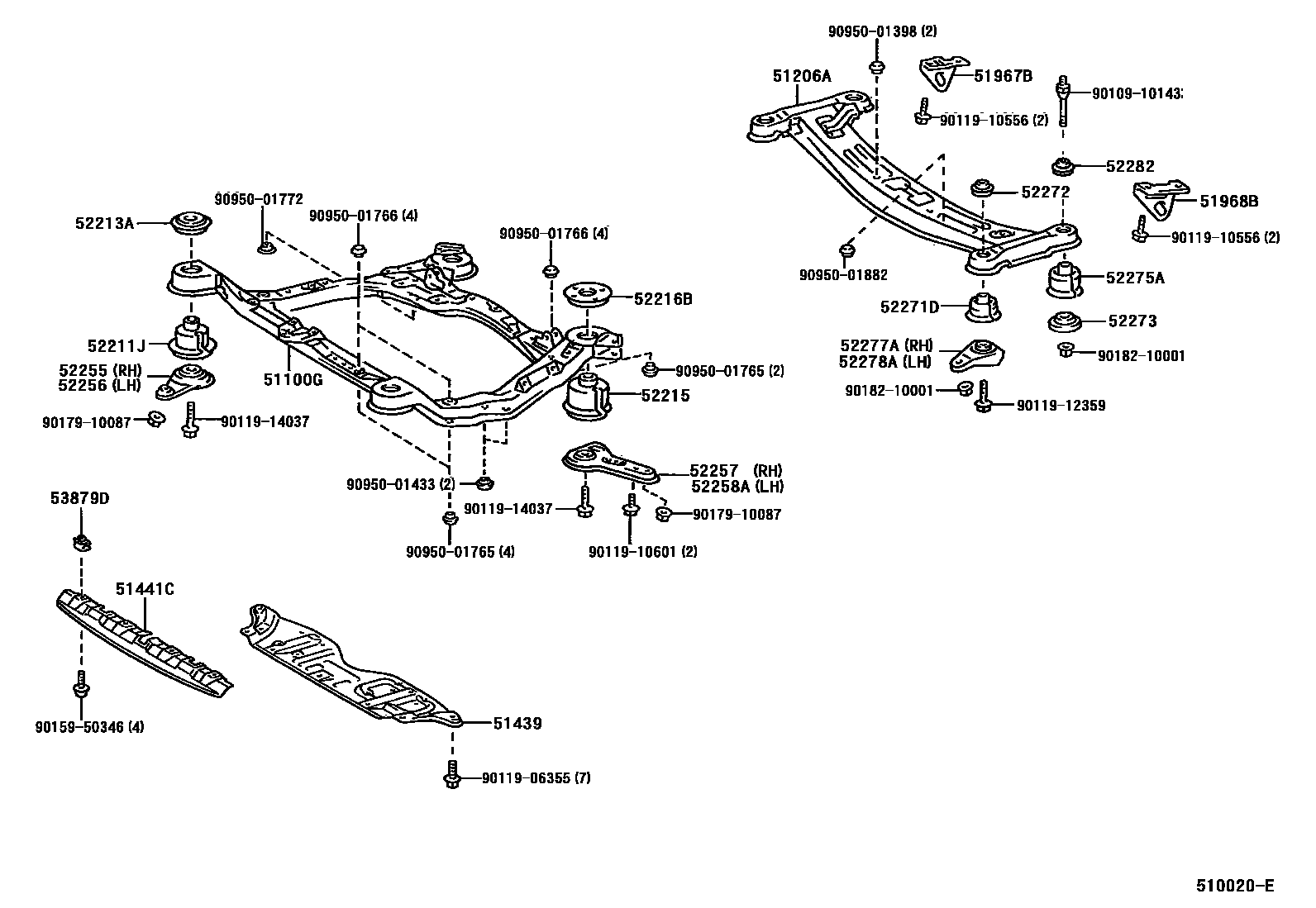

SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-33030iMCV20,SXV20199608-199906

main51100-33050iMCV20,SXV20199906

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33020iMCV20,SXV20199608-199710

main51206-33021iMCV20,SXV20199710-199808

main51206-33022iMCV20,SXV20199808-199901

main51206-33040iMCV20,SXV20199901

51439PLATE, ENGINE REAR SIDE SHUTTER

main51439-33020iMCV20,SXV20199608

51441CCOVER, ENGINE UNDER, RH

main51441-33030iMCV20,SXV20..LHD199610-199908

51967BHOOK, TRANSPORT, REAR RH

main51967-33020iMCV20,SXV20199608

51968BHOOK, TRANSPORT, REAR LH

main51968-33010iMCV20,SXV20199608

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33030×2iMCV20,SXV20199608

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33030×2iMCV20,SXV20199608

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33030×2iMCV20,SXV20199608

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33020×2iMCV20,SXV20199608

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-33020iMCV20,SXV20199608

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-33020iMCV20,SXV20199608

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33010iMCV20,SXV20199608

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33010iMCV20,SXV20199608

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-33010×2iMCV20,SXV20199608

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-33010×2iMCV20,SXV20199608

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-32010×2iMCV20,SXV20199608-200107

main52273-33010×2iMCV20,SXV20200107-200109

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33030×2iMCV20,SXV20199608

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52203-33010iMCV20,SXV20199608-200107

main52203-33020iMCV20,SXV20200107-200109

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52204-33010iMCV20,SXV20199608-200107

main52204-33020iMCV20,SXV20200107-200109

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-33030×2iMCV20,SXV20199608

53879DRETAINER, FRONT FENDER LINER

main53879-20020×4iMCV20,SXV20..LHD199610-199908

9010910143

main90109-10143

9011906355

main90119-06355

9011910556

main90119-10556

9011910601

main90119-10601

9011912359

main90119-12359

9011914037

main90119-14037

9015950346

main90159-50346

9017910087

main90179-10087

9018210001

main90182-10001

9095001398

main90950-01398

9095001433

main90950-01433

9095001765

main90950-01765

9095001766

main90950-01766

9095001772

main90950-01772

9095001882

main90950-01882

37 parts on this diagram · 1 diagram in section
