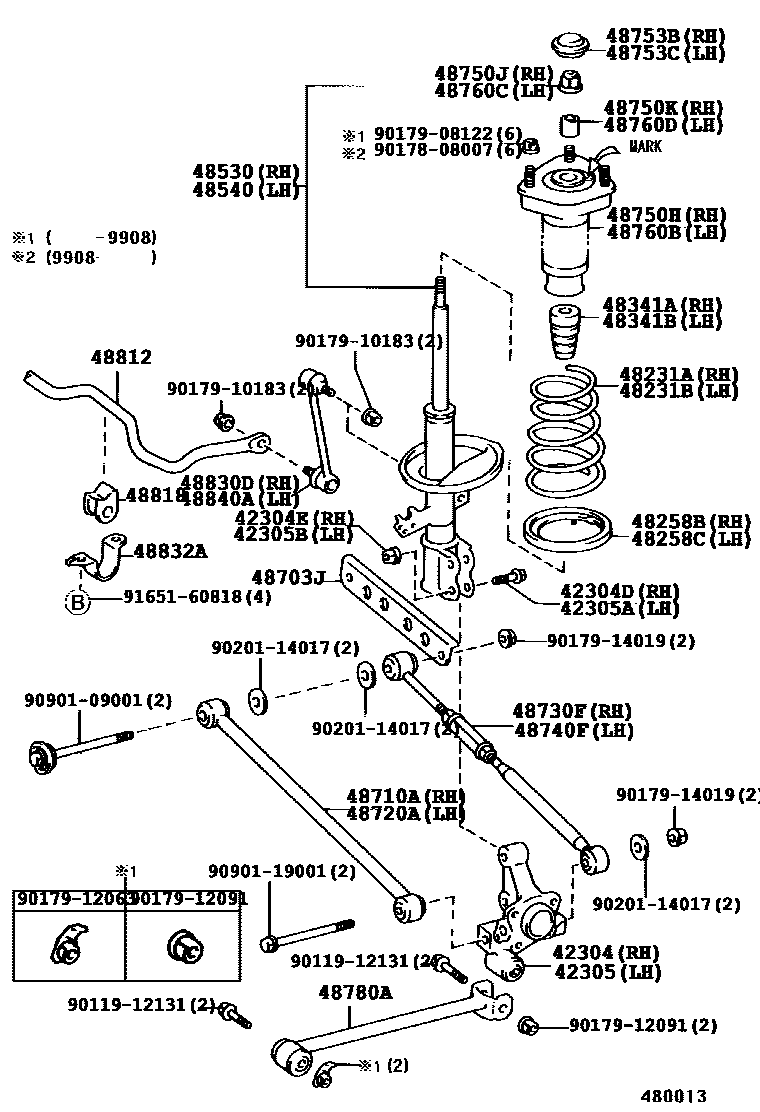

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304DBOLT (FOR REAR AXLE CARRIER RH)
42304ENUT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
42305ABOLT (FOR REAR AXLE CARRIER LH)
42305BNUT (FOR REAR AXLE CARRIER LH)
48231ASPRING, COIL, REAR RH
HONG KONG SPEC
W/O(TEMS)
BRAZIL SPEC
YELLOW & PINK PAINTED
PURPLE PAINTED
YELLOW & BLUE PAINTED
YELLOW PAINTED
GREEN PAINTED
48231BSPRING, COIL, REAR LH
HONG KONG SPEC
W/O(TEMS)
BRAZIL SPEC
YELLOW & PINK PAINTED
PURPLE PAINTED
YELLOW & BLUE PAINTED
YELLOW PAINTED
GREEN PAINTED
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
HONG KONG SPEC;LATIN AMERICA SPEC(UNLEADED);BRAZIL SPEC;LATIN AMERICA SPEC(LEADED); HONG KONG SPEC;SINGAPORE SPEC
W/O(TEMS)
CHILE SPEC;LATIN AMERICA SPEC(UNLEADED); CHILE SPEC;LATIN AMERICA SPEC(UNLEADED);BRAZIL SPEC; HONG KONG SPEC;LATIN AMERICA SPEC(UNLEADED); HONG KONG SPEC;LATIN AMERICA SPEC(UNLEADED);SINGAPORE SPEC
48540ABSORBER ASSY, SHOCK, REAR LH
HONG KONG SPEC;LATIN AMERICA SPEC(UNLEADED);BRAZIL SPEC;LATIN AMERICA SPEC(LEADED); HONG KONG SPEC;SINGAPORE SPEC
W/O(TEMS)
CHILE SPEC;LATIN AMERICA SPEC(UNLEADED); CHILE SPEC;LATIN AMERICA SPEC(UNLEADED);BRAZIL SPEC; HONG KONG SPEC;LATIN AMERICA SPEC(UNLEADED); HONG KONG SPEC;LATIN AMERICA SPEC(UNLEADED);SINGAPORE SPEC
48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
MARK=WHITE OR YELLOW
MARK=BLUE OR GREEN OR PINK
MARK=GREEN OR PINK
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
MARK=PINK OR WHITE
MARK=BROWN OR GREEN OR YELLOW
MARK=GREEN OR YELLOW
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48780AROD ASSY, STRUT, REAR
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9011912131
main90119-12131
9017808007
main90178-08007
9017908122
main90179-08122
9017910183
main90179-10183
9017912063
main90179-12063
9017912091
main90179-12091
9017914019
main90179-14019
9020114017
main90201-14017
9090109001
main90901-09001
9090119001
main90901-19001
9165160818
main91651-60818
44 parts on this diagram · 1 diagram in section
