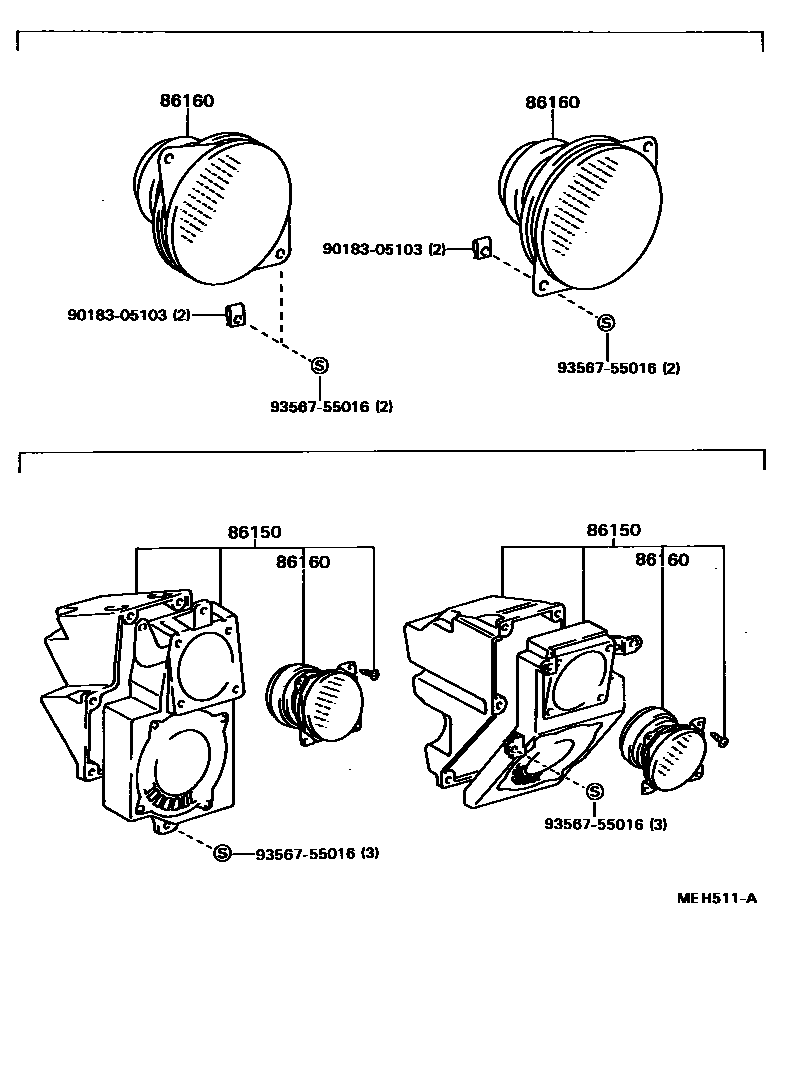

SPEAKER

0001 1FRONT 0002 1REAR

86150SPEAKER ASSY, W/BOX, NO.1

main86150-32080iCV20..RHD..XL; SV21..WG..RHD198908-199106

FRONT,RH

main86150-32090iCV20..RHD..XL; SV21..WG..RHD198908-199106

FRONT,LH

main86150-32120iCV20,SV21..WG..LHD; SV21..WG..RHD; VZV21..WG;CV20..RHD..XL198908-199106

REAR,RH

main86150-32130iCV20,SV21..WG..LHD; SV21..WG..RHD; VZV21..WG;CV20..RHD..XL198908-199106

REAR,LH

main86150-32160iCV20,SV21..WG..LHD; VZV21..WG198908-199106

FRONT,RH

main86150-32170iCV20,SV21..WG..LHD198808-198908

FRONT,LH

86160SPEAKER ASSY, FRONT NO.1

main86160-12280×2iCV20,SV2#198908-199106

main86160-32130×2iCV20..RHD; SV2#,VZV21..RHD198908-199002

BOX SPEAKER

main86160-32190×2iCV20,SV2#..LHD;VZV21..SED..LHD; VZV21..WG198908-199106

BOX SPEAKER

9018305103

main90183-05103

9356755016

main93567-55016

4 parts on this diagram · 2 diagrams in section
