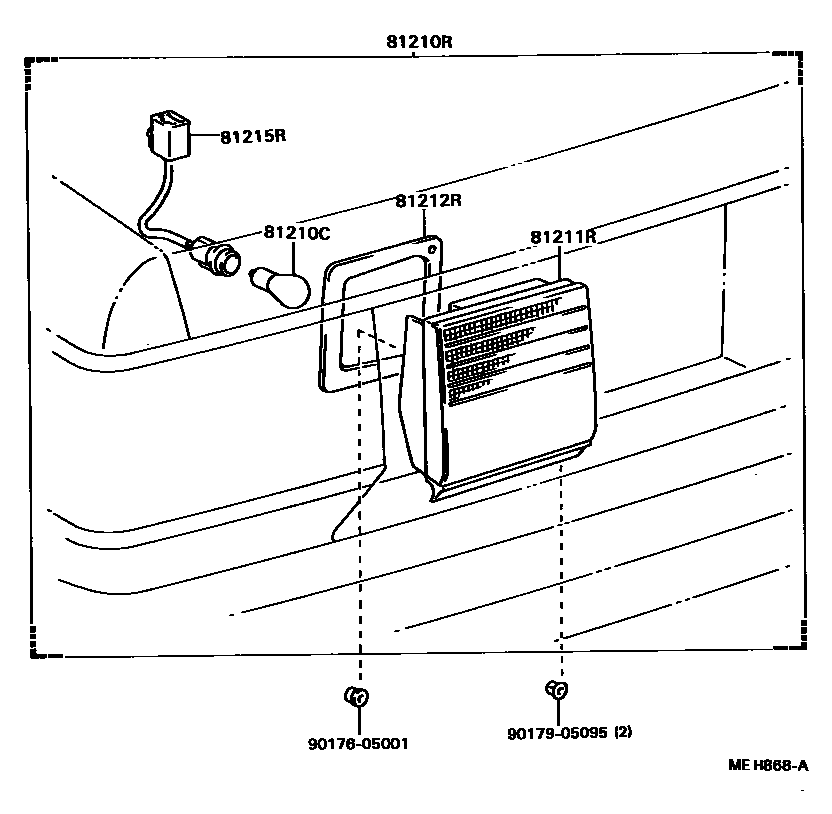

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main99132-11210iCV20,SV2#,VZV21..SED198808-199106

12V 21W

81210RLAMP ASSY, REAR FOG

main81210-32020iCV20,SV2#,VZV21..SED..RHD198808-199106

main81220-32020iCV20,SV2#,VZV21..SED..LHD198808-199106

81211RLENS, REAR FOG LAMP

main81211-32020iCV20,SV2#,VZV21..SED..RHD198808-199106

main81221-32020iCV20,SV2#,VZV21..SED..LHD198808-199106

81212RGASKET, REAR FOG LAMP, NO.1

main81272-32060iCV20,SV2#,VZV21..SED198808-199106

81215RSOCKET & WIRE, REAR FOG LAMP

main81215-32020iCV20,SV2#,VZV21..SED198808-199106

9017605001

main90176-05001

9017905095

main90179-05095

7 parts on this diagram · 1 diagram in section
