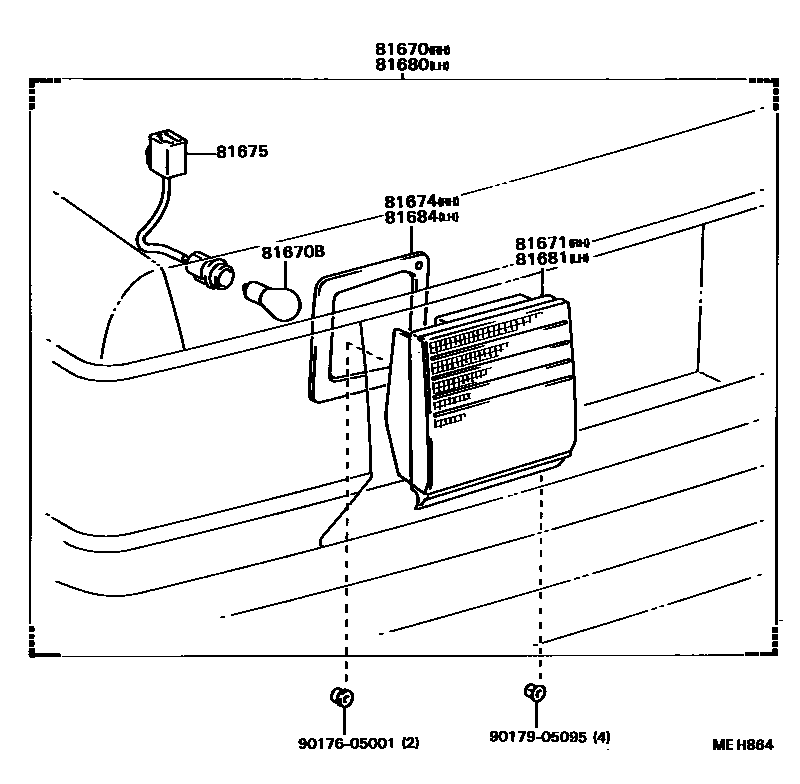

BACK UP LAMP

0001 1 0002 1

81670LAMP ASSY, BACK-UP, RH

main81670-32010iCV20,SV2#,VZV21..SED..LHD198808-199106

main81670-32020iCV20,SV21,VZV21..WG..LHD198808-199106

main81670-32030iCV20,SV21..WG..RHD198808-199106

81670BBULB(FOR BACK-UP LAMP)

main99132-11210iCV20,SV2#,VZV21..SED; CV20,SV21,VZV21..WG198808-199106

12V 21W

81671LENS, BACK-UP LAMP, RH

main81671-32010iCV20,SV2#,VZV21..SED..LHD198808-199106

main81671-32020iCV20,SV21,VZV21..WG..LHD198808-199106

main81671-32030iCV20,SV21..WG..RHD198808-199106

81674GASKET, BACK-UP LAMP BODY, RH

main81272-32060iCV20,SV2#,VZV21..SED..LHD198808-199106

main81674-32020iCV20,SV21,VZV21..WG198808-199106

81675SOCKET & WIRE, BACK-UP LAMP

main81675-32010iCV20,SV2#,VZV21..SED198808-199106

main81675-32020iCV20,SV21,VZV21..WG198808-199106

RH

main81685-32020iCV20,SV21,VZV21..WG198808-199106

LH

81680LAMP ASSY, BACK UP, LH

main81680-32010iCV20,SV2#,VZV21..SED..RHD198808-199106

main81680-32020iCV20,SV21,VZV21..WG..LHD198808-199106

main81680-32030iCV20,SV21..WG..RHD198808-199106

81681LENS, BACK-UP LAMP, LH

main81681-32010iCV20,SV2#,VZV21..SED..RHD198808-199106

main81681-32020iCV20,SV21,VZV21..WG..LHD198808-199106

main81681-32030iCV20,SV21..WG..RHD198808-199106

81684GASKET, BACK UP LAMP BODY, LH

main81272-32060iCV20,SV2#,VZV21..SED..RHD198808-199106

main81674-32020iCV20,SV21,VZV21..WG198808-199106

9017605001

main90176-05001

9017905095

main90179-05095

10 parts on this diagram · 2 diagrams in section
