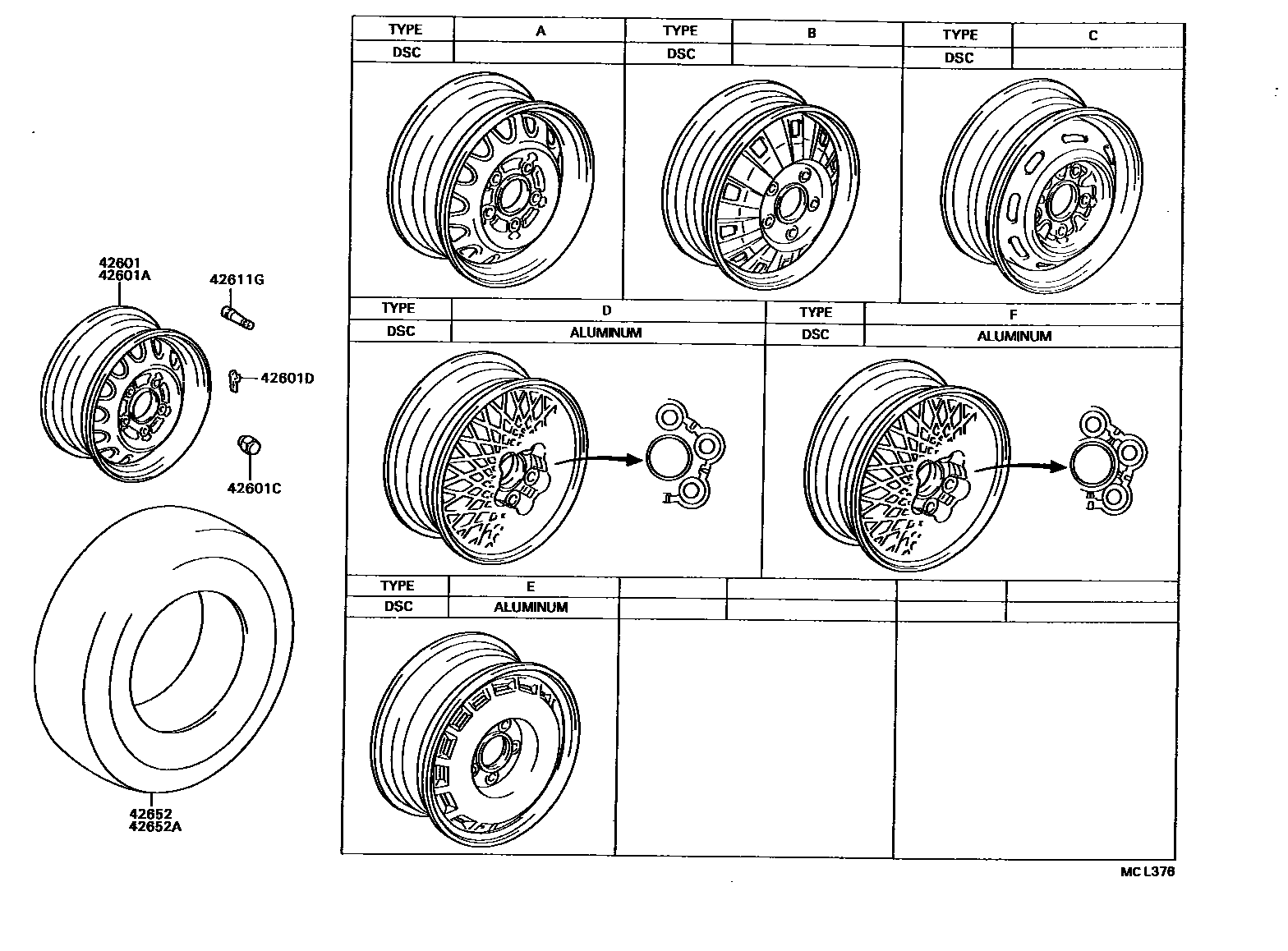

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5.5JJ,TYPE B,SILVER,040 ,176 ,185 ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE B,SILVER,040 ,167 ,173 ,3H4 ,4K1 ,6H8 ,8D8 ,8E3
14X5.5JJ,TYPE B,SILVER,040 ,167 ,173 ,3H4 ,4K1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE C,DARK SILVER M,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8D8 ,8E3
14X5.5JJ,TYPE C,DARK SILVER M,040 ,167 ,173 ,3H4 ,4K1 ,6H8 ,8D8 ,8E3
14X5.5JJ,TYPE C,DARK SILVER M,040 ,167 ,185 ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE C,DARK SILVER M,040 ,176 ,185 ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE C,DARK SILVER M,040 ,176 ,185 ,20S ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE C,DARK SILVER M,040 ,167 ,173 ,3H4 ,4K1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE C,DARK SILVER M,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8G2 ,8G5
15X5.5JJ,ALUMINUM,TYPE E
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8G5
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,176 ,185 ,20S ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,176 ,185 ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8G2 ,8G5
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,167 ,173 ,3H4 ,4K1 ,6H8 ,8G2 ,8G5
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8D8 ,8E3
14X5.5JJ,TYPE D
14X5.5JJ,TYPE F
42601AWHEEL, DISC (FOR SPARE)
14X5.5JJ,TYPE B,SILVER,040 ,176 ,185 ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE B,SILVER,040 ,167 ,173 ,3H4 ,4K1 ,6H8 ,8D8 ,8E3
14X5.5JJ,TYPE B,SILVER,040 ,167 ,173 ,3H4 ,4K1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE C,DARK SILVER M,040 ,167 ,173 ,3H4 ,4K1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE C,DARK SILVER M,040 ,167 ,173 ,3H4 ,4K1 ,6H8 ,8D8 ,8E3
14X5.5JJ,TYPE C,DARK SILVER M,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8D8 ,8E3
14X5.5JJ,TYPE C,DARK SILVER M,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE C,DARK SILVER M,040 ,176 ,185 ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE C,DARK SILVER M,040 ,176 ,185 ,20S ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE C,DARK SILVER M,040 ,167 ,185 ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
15X5.5JJ,ALUMINUM,TYPE E
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8D8 ,8E3
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8G2 ,8G5
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,167 ,173 ,3H4 ,4K1 ,6H8 ,8G2 ,8G5
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,167 ,173 ,29H ,3H4 ,4K1 ,6H8 ,8G5
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,176 ,185 ,20S ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
15X5.5JJ,TYPE A,LIGHT GRAY,040 ,176 ,185 ,3J9 ,4J1 ,6H8 ,8G2 ,8G5
14X5.5JJ,TYPE D
14X5.5JJ,TYPE F
42601CNUT, HUB (FOR AXLE)
W(15INCHES ALUMINUM WHEEL)
W(14INCHES ALUMINUM WHEEL)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
15G
25G
35G
45G
55G
65G
75G
10G,W(ALUMINUM WHEEL)
15G,W(ALUMINUM WHEEL)
20G,W(ALUMINUM WHEEL)
25G,W(ALUMINUM WHEEL)
30G,W(ALUMINUM WHEEL)
35G,W(ALUMINUM WHEEL)
40G,W(ALUMINUM WHEEL)
45G,W(ALUMINUM WHEEL)
50G,W(ALUMINUM WHEEL)
55G,W(ALUMINUM WHEEL)
60G,W(ALUMINUM WHEEL)
65G,W(ALUMINUM WHEEL)
70G,W(ALUMINUM WHEEL)
75G,W(ALUMINUM WHEEL)
80G,W(ALUMINUM WHEEL)
5G
5G,W(ALUMINUM WHEEL)
7.5G,T=7.5
12.5G,T=7.5
17.5G,T=9.5
22.5G,T=9.5
27.5G,T=9.5
32.5G,T=9.5
37.5G,T=9.5
7.5G,T=6.1,W(ALUMINUM WHEEL)
7.5G,T=6.1
12.5G,T=7.0,W(ALUMINUM WHEEL)
12.5G,T=7.0
17.5G,T=8.0,W(ALUMINUM WHEEL)
17.5G,T=8.0
22.5G,T=8.0,W(ALUMINUM WHEEL)
22.5G,T=8.0
27.5G,T=8.0,W(ALUMINUM WHEEL)
27.5G,T=8.0
32.5G,T=8.0,W(ALUMINUM WHEEL)
32.5G,T=8.0
37.5G,T=8.0,W(ALUMINUM WHEEL)
37.5G,T=8.0
42611GVALVE (FOR TUBELESS TIRE)
W(14INCHES ALUMINUM WHEEL)
42652TIRE
185/70 HR14
185/70R14 88H
195/60VR15
185/70R14 87H
42652ATIRE (FOR SPARE)
185/70 HR14
185/70R14 88H
195/60VR15
185/70R14 87H
