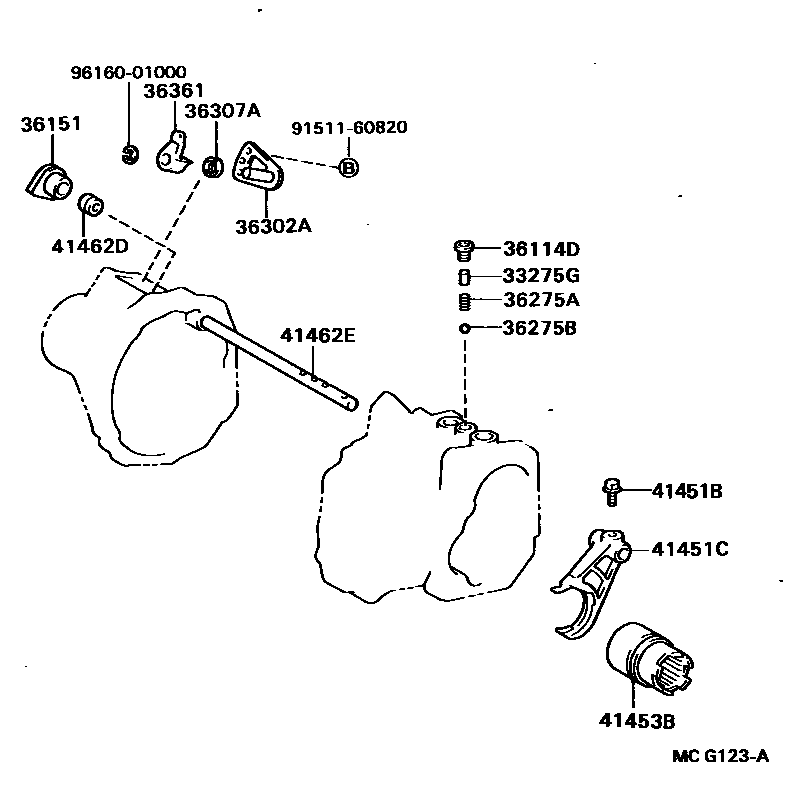

TRANSFER LEVER & SHIFT ROD

0001 1E56F2,W(ANTI-LOCK BRAKE SYSTE0002 1E56F5

33275GSEAT, TRANSFER SHIFT DETENT BALL SPRING

main33275-16010iSV25198808-199106

36114DPLUG, W/HEAD STRAIGHT SCREW

main90341-12004iSV25198808-199106

36151BUSH, TRANSFER CASE UPPER COVER

main36151-20010iSV25198808-199106

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-14110iSV25198808-199106

36275BBALL, SHIFT DETENT

main90360-08009iSV25198808-199106

OD=7.94,STEEL

36302ALEVER SUB-ASSY, TRANSFER SHIFT, NO.1

main36302-20010iSV25198808-199106

36307ASEAL, OIL (FOR HIGH & LOW SHIFT INNER LEVER)

main90313-14001iSV25198808-199106

36361LEVER, TRANSFER SHIFT, INNER

main36361-20010iSV25198808-199106

41451BBOLT (FOR DIFFERENTIAL LOCK SHIFT FORK)

main90105-06094iSV25198808-199106

41451CFORK, DIFFERENTIAL LOCK SHIFT

main41451-12010iSV25198808-199106

main41451-20030iSV25198808-199106

W(*66)

41453BSLEEVE, DIFFERENTIAL LOCK

main41453-12010iSV25198808-199106

main41453-20030iSV25198808-199106

W(*66)

41462DSEAL, OIL (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)

main90311-14005iSV25198808-199106

W(*66)

main90311-14007iSV25198808-199106

41462ESHAFT, DIFFERENTIAL LOCK SHIFT FORK

main41462-12010iSV25198808-199106

main41462-20020iSV25198808-199106

W(*66)

9151160820

main91511-60820

9616001000

main96160-01000

15 parts on this diagram · 2 diagrams in section
