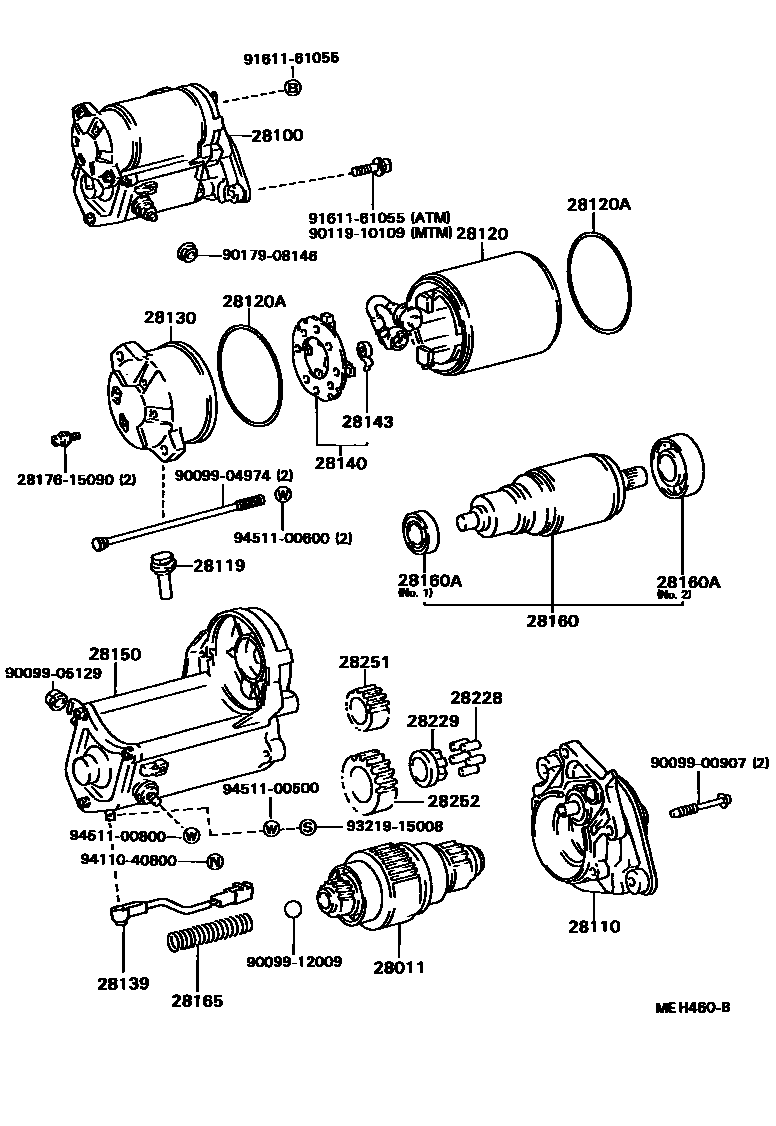

STARTER

0001 112V 1.4KW 0002 112V 2.2KW 0003 112V 1.0KW 0004 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-64010i2CT..CV20198808-199106

main28011-74011i3SFE,2VZFE..SV2#,VZV21198808-199001

main28011-74060i3SFE,2VZFE..SV2#,VZV21199001-199106

main28011-74070i3SFE..SV2#..LHD198912-199106

COLD SPEC

28100STARTER ASSY

main28100-62011i2VZFE..VZV21198808-199106

12V 1.0KW

main28100-62021i2VZFE..VZV21..RHD198808-199106

12V 1.4KW,COLD SPEC

main28100-64040i2CT..CV20..LHD198808-199106

12V 2.2KW,COLD SPEC

main28100-64070i2CT..CV20198808-199106

12V 1.4KW

main28100-74011i3SFE..SV2#198808-199106

12V 1.0KW

main28100-74021i3SFE..SV2#..LHD198808-198912

12V 1.4KW,COLD SPEC

main28100-74070i2VZFE..VZV21..LHD198912-199002

12V 1.4KW,COLD SPEC

main28100-74090i3SFE..SV2#..LHD198912-199106

12V 1.4KW,COLD SPEC

28110HOUSING ASSY, STARTER DRIVE

main28110-62010i2VZFE..VZV21198808-199106

main28110-62020i2VZFE..VZV21..RHD198808-199106

COLD SPEC

main28110-64070i2CT..CV20198808-199106

main28110-74010i3SFE..SV2#198808-199106

main28110-74020i3SFE..SV2#..LHD198808-198912

COLD SPEC

main28110-74090i3SFE..SV2#..LHD198912-199106

COLD SPEC

main28115-64040i2CT..CV20..RHD198808-199106

COLD SPEC

28119COVER, STARTER END FRAME

main28119-46080i2CT..CV20..RHD199102-199106

COLD SPEC

main28119-77090i2CT..CV20..LHD199007-199102

COLD SPEC

main28199-15090i3SFE,2VZFE..SV2#,VZV21..LHD198808-199106

COLD SPEC

main28199-15090i2CT..CV20198808-199101

main28199-74070i3SFE..SV2#..LHD198912-199105

COLD SPEC

main28199-74100i2CT..CV20199101-199106

main28199-74110i3SFE..SV2#..LHD199105-199106

COLD SPEC

main28199-77090i2CT..CV20..LHD198808-199007

COLD SPEC

28120YOKE ASSY, STARTER

main28120-15090i3SFE,2VZFE..SV2#,VZV21..RHD198808-199106

COLD SPEC

main28120-15090i2CT..CV20198808-199106

main28120-26071i3SFE,2VZFE..SV2#,VZV21198808-199106

main28120-64040i2CT..CV20..LHD198808-199106

COLD SPEC

main28120-74070i3SFE..SV2#..RHD198912-199106

COLD SPEC

28120ARING, O(FOR STARTER YOKE)

main90099-14064i2CT..CV20198808-199106

COLD SPEC

main90099-64040i2CT..CV20..LHD198808-199106

COLD SPEC

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15090i2CT..CV20198808-199101

main28130-62020i2VZFE..VZV21..LHD198808-199106

COLD SPEC

main28130-64070i2CT..CV20199101-199106

main28130-74010i3SFE,2VZFE..SV2#,VZV21198808-199106

main28130-74020i3SFE..SV2#..LHD198808-198912

COLD SPEC

main28130-74090i3SFE..SV2#..LHD198912-199106

COLD SPEC

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-64010i2CT..CV20..LHD199010-199106

COLD SPEC

main28139-64010i2CT..CV20198808-199010

main28139-64070i2CT..CV20199010-199101

main28139-64071i2CT..CV20199101-199106

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i2CT..CV20198808-199106

main28140-64040i2CT..CV20..LHD198808-199106

COLD SPEC

main28140-74010i3SFE,2VZFE..SV2#,VZV21198808-199106

main28140-74020i3SFE,2VZFE..SV2#,VZV21..RHD198808-199106

COLD SPEC

main28140-74070i3SFE..SV2#..LHD198912-199106

COLD SPEC

28143SPRING, STARTER BRUSH

main90099-17112i2CT,3SFE,2VZFE..CV20,SV2#,VZV21198808-199106

main90099-17115i2CT..CV20..RHD198808-199106

COLD SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-64040i2CT..CV20..LHD198808-199106

COLD SPEC

main28150-64070i2CT..CV20198808-199010

main28150-64100i2CT..CV20199010-199101

main28150-64101i2CT..CV20199101-199106

main28150-74010i3SFE,2VZFE..SV2#,VZV21198808-199106

main28150-74020i3SFE,2VZFE..SV2#,VZV21..RHD198808-199106

COLD SPEC

main28150-74070i3SFE..SV2#..RHD198912-199106

COLD SPEC

28160ARMATURE ASSY, STARTER

main28160-15090i2CT..CV20198808-198908

COLD SPEC

main28160-15091i3SFE,2VZFE..SV2#,VZV21..RHD198908-199106

COLD SPEC

main28160-15091i2CT..CV20198908-199106

main28160-26070i3SFE,2VZFE..SV2#,VZV21198808-198908

main28160-26071i3SFE,2VZFE..SV2#,VZV21198908-199106

main28160-64040i2CT..CV20..LHD198808-199106

COLD SPEC

main28160-74070i3SFE..SV2#..RHD198912-199106

COLD SPEC

28160ABEARING, STARTER ARMATURE

main28253-45020i3SFE,2VZFE..SV2#,VZV21198808-199106

NO.1

main28253-54070i2CT..CV20..RHD198808-199106

COLD SPEC,NO.1

main90099-10113i3SFE,2VZFE..SV2#,VZV21198808-199106

NO.2

main90099-10143i2VZFE..VZV21..RHD198808-199106

COLD SPEC,NO.2

main90099-10143i2CT..CV20198808-199106

NO.2

main90099-10144i2VZFE..VZV21..RHD198808-199106

COLD SPEC,NO.1

main90099-10144i2CT..CV20198808-199106

NO.1

main90099-10196i3SFE..SV2#..RHD198912-199106

COLD SPEC,NO.1

main90099-10197i3SFE..SV2#..RHD198912-199106

COLD SPEC,NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2CT..CV20198808-199106

main28165-74010i3SFE,2VZFE..SV2#,VZV21198808-199106

main28165-74070i3SFE..SV2#..RHD198912-199106

COLD SPEC

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i2CT,3SFE,2VZFE..CV20,SV2#,VZV21198808-199106

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2CT,3SFE,2VZFE..CV20,SV2#,VZV21198808-199106

main28229-74070i3SFE..SV2#..RHD198912-199106

COLD SPEC

28251PINION, STARTER DRIVE

main28251-15090i2VZFE..VZV21..RHD198808-199106

COLD SPEC

main28251-15090i2CT..CV20198808-199106

main28251-54070i2CT..CV20..RHD198808-199106

COLD SPEC

28252GEAR, STARTER IDLE

main28254-45020i3SFE..SV2#198808-199106

main28254-54070i3SFE..SV2#..LHD198808-198912

COLD SPEC

main28254-54070i2CT,2VZFE..CV20,VZV21198808-199106

main28254-64040i2CT..CV20..LHD198808-199106

COLD SPEC

main28254-74070i3SFE..SV2#..RHD198912-199106

COLD SPEC

2817615090SCREW, STARTER

main28176-15090

9009900907

main90099-00907

9009904974

main90099-04974

9009905129

main90099-05129

9009912009

main90099-12009

9011910109

main90119-10109

9017908146

main90179-08146

9161161055

main91611-61055

9321915008

main93219-15008

9411040800

main94110-40800

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

31 parts on this diagram · 4 diagrams in section
