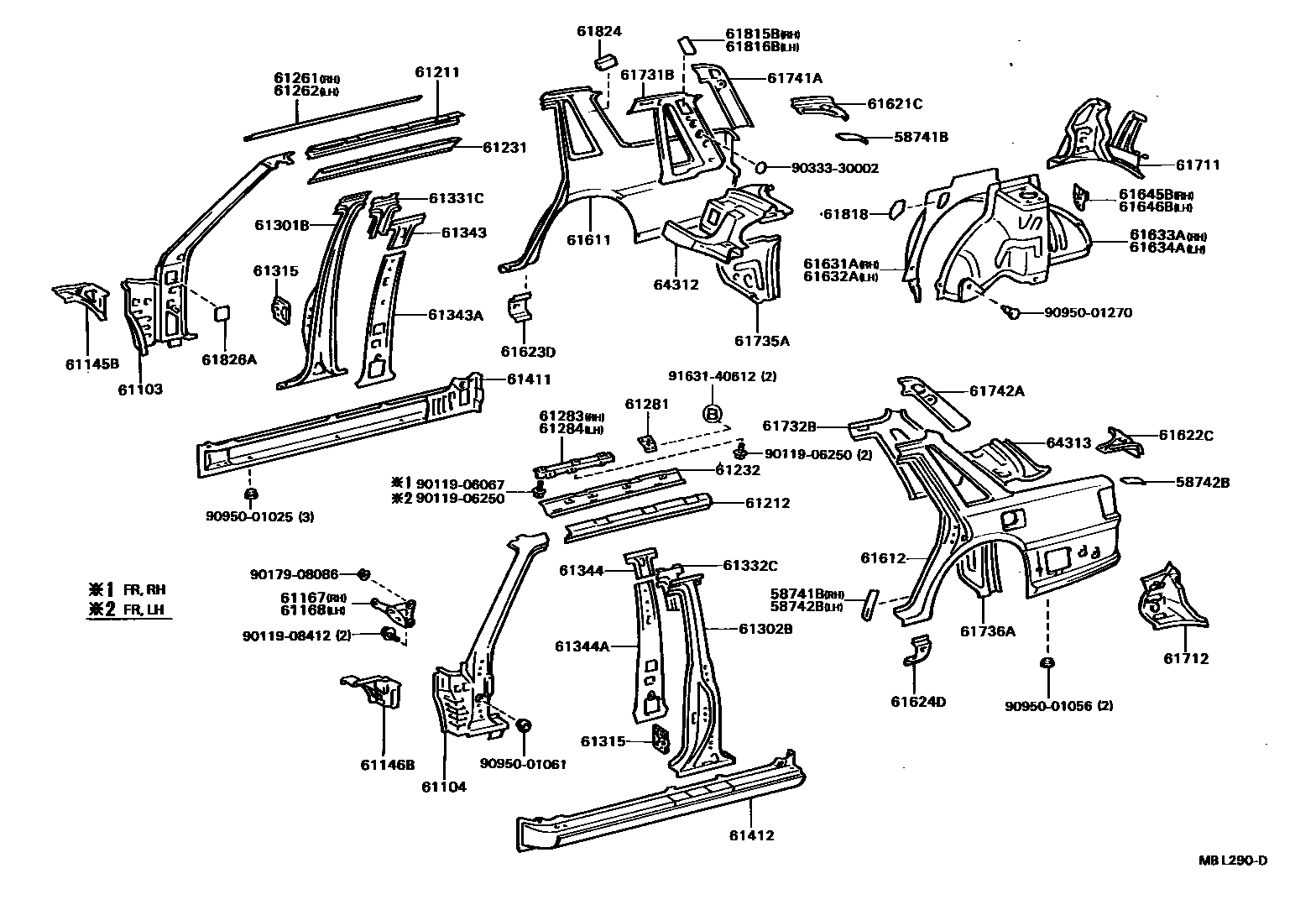

SIDE MEMBER

0001 1 0002 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12060iCV20,SV2#,VZV21198712-198808

main58741-32010iCV20,SV21..SED..(GL,GLI)198610-198710

58742BPROTECTOR, QUARTER PANEL, LH

main58741-12060iCV20,SV2#,VZV21198712-198808

main58742-32010iCV20,SV21..SED..(GL,GLI)198610-198710

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-32290iCV20,SV21,25..RHD198710-198808

main61021-32300iCV20,SV21,25..SED..RHD; CV20,SV21..WG..RHD198710-198808

W(POWER ANTENNA)

main61021-32330iCV20,SV2#,VZV21..LHD198710-198808

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-32320iCV20,SV21,25..RHD198710-198808

main61022-32340iCV20,SV2#..LHD198610-198808

main61022-32350iCV20,SV2#..SED..LHD; CV20,SV20,21..WG..LHD; VZV21198710-198808

W(POWER ANTENNA)

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-32010iCV20,SV2#198610-198710

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-32010iCV20,SV2#198610-198710

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-32010iCV20,SV2#..LHD198610-198710

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-32010iCV20,SV21,25..RHD198710-198808

61211RAIL, ROOF SIDE, OUTER RH

main61211-32030iCV20,SV2#..SED198610-198710

main61211-32040iCV20,SV2#..WG198610-198710

61212RAIL, ROOF SIDE, OUTER LH

main61212-32030iCV20,SV2#..SED198610-198710

main61212-32040iCV20,SV20,21..WG198710-198808

61231RAIL, ROOF SIDE, INNER RH

main61231-32140iCV20,SV2#,VZV21..SED198710-198808

main61231-32160iCV20,SV2#..WG198708-198710

main61231-32170iCV20,SV2#..WG198610-198708

61232RAIL, ROOF SIDE, INNER LH

main61232-32140iCV20,SV2#,VZV21..SED198710-198808

main61232-32160iCV20,SV2#..WG198708-198710

main61232-32170iCV20,SV2#..WG198610-198708

61261CHANNEL, ROOF DRIP, RH

main61261-32030iCV20,SV2#..SED198610-198710

main61261-32040iCV20,SV20,21..WG198710-198808

61262CHANNEL, ROOF DRIP, LH

main61262-32030iCV20,SV2#..SED198610-198710

main61262-32040iCV20,SV20,21..WG198710-198808

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-32030×2iCV20,SV2#..SED198610-198710

main61281-32040×2iCV20,SV2#..WG198708-198710

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-32030iCV20,SV2#,VZV21..SED198710-198808

main61283-32040iCV20,SV20,21..WG198710-198808

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-32030iCV20,SV2#,VZV21..SED198710-198808

main61284-32040iCV20,SV2#..WG198708-198710

61301BPILLAR, CENTER BODY, OUTER RH

main61301-32900iCV20,SV2#198610-198710

61302BPILLAR, CENTER BODY, OUTER LH

main61302-32900iCV20,SV2#,VZV21198710-198808

61315RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020×2iCV20,SV2#198610-198710

61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH

main61331-32010iCV20,SV2#198610-198710

61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH

main61332-32010iCV20,SV2#198610-198710

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-32040iCV20,SV2#198610-198710

61343APILLAR, CENTER BODY, INNER RH

main61343-32902iCV20,SV2#198610-198710

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-32040iCV20,SV2#198610-198710

61344APILLAR, CENTER BODY, INNER LH

main61344-32902iCV20,SV2#198610-198710

61411PANEL, ROCKER, OUTER RH

main61401-32050iCV20,SV2#198610-198710

61412PANEL, ROCKER, OUTER LH

main61402-32050iCV20,SV2#,VZV21198710-198808

61611PANEL, QUARTER, RH

main61601-32906iCV20,SV2#..SED198610-198710

W/O *MG

main61601-32907iCV20,SV2#,VZV21..SED198710-198808

W(MUD GUARD)

main61601-32910iCV20,SV2#..WG198610-198710

W/P.P. BUMPER,W/O *MG

main61601-32911iCV20,SV20,21..WG198710-198808

W(P.P. BUMPER & MUD GUARD)

main61601-32913iCV20,SV2#..WG198610-198710

W/*UB

61612PANEL, QUARTER, LH

main61602-32907iCV20,SV2#..SED198610-198710

W/O *MG,*MDA

main61602-32908iCV20,SV2#..SED198710-198808

W(MUD GUARD)

main61602-32909iCV20,SV2#..SED198610-198710

W/O *MG,W/*MDA

main61602-32910iCV20,SV2#..SED; VZV21198710-198808

W(MUD GUARD & POWER ANTENNA); W(MUD GUARD)

main61602-32912iCV20,SV20,21..WG198710-198808

W(P.P. BUMPER & POWER ANTENNA)

main61602-32913iCV20,SV20,21..WG198710-198808

W(P.P. BUMPER & MUD GUARD)

main61602-32915iCV20,SV20,21..WG198710-198808

main61602-32917iCV20,SV20,21..WG198710-198808

W(P.P. BUMPER)

main61602-32920iCV20,SV20,21..WG198710-198808

W(URETHANE BUMPER)

main61602-32921iCV20,SV2#..WG198610-198710

W/*UB,*MDA

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-32030iCV20,SV2#..SED198610-198710

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-32030iCV20,SV2#..SED198610-198710

61623DEXTENSION, QUARTER PANEL, FRONT RH

main61623-32020iCV20,SV2#,VZV21198710-198808

61624DEXTENSION, QUARTER PANEL, FRONT LH

main61624-32020iCV20,SV2#198610-198710

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-32030iCV20,SV2#,VZV21..SED198710-198808

main61631-32050iCV20,SV20,21..WG198710-198808

main61631-32900iCV20,SV2#..SED198610-198710

main61631-32901iCV20,SV2#..WG198610-198710

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-32030iCV20,SV2#,VZV21..SED198710-198808

main61632-32050iCV20,SV20,21..WG198710-198808

main61632-32900iCV20,SV2#..SED198610-198710

main61632-32901iCV20,SV2#..WG198610-198710

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-32902iCV20,SV2#..SED..(XL,XLI)198610-198710

main61603-32903iCV20,SV21,VZV21..SED..(GL,GLI,GXI); CV20,SV21..SED..(XL,XLI); SV20..SED198710-198808

*FSRS

main61603-32906iCV20,SV20,21..WG198710-198808

main61603-32908iSV25198710-198808

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-32902iCV20,SV20,21..SED..(XL,XLI)198710-198808

main61604-32903iCV20,SV20,21..SED..(XL,XLI); CV20,SV21,VZV21..SED..(GL,GLI,GXI)198710-198808

*FSRS;*FSPS

main61604-32906iCV20,SV20,21..WG198710-198808

main61604-32908iSV25198710-198808

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-32030iCV20,SV20,21,VZV21198710-198808

main61645-32040iSV25198710-198808

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-32020iCV20,SV20,21,VZV21198710-198808

main61646-32030iSV25198710-198808

61711PANEL, ROOF SIDE, OUTER RH

main61711-32900iCV20,SV20,21,VZV21..SED198710-198808

main61711-32901iCV20,SV20,21..WG198710-198808

61712PANEL, ROOF SIDE, OUTER LH

main61712-32900iCV20,SV2#..SED198610-198710

main61712-32901iCV20,SV2#..WG198610-198710

61731BPANEL, ROOF SIDE, INNER RH

main61731-32030iCV20,SV2#..SED198610-198710

main61731-32040iCV20,SV2#,VZV21..SED198710-198808

W(MOON ROOF)

main61731-32901iCV20,SV2#..WG198610-198710

61732BPANEL, ROOF SIDE, INNER LH

main61732-32030iCV20,SV2#..SED198710-198802

W(POWER ANTENNA)

main61732-32040iCV20,SV2#..SED198610-198710

main61732-32901iCV20,SV20,21..WG198710-198808

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-32030iCV20,SV2#..WG198610-198710

main61735-32901iCV20,SV2#..SED198610-198710

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-32030iCV20,SV2#..WG198610-198710

main61736-32901iCV20,SV2#..SED198610-198710

61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH

main61741-32040iCV20,SV2#..WG198610-198710

main61741-32900iCV20,SV2#..SED198610-198710

61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH

main61742-32030iCV20,SV20,21..WG198710-198808

main61742-32900iCV20,SV2#..SED198610-198710

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-32020iCV20,SV2#..SED198610-198710

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61815-32020iCV20,SV2#..SED198610-198710

61818COVER, ROOF SIDE, INNER UPPER

main61817-32020×2iCV20,SV2#198610-198710

61824PLATE, NOISE CONTROL, NO.1

main61824-12010×2iCV20,SV2#..SED; CV20,SV2#..WG198610-198710

61826APLATE, NOISE CONTROL, NO.3

main61826-32010×2iCV20,SV2#198610-198701

main62939-23010×2iCV20,SV2#198701-198710

64312BRACKET, PACKAGE TRAY, RH

main64312-32900iCV20,SV2#..SED198610-198710

64313BRACKET, PACKAGE TRAY, LH

main64313-32900iCV20,SV2#..SED198610-198710

9011906067

main90119-06067

9011906250

main90119-06250

9011908412

main90119-08412

9017908086

main90179-08086

9033330002

main90333-30002

9095001025

main90950-01025

9095001056

main90950-01056

9095001061

main90950-01061

9095001270

main90950-01270

9163140612

main91631-40612

65 parts on this diagram · 2 diagrams in section
