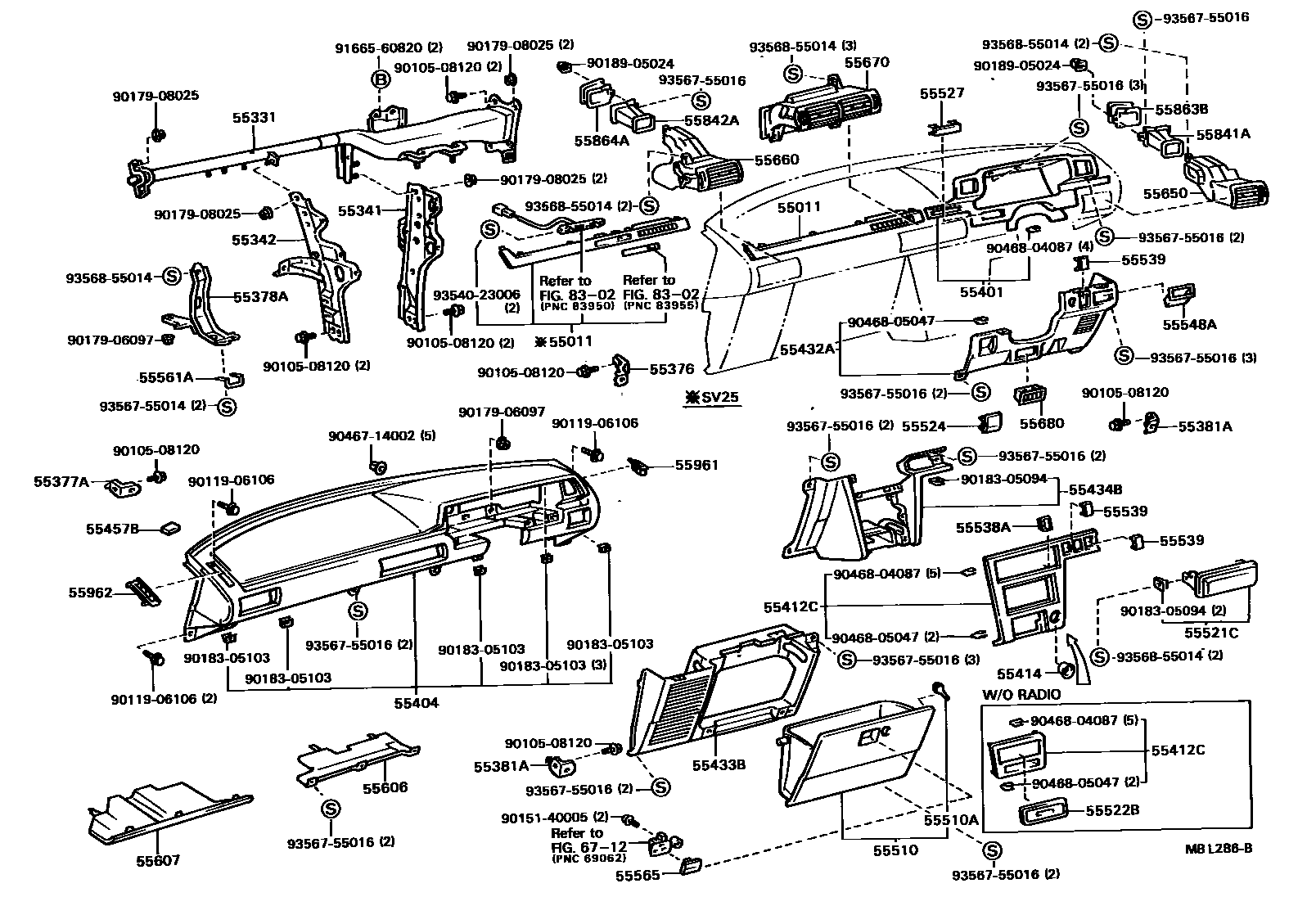

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55011GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD

main55011-32050iCV20,SV21..RHD198610-198808

main55011-32060iCV20,SV2#..LHD198610-198710

main55011-32070iSV25..RHD198710-198808

main55011-32080iSV25..RHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main55011-32090iSV25..LHD198710-198808

main55011-32100iSV25..LHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-32060iCV20,SV21..RHD198610-198710

main55330-32070iCV20,SV2#,VZV21..LHD198710-198808

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-32070iCV20,SV21..RHD198610-198710

main55306-32080iCV20,SV2#..LHD198610-198710

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-32040iCV20,SV21..RHD198610-198710

main55307-32050iCV20,SV2#,VZV21..LHD198710-198808

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-32030iCV20,SV2#,VZV21198710-198808

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-32030iCV20,SV2#198610-198710

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-32040iCV20,SV2#,VZV21198710-198808

55381ABRACKET, FINISH PANEL MOUNTING

main55381-32040iCV20,SV21,25..RHD198710-198808

RH

main55381-32050iCV20,SV2#..LHD198610-198710

LH

main55382-32020iCV20,SV21,25..RHD198710-198808

LH

main55382-32030iCV20,SV2#,VZV21..LHD198710-198808

RH

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-32050-01iCV20,SV21,25..RHD198710-198808

BLACK,TRIM3#,4#,8#

main55404-32060-01iCV20,SV2#..LHD198610-198710

BLACK,BLACK

main55404-32060-03iVZV21198802-198808

MEDIUM GRAY,TRIM1#

main55404-32060-04iVZV21198802-198808

DARK BLUE,TRIM8#

main55404-32060-05iVZV21198802-198808

DARK BEIGE,TRIM4#

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-32050-02iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

main55401-32050-04iCV20,SV21,25..RHD198710-198808

DARK BLUE,TRIM8#

main55401-32050-05iCV20,SV21..RHD198610-198710

BEIGE,DARK BEIGE,TRIM4#

main55401-32060-03iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main55401-32060-04iCV20,SV2#..LHD198610-198710

BLUE,DARK BLUE,TRIM8#

main55401-32060-05iCV20,SV2#,VZV21..LHD198710-198808

DARK BEIGE,TRIM4#

55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55410-32010iCV20,SV21,25..RHD198710-198808

main55410-32020iCV20,SV2#..LHD198610-198710

W/O RADIO

main55412-32070iSV21..SED..RHD..4FC; SV21..WG..RHD;CV20,SV25..RHD;SV21..SED..RHD..5F198710-198808

W(RADIO)

main55412-32080iCV20,SV2#..LHD; VZV21198710-198808

W(RADIO)

55414BEZEL, CIGAR LIGHTER HOLE

main55477-12060iCV20,SV2#,VZV21198710-198808

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-32030-02iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

main55432-32030-04iCV20,SV21,25..RHD198710-198808

DARK BLUE,TRIM8#

main55432-32030-05iCV20,SV21,25..RHD198710-198808

DARK BEIGE,TRIM4#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-32030-02iCV20,SV21,25..RHD198710-198808

MAROON,TRIM3#

main55433-32030-04iCV20,SV21..RHD198610-198710

BLUE,DARK BLUE,TRIM8#

main55433-32030-05iCV20,SV21..RHD198610-198710

BEIGE,DARK BEIGE,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-32050-02iCV20,SV21,25..RHD198710-198808

MAROON,TRIM3#

main55434-32050-04iCV20,SV21..RHD198610-198710

BLUE,DARK BLUE,TRIM8#

main55434-32050-05iCV20,SV21,25..RHD198710-198808

DARK BEIGE,TRIM4#

main55434-32060-03iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main55434-32060-04iCV20,SV2#,VZV21..LHD198710-198808

DARK BLUE,TRIM8#

main55434-32060-05iCV20,SV2#..LHD198610-198710

BEIGE,DARK BEIGE,TRIM4#

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030×3iCV20,SV2#198610-198710

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-32060-02iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

main55550-32060-03iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main55550-32060-04iCV20,SV2#198610-198710

BLUE,DARK BLUE,TRIM8#

main55550-32060-05iCV20,SV2#,VZV21198710-198808

DARK BEIGE,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iCV20,SV2#,VZV21198710-198808

55521CCOVER, STEREO OPENING

main55521-20120iCV20,SV2#198610-198808

55522BCOVER, RADIO TUNER OPENING

main55522-20060iCV20,SV2#198610-198808

main55522-32010iCV20,SV2#198703-198710

RADIO LESS

55524COVER, SWITCH BACE HOLE

main55524-32050-02iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

main55524-32050-04iCV20,SV21,25..RHD198710-198808

DARK BLUE,TRIM8#

main55524-32050-05iCV20,SV21,25..RHD198710-198808

DARK BEIGE,TRIM4#

55527COVER, TRANSMISSION CONTROL SWITCH HOLE

main55527-32030-01iCV20,SV2#,VZV21..5F198710-198808

BLACK,TRIM1#,3#,4#,8#

55538ACOVER, COOLER SWITCH HOLE

main55538-16020iCV20,SV2#198610-198808

55539COVER, SPARE SWITCH HOLE

main55539-20030-05iCV20,SV2#,VZV21198802-198808

DARK BEIGE,TRIM4#

main55539-20030-12iCV20,SV21,25..RHD198802-198808

MAROON,TRIM3#

main55539-20030-13iCV20,SV2#,VZV21..LHD198802-198808

MEDIUM GRAY,TRIM1#

main55539-20030-14iCV20,SV2#,VZV21198802-198808

DARK BLUE,TRIM8#

main55539-32010-01×3iCV20,SV2#..WG..(XL,XLI); CV20,SV20..SED..XL; CV20,SV21..GL,GLI; SV21..SED..XLI198610-198710

BLACK,BLACK

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-32040iCV20,SV2#..EUG198610-198710

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-32020iCV20,SV2#,VZV21198710-198808

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20040-01iCV20,SV2#,VZV21198710-198808

NEW BLACK,TRIM1#,3#,4#,8#

main55565-20040-05iCV20,SV2#198610-198710

BEIGE,DARK BEIGE,TRIM4#

main55565-20040-12iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

main55565-20040-13iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main55565-20040-14iCV20,SV2#198610-198710

BLUE,DARK BLUE,TRIM8#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-32010iSV25..RHD198710-198808

main55606-32020iSV25,VZV21..LHD198710-198808

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-32010iSV25..RHD198710-198808

main55607-32020iSV25,VZV21..LHD198710-198808

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-32070-03iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main55650-32070-04iCV20,SV2#..LHD198610-198710

BLUE,DARK BLUE,TRIM8#

main55650-32070-05iCV20,SV2#..LHD198610-198710

BEIGE,DARK BEIGE,TRIM4#

main55650-32071-03iCV20,SV2#,VZV21..LHD198802-198808

MEDIUM GRAY,TRIM1#

main55650-32071-04iCV20,SV2#,VZV21..LHD198802-198808

DARK BLUE,TRIM8#

main55650-32071-05iCV20,SV2#,VZV21..LHD198802-198808

DARK BEIGE,TRIM4#

main55650-32080-02iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

main55650-32080-04iCV20,SV21..RHD198610-198710

BLUE,DARK BLUE,TRIM8#

main55650-32080-05iCV20,SV21..RHD198610-198710

BEIGE,DARK BEIGE,TRIM4#

main55650-32081-02iCV20,SV21,25..RHD198802-198808

MAROON,TRIM3#

main55650-32081-04iCV20,SV21,25..RHD198802-198808

DARK BLUE,TRIM8#

main55650-32081-05iCV20,SV21,25..RHD198802-198808

DARK BEIGE,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-32070-03iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main55660-32070-04iCV20,SV2#..LHD198610-198710

BLUE,DARK BLUE,TRIM8#

main55660-32070-05iCV20,SV2#..LHD198610-198710

BEIGE,DARK BEIGE,TRIM4#

main55660-32072-03iCV20,SV2#,VZV21..LHD198802-198808

MEDIUM GRAY,TRIM1#

main55660-32072-04iCV20,SV2#,VZV21..LHD198802-198808

DARK BLUE,TRIM8#

main55660-32072-05iCV20,SV2#,VZV21..LHD198802-198808

DARK BEIGE,TRIM4#

main55660-32080-02iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

main55660-32080-04iCV20,SV21..RHD198610-198710

BLUE,DARK BLUE,TRIM8#

main55660-32080-05iCV20,SV21..RHD198610-198710

BEIGE,DARK BEIGE,TRIM4#

main55660-32082-02iCV20,SV21,25..RHD198802-198808

MAROON,TRIM3#

main55660-32082-04iCV20,SV21,25..RHD198802-198808

DARK BLUE,TRIM8#

main55660-32082-05iCV20,SV21,25..RHD198802-198808

DARK BEIGE,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-32050-02iCV20,SV21..RHD198610-198802

MAROON,MAROON,TRIM3#

main55670-32050-04iCV20,SV21..RHD198610-198802

BLUE,DARK BLUE,TRIM8#

main55670-32050-05iCV20,SV21..RHD198610-198802

BEIGE,DARK BEIGE,TRIM4#

main55670-32051-02iCV20,SV21,25..RHD198802-198808

MAROON,TRIM3#

main55670-32051-04iCV20,SV21,25..RHD198802-198808

DARK BLUE,TRIM8#

main55670-32051-05iCV20,SV21,25..RHD198802-198808

DARK BEIGE,TRIM4#

main55670-32060-03iCV20,SV2#..LHD198610-198802

GRAY,MEDIUM GRAY,TRIM1#

main55670-32060-04iCV20,SV2#..LHD198610-198802

BLUE,DARK BLUE,TRIM8#

main55670-32060-05iCV20,SV2#..LHD198610-198802

BEIGE,DARK BEIGE,TRIM4#

main55670-32061-03iCV20,SV2#,VZV21..LHD198802-198808

MEDIUM GRAY,TRIM1#

main55670-32061-04iCV20,SV2#,VZV21..LHD198802-198808

DAEK BLUE,TRIM8#

main55670-32061-05iCV20,SV2#,VZV21..LHD198802-198808

DARK BEIGE,TRIM4#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-02iSV21..SED..RHD..4FC; SV21..WG..RHD;CV20,SV25..RHD;SV21..SED..RHD..5F198710-198807

MAROON,TRIM3#

main55680-14030-03iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main55680-14030-05iSV21..SED..RHD..4FC; SV21..WG;SV21..SED..5F;CV20,SV20,25,VZV21;SV21..SED..LHD..4FC198710-198807

DARK BEIGE,TRIM4#

main55680-14030-14iSV21..SED..RHD..4FC; SV21..WG;SV21..SED..5F;CV20,SV20,25,VZV21;SV21..SED..LHD..4FC198710-198807

DARK BLUE,TRIM8#

55841ADUCT, COWL TO REGISTER, NO.1

main55841-32010iCV20,SV2#..LHD198610-198710

main55841-32020iCV20,SV21..RHD198610-198710

55842ADUCT, COWL TO REGISTER, NO.2

main55842-32010iCV20,SV2#..LHD198610-198710

main55842-32020iCV20,SV21,25..RHD198710-198808

55863BBOOT, SIDE VENTILATOR DUCT, NO.1

main55863-32010iCV20,SV2#198610-198710

55864ABOOT, SIDE VENTILATOR DUCT, NO.2

main55864-32010iCV20,SV2#198610-198710

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-32050-02iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

main55961-32050-04iCV20,SV21..RHD198610-198710

BLUE,DARK BLUE,TRIM8#

main55961-32050-05iCV20,SV21,25..RHD198710-198808

DARK BEIGE,TRIM4#

main55961-32060-03iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main55961-32060-04iCV20,SV2#..LHD198610-198710

BLUE,DARK BLUE,TRIM8#

main55961-32060-05iCV20,SV2#,VZV21..LHD198710-198808

DARK BEIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-32030-02iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

main55962-32030-04iCV20,SV21..RHD198610-198710

BLUE,DARK BLUE,TRIM8#

main55962-32030-05iCV20,SV21..RHD198610-198710

BEIGE,DARK BEIGE,TRIM4#

main55962-32040-03iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main55962-32040-04iCV20,SV2#,VZV21..LHD198710-198808

DARK BLUE,TRIM8#

main55962-32040-05iCV20,SV2#..LHD198610-198710

BEIGE,DARK BEIGE,TRIM4#

6712LOCK CYLINDER SET

→ Go to FIG 67-12

8302INDICATOR

→ Go to FIG 83-02

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9017906097

main90179-06097

9017908025

main90179-08025

9018305094

main90183-05094

9018305103

main90183-05103

9018905024

main90189-05024

9046714002

main90467-14002

9046804087

main90468-04087

9046805047

main90468-05047

9166560820

main91665-60820

9354023006

main93540-23006

9356755014

main93567-55014

9356755016

main93567-55016

9356855014

main93568-55014

57 parts on this diagram · 2 diagrams in section
