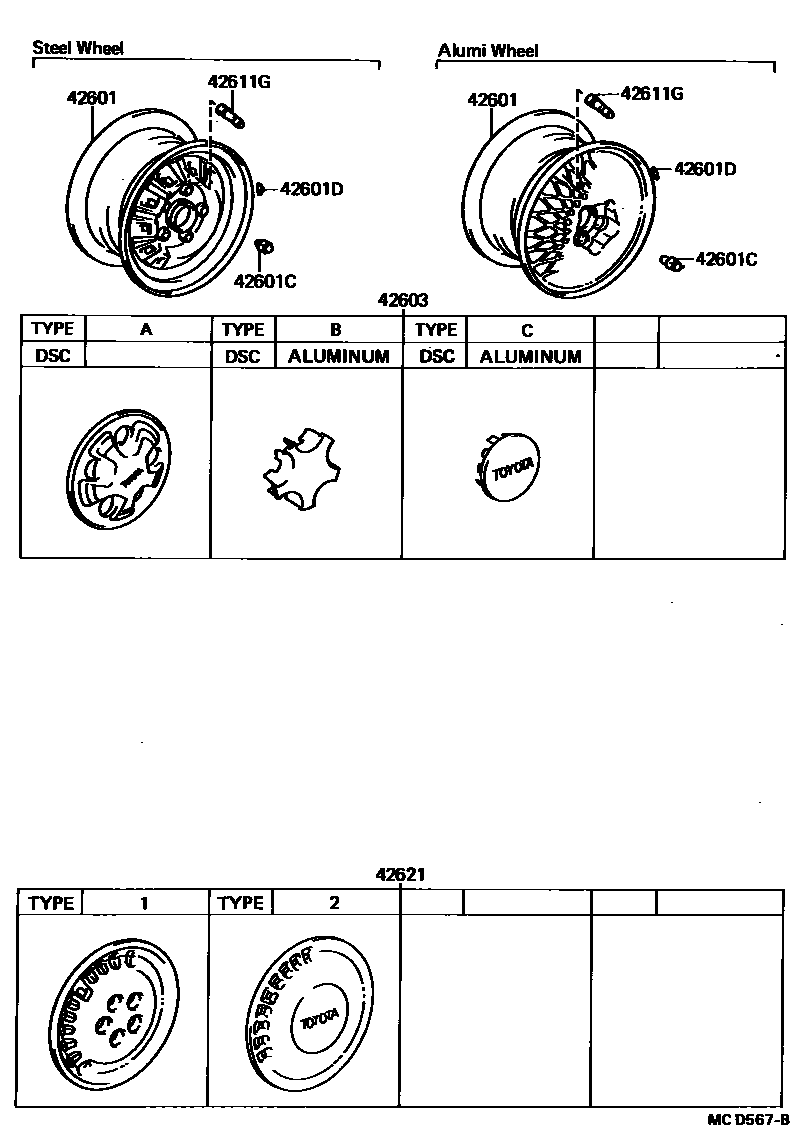

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5.5JJ,5.5-JX14,TYPE B,SILVER
14X5.5JJ,5.5-JX14,SILVER(040 ,164 ,167 ,3H3 ,3H4 ,4G8 ,6J6 ,8D8 ,8E3 ,21C),TYPE B,SILVER
14X5.5JJ,5.5-JX14,TYPE C
14X5.5JJ,ALUMINUM,5.5-JJX14,ALUMI WHEEL,TYPE D
15X5.5JJ,5.5-JJX15,ALUMI,TYPE E
15X5.5JJ,5.5-JJX15,TYPE A
14X5.5JJ,5.5-JJX14,W(ALUMINUM WHEEL),TYPE D
42601CNUT, HUB (FOR AXLE)
ALUMI WHEEL
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,T=8,20G
30G,T=10
40G,T=9.5
50G,T=9.5,50G
60G,T=9.5
70G,T=9.5,70G
80G,T=9.5,80G
10G,T=7.5
15G,15G
25G,25G
35G
45G,45G
55G
65G,65G
75G,75G
10G
15G
20G
25G
30G
35G
40G
45G
50G
55G
60G
65G
70G
75G
80G
5G,5G
5G
7.5G,T=6.1
12.5G,T=7.0
17.5G,T=8.0
22.5G,T=8.0
27.5G,T=8.0
32.5G,T=8.0
37.5G,T=8.0
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,ALUMI WHEEL,TYPE B
*ALU
42611GVALVE (FOR TUBELESS TIRE)
42621CAP, WHEEL
TYPE 1
TYPE 2
6 parts on this diagram · 2 diagrams in section
