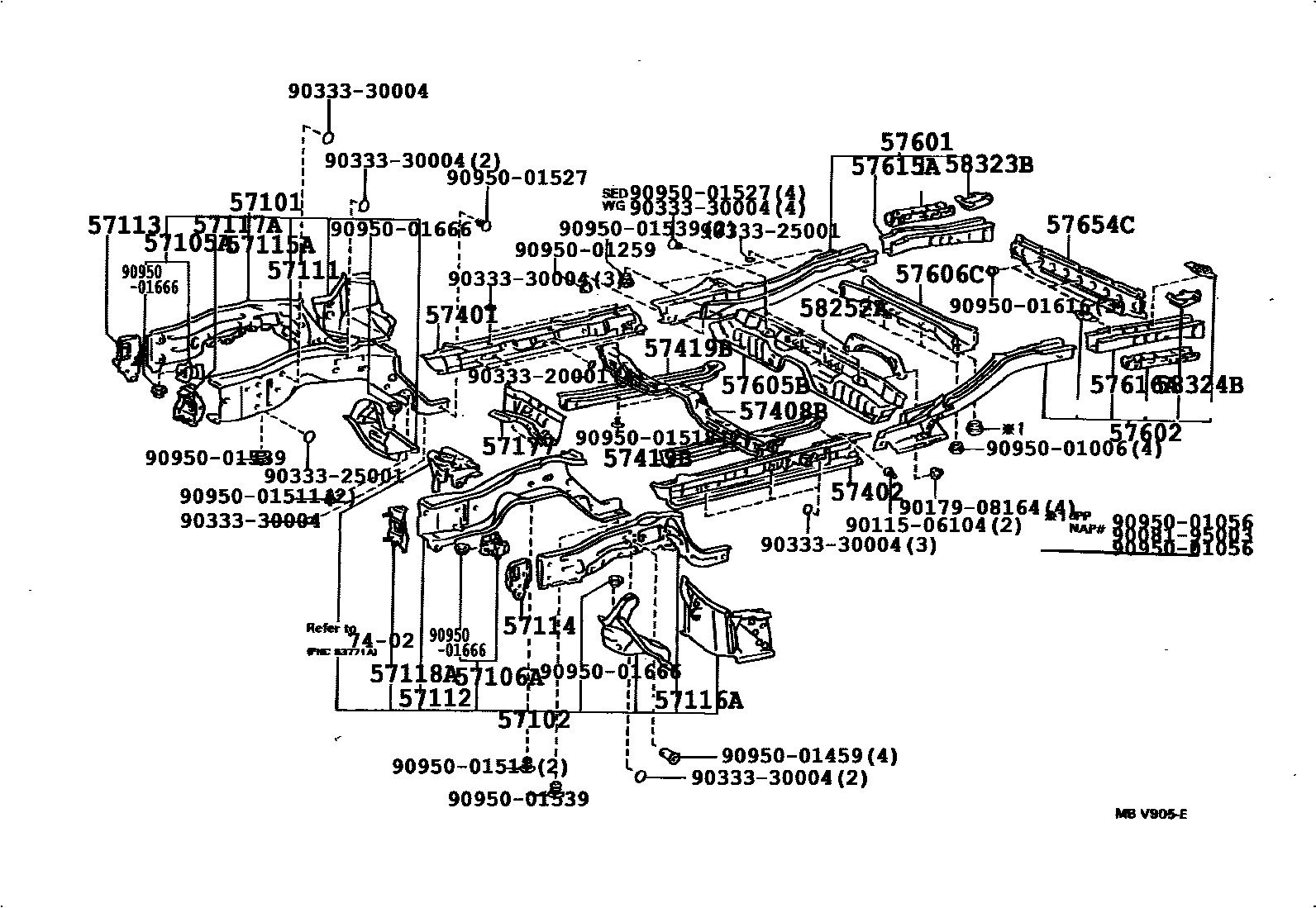

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-33010iMCV10,SXV10,VCV10..JPP199106-199608

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-33010iMCV10,SXV10,VCV10..JPP199106-199402

main57102-33020iMCV10,SXV10..JPP199402-199608

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-33010iSXV10,VCV10..JPP199106-199301

main57105-33011iMCV10,SXV10,VCV10..JPP199301-199608

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-33010iSXV10,VCV10..JPP199106-199301

main57106-33011iMCV10,SXV10,VCV10..JPP199301-199608

57111MEMBER, FRONT SIDE, RH

main57111-33010iMCV10,SXV10,VCV10..JPP199106-199608

57112MEMBER, FRONT SIDE, LH

main57112-33010iMCV10,SXV10,VCV10..JPP199106-199402

main57112-33020iMCV10,SXV10..JPP199402-199608

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-33010iMCV10,SXV10,VCV10..JPP199106-199608

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-33010iMCV10,SXV10,VCV10..JPP199106-199608

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-33010iMCV10,SXV10,VCV10..JPP199106-199608

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-33010iMCV10,SXV10,VCV10..JPP199106-199608

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-33010iMCV10,SXV10,VCV10..JPP199106-199402

main57117-41010iMCV10,SXV10..JPP199402-199608

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-33010iMCV10,SXV10,VCV10..JPP199106-199402

main57118-41010iMCV10,SXV10..JPP199402-199608

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57177-33010iMCV10,SXV10,VCV10..JPP199106-199608

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-33010iSXV10,VCV10..JPP199106-199308

main57401-33020iMCV10,SXV10..JPP199308-199608

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-33010iSXV10,VCV10..JPP199106-199308

main57402-33020iMCV10,SXV10..JPP199308-199608

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-33010iSXV10,VCV10..JPP199106-199308

main57408-33020iMCV10,SXV10..JPP199308-199608

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-33010×2iMCV10,SXV10,VCV10..JPP199106-199608

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-33010iSXV10,VCV10..JPP199106-199308

main57601-33020iMCV10,SXV10..JPP199308-199608

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-33010iSXV10,VCV10..JPP199106-199308

main57602-33030iMCV10,SXV10..JPP199308-199311

main57602-33031iMCV10,SXV10..JPP199311-199608

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-33010iSXV10,VCV10..JPP199106-199308

main57605-33020iMCV10,SXV10..JPP199308-199608

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-33010iMCV10,SXV10,VCV10..JPP199106-199608

main57606-33030iSXV10,VCV10..JPP199106-199308

W(ABS)

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-33900iMCV10,SXV10,VCV10..JPP199106-199608

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-33900iMCV10,SXV10,VCV10..JPP199106-199311

main57616-33901iMCV10,SXV10..JPP199311-199608

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-33010iMCV10,SXV10,VCV10..JPP199106-199608

58252ABRACE, FLOOR PANEL, REAR

main58252-33010iMCV10,SXV10,VCV10..JPP199106-199608

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main58303-33010iMCV10,SXV10,VCV10..JPP199106-199608

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58303-33020iMCV10,SXV10,VCV10..JPP199106-199608

7402BATTERY CARRIER

→ Go to FIG 74-02

9008195003

main90081-95003

9011506104

main90115-06104

9017908164

main90179-08164

9033320001

main90333-20001

9033325001

main90333-25001

9033330004

main90333-30004

9095001006

main90950-01006

9095001056

main90950-01056

9095001259

main90950-01259

9095001459

main90950-01459

9095001511

main90950-01511

9095001518

main90950-01518

9095001527

main90950-01527

9095001539

main90950-01539

9095001616

main90950-01616

9095001666

main90950-01666

44 parts on this diagram · 1 diagram in section
