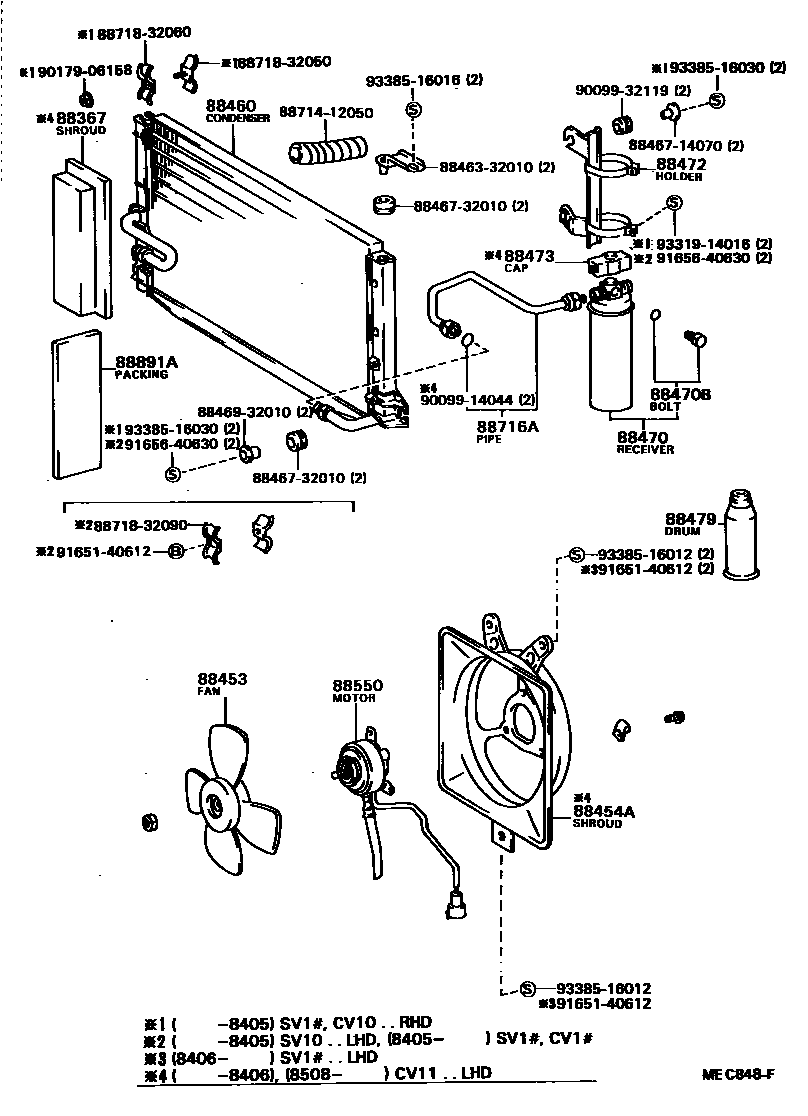

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0004 1

88367SHROUD, COOLER BLOWER FAN

main16712-63020iSV11..ARL198303-198406

88453FAN, COOLING (FOR CONDENSER)

main88453-32010iSV1#198210-198406

main88453-32020iSV1#198408-198610

88454ASHROUD, FAN

main16712-64040iCV11..LHD198508-198610

main88454-32020iSV1#..RHD198210-198406

88460CONDENSER ASSY, COOLER

main88460-32010iCV10,SV1#..EUG198210-198406

main88460-32040iCV1#..4FC198406-198610

88470RECEIVER & DRYER ASSY, COOLER

main88470-12061iSV11..ARL;CV10,SV1#..EUG198210-198405

main88470-14010iCV1#,SV1#198408-198610

88470BBOLT, FUSE

main88475-12020iCV1#,SV1#198408-198610

88472BRACKET, RECEIVER TANK, NO.1

main88473-32010iSV11..ARL;CV10,SV1#..EUG198210-198408

88473CAP, COOLER RECEIVER TANK

main88894-12111iSV1#..EUG;SV11..ARL198210-198406

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iSV11..ARL;CV1#,SV1#..EUG198210-198610

400G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-64020iCV11..LHD198508-198610

main88550-32010iSV1#..EUG;SV11..ARL198210-198406

main88550-32020iSV1#198408-198610

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-32120iSV1#198408-198610

main88716-32150iCV1#..RHD198308-198610

88891APACKING A (FOR COOLER)

main88578-32020×3iSV1#..RHD198210-198610

8846332010BRACKET, COOLER CONDENSER, NO.1

main88463-32010

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8846732010CUSHION, COOLER CONDENSER, NO.1

main88467-32010

8846932010SWITCH, PRESSURE CONTROL

main88469-32010

8871412050HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-12050

8871832050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32050

8871832060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32060

8871832090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32090

9009914044

main90099-14044

9009932119

main90099-32119

9017906158

main90179-06158

9165140612

main91651-40612

9165640630

main91656-40630

9331914016

main93319-14016

9338516012

main93385-16012

9338516016

main93385-16016

9338516030

main93385-16030

29 parts on this diagram · 3 diagrams in section
