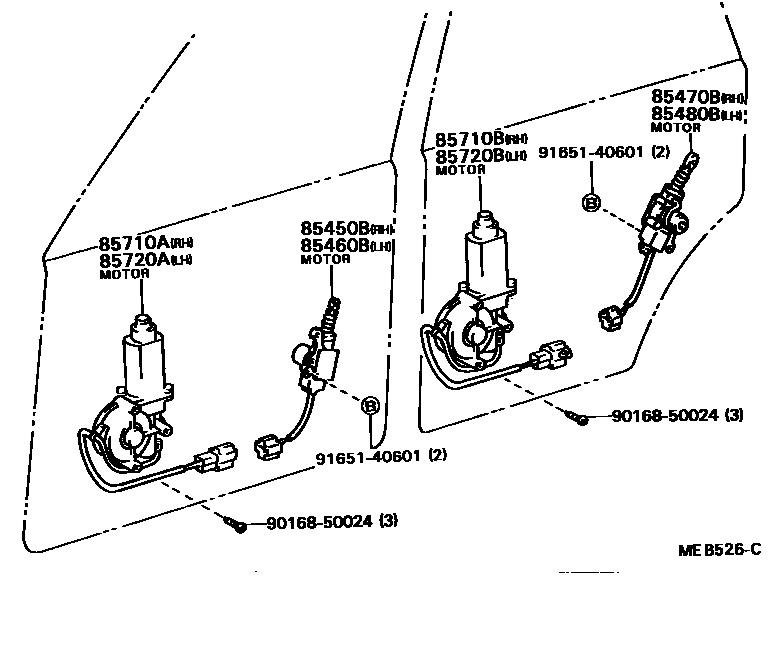

DOOR MOTOR & DOOR SOLENOID

85450BMOTOR ASSY, DOOR CONTROL, FRONT RH

main85450-32010iSV11..EUG;SV11..ARL198303-198406

main85450-32030iSV11198406-198610

85460BMOTOR ASSY, DOOR CONTROL, FRONT LH

main85460-32010iSV11..EUG;SV11..ARL198303-198406

main85460-32030iSV11198406-198610

85470BMOTOR ASSY, DOOR CONTROL, REAR RH

main85470-32010iSV11..EUG;SV11..ARL198303-198406

85480BMOTOR ASSY, DOOR CONTROL, REAR LH

main85480-32010iSV11..EUG;SV11..ARL198303-198406

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-32010iSV11..EUG;SV11..ARL198303-198406

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-32020iSV11..EUG;SV11..ARL198303-198406

main85710-32030iSV11198406-198610

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-32010iSV11..EUG;SV11..ARL198303-198406

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-32020iSV11..EUG;SV11..ARL198303-198406

main85720-32030iSV11198406-198610

9016850024

main90168-50024

9165140601

main91651-40601

10 parts on this diagram · 1 diagram in section
