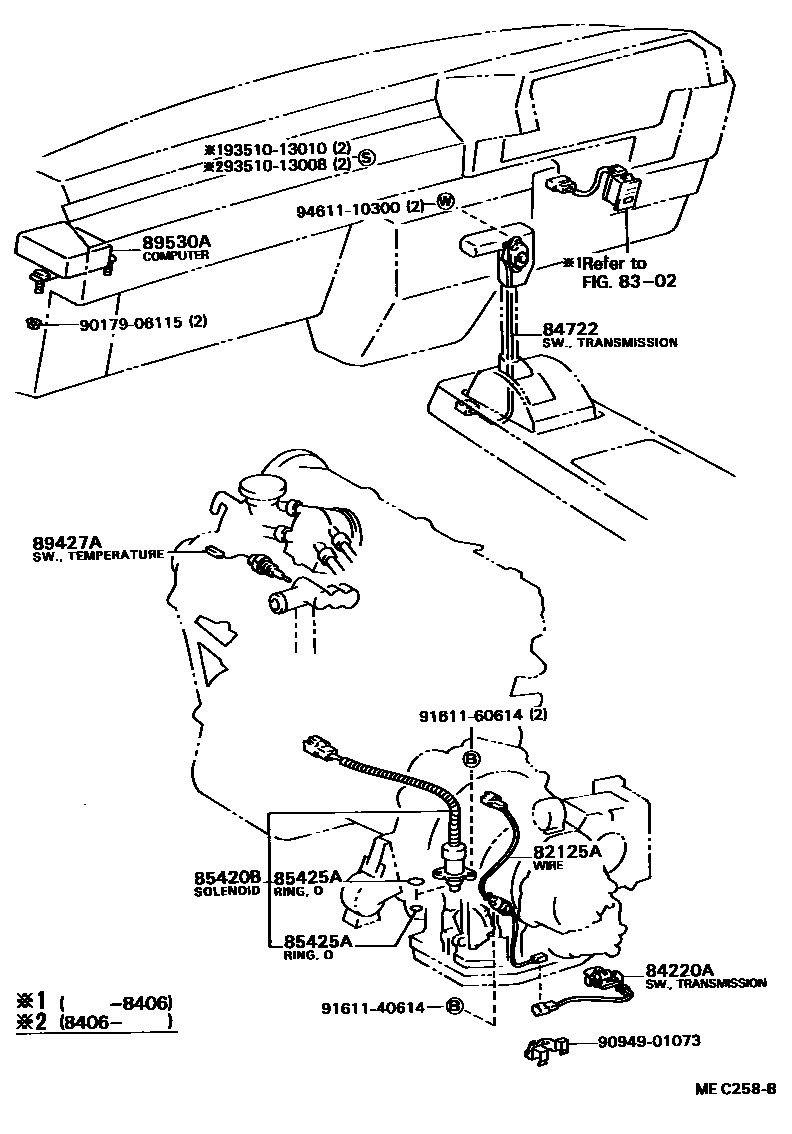

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-32020iCV1#..LHD..4FC198308-198610

8302INDICATOR

→ Go to FIG 83-02

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-32010iSV1#..4FC..EUR198210-198610

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-03iCV1#,SV1#..4FC198406-198610

SHADOW GRAY,GRAY,TRIM1#

main84722-20040-04iCV1#,SV1#..4FC198406-198610

BLUE,BLUE,TRIM8#

main84722-20040-05iCV1#,SV1#..4FC198408-198610

BEIGE,BEIGE,TRIM4#

main84722-32010iCV10,SV1#..4FC198210-198406

85420BSOLENOID ASSY, TRANSMISSION

main85420-32010iCV1#,SV1#..4FC198210-198605

main85420-32011iCV11,SV1#..4FC198605-198610

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iCV11,SV1#..4FC198605-198610

ID=7

main96721-19007iCV1#,SV1#..4FC198210-198605

ID=7

main96721-19017iCV1#,SV1#..4FC198210-198610

ID=17

89427ASWITCH, TEMPERATURE

main89427-32010iSV1#..4FC198210-198610

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-32040iSV1#..4FC..EUR198210-198308

main89530-32041iSV1#..4FC..EUR198308-198610

main89530-32060iCV1#..LHD..4FC198308-198610

9017906115

main90179-06115

9094901073

main90949-01073

9161140614

main91611-40614

9161160614

main91611-60614

9351013008

main93510-13008

9351013010

main93510-13010

9461110300

main94611-10300

15 parts on this diagram · 1 diagram in section
