INTERIOR LAMP

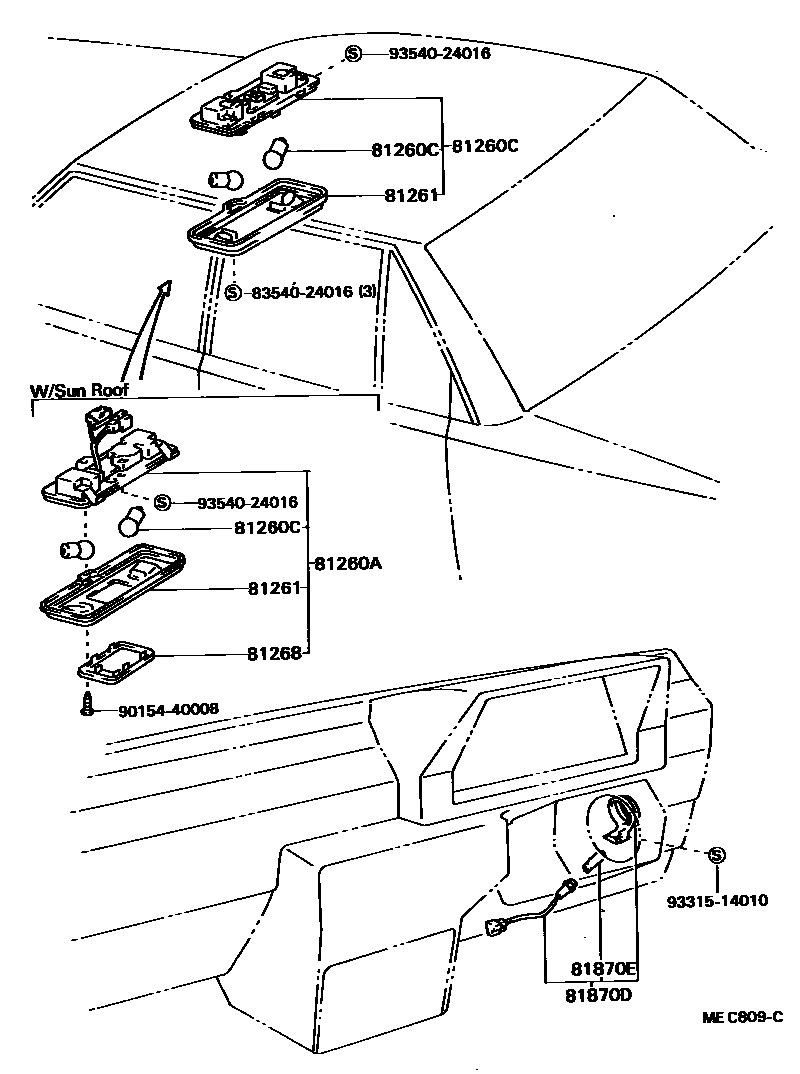

Parts diagram

81260ALAMP ASSY, MAP

main81260-32010-03i198303-198305

GRAY,GRAY,TRIM1#,8#

main81260-32010-05i198303-198305

BEIGE,BEIGE,TRIM4#

main81260-32020-03i198210-198610

W/SUN ROOF,GRAY,GRAY,TRIM1#,8#

main81260-32020-05i198210-198610

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main81260-32030-03i198305-198402

GRAY,GRAY,TRIM1#,8#

main81260-32030-05i198305-198402

BEIGE,BEIGE,TRIM4#

main81260-32031-03i198508-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

main81260-32031-05i198408-198508

BEIGE,BEIGE,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-12005×2i198210-198610

12V 8W,12V 8W

main90981-12014×2i198301-198508

12V 10W,12V 10W

81261LENS AND COVER, MAP LAMP

main81268-32010-03i198303-198305

GRAY,GRAY,TRIM1#,8#

main81268-32010-05i198303-198305

BEIGE,BEIGE,TRIM4#

main81268-32020-03i198210-198308

W/SUN ROOF,GRAY,GRAY,TRIM1#,8#

main81268-32020-05i198210-198308

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main81268-32021-03i198308-198610

W/SUN ROOF,GRAY,GRAY,TRIM1#,8#

main81268-32021-05i198308-198610

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main81268-32030-03i198305-198402

GRAY,GRAY,TRIM1#,8#

main81268-32030-05i198305-198402

BEIGE,BEIGE,TRIM4#

main81268-32031-03i198402-198508

SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

main81268-32031-05i198408-198508

BEIGE,BEIGE,TRIM4#

81268CAP MAP LAMP

main81267-32020-03i198210-198610

W/SUN ROOF,GRAY,GRAY,TRIM1#,8#

main81267-32020-05i198210-198610

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

81870DLAMP ASSY, KEY CYLINDER

main81870-32010i198406-198610

81870EBULB, KEY CYLINDER LAMP

main90981-11018i198406-198610

12V 1.2W W/O SOCKET,12V 1.2W

8354024016SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER)

main83540-24016

9015440008

main90154-40008

9331514010

main93315-14010

9354024016

main93540-24016

10 parts on this diagram · 2 diagrams in section
