INSTRUMENT PANEL & GLOVE COMPARTMENT

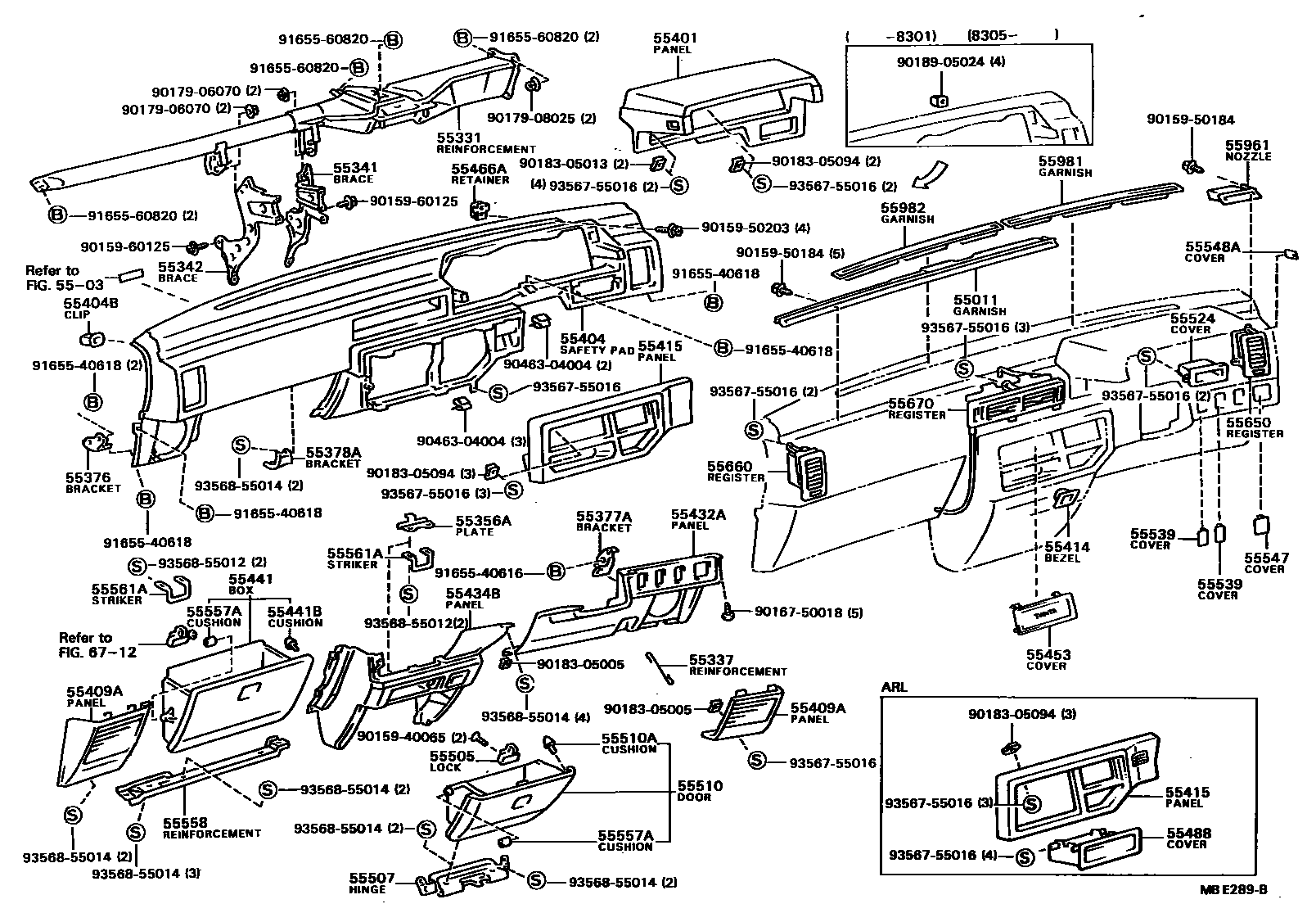

Parts diagram
55011GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD
main55011-32011-01i198210-198406
BLACK,BLACK,TRIM1#,4#,8#
main55011-32011-06i198210-198305
DEEP BROWN,BROWN,TRIM4#
main55011-32020-01i198210-198406
BLACK,BLACK,TRIM1#,4#,8#
main55011-32020-06i198210-198305
DEEP BROWN,BROWN,TRIM4#
main55011-32030-01i198406-198610
BLACK,BLACK,TRIM1#,4#,8#
main55011-32040-01i198406-198610
BLACK,BLACK,TRIM1#,4#,8#
5503COWL PANEL & WINDSHIELD GLASS
→ Go to FIG 55-03
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-32010i198210-198403
main55330-32011i198403-198406
main55330-32020i198210-198403
main55330-32021i198403-198406
main55330-32030i198406-198508
main55330-32031i198508-198610
main55330-32040i198406-198610
55337REINFORCEMENT, INSTRUMENT PANEL SUB
main55337-32010i198210-198610
55341BRACE, INSTRUMENT PANEL, NO.1
main55306-32010i198210-198406
main55306-32020i198210-198406
main55306-32030i198406-198610
main55306-32050i198406-198610
55342BRACE, INSTRUMENT PANEL, NO.2
main55307-32010i198210-198610
main55307-32020i198210-198610
55356APLATE, INSTRUMENT PANEL, LOWER
main55356-32010i198210-198406
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
main55376-32010i198210-198610
main55376-32020i198210-198610
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
main55377-32010i198210-198610
main55377-32020i198210-198610
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
main55378-32030i198210-198610
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
main55404-32010-03i198210-198305
DARK GRAY,GRAY,TRIM1#
main55404-32010-04i198210-198305
BLUE,BLUE,TRIM8#
main55404-32010-06i198210-198305
DARK BROWN,BROWN,TRIM4#
main55404-32010-13i198305-198406
DARK GRAY,GRAY,TRIM1#
main55404-32010-14i198305-198406
BLUE,BLUE,TRIM8#
main55404-32010-16i198305-198406
DARK BROWN,BROWN,TRIM4#
main55404-32020-03i198210-198305
DARK GRAY,GRAY,TRIM1#
main55404-32020-04i198210-198305
BLUE,BLUE,TRIM8#
main55404-32020-06i198210-198305
DARK BROWN,BROWN,TRIM4#
main55404-32020-13i198305-198406
DARK GRAY,GRAY,TRIM1#
main55404-32020-14i198305-198406
BLUE,BLUE,TRIM8#
main55404-32020-16i198305-198406
DARK BROWN,BROWN,TRIM4#
main55404-32030-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55404-32030-04i198406-198610
BLUE,BLUE,TRIM8#
main55404-32030-05i198408-198610
BEIGE,BEIGE,TRIM4#
main55404-32040-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55404-32040-04i198406-198610
BLUE,BLUE,TRIM8#
main55404-32040-05i198408-198610
BEIGE,BEIGE,TRIM4#
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
main55401-32010-03i198210-198406
DARK GRAY,GRAY,TRIM1#
main55401-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55401-32010-16i198210-198406
DARK BROWN,BROWN,TRIM4#
main55401-32020-03i198210-198406
DARK GRAY,GRAY,TRIM1#
main55401-32020-04i198210-198406
BLUE,BLUE,TRIM8#
main55401-32020-16i198210-198406
DARK BROWN,BROWN,TRIM4#
main55401-32030-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55401-32030-04i198406-198610
BLUE,BLUE,TRIM8#
main55401-32030-05i198408-198610
BEIGE,BEIGE,TRIM4#
main55401-32040-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55401-32040-04i198406-198610
BLUE,BLUE,TRIM8#
main55401-32040-05i198408-198610
BEIGE,BEIGE,TRIM4#
55404BCLIP, SAFETY PAD SET
main90467-14002i198210-198610
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
main55472-32010-03i198210-198406
RH,GRAY,GRAY,TRIM1#
main55472-32010-04i198210-198610
RH,BLUE,BLUE,TRIM8#
main55472-32010-05i198408-198610
RH,BEIGE,BEIGE,TRIM4#
main55472-32010-06i198210-198406
RH,BROWN,BROWN,TRIM4#
main55472-32010-13i198406-198610
RH,SHADOW GRAY,SHADOW GRAY,TRIM1#
main55472-32020-03i198210-198406
LH,GRAY,GRAY,TRIM1#
main55472-32020-04i198210-198610
LH,BLUE,BLUE,TRIM8#
main55472-32020-05i198408-198610
LH,BEIGE,BEIGE,TRIM4#
main55472-32020-06i198210-198406
LH,BROWN,BROWN,TRIM4#
main55472-32020-13i198406-198610
LH,SHADOW GRAY,SHADOW GRAY,TRIM1#
main55473-32010-03i198210-198406
LH,GRAY,GRAY,TRIM1#
main55473-32010-04i198210-198610
LH,BLUE,BLUE,TRIM8#
main55473-32010-05i198408-198610
LH,BEIGE,BEIGE,TRIM4#
main55473-32010-06i198210-198406
LH,BROWN,BROWN,TRIM4#
main55473-32010-13i198406-198610
LH,SHADOW GRAY,SHADOW GRAY,TRIM1#
main55473-32020-03i198210-198406
RH,GRAY,GRAY,TRIM1#
main55473-32020-04i198210-198610
RH,BLUE,BLUE,TRIM8#
main55473-32020-05i198408-198610
RH,BEIGE,BEIGE,TRIM4#
main55473-32020-06i198210-198406
RH,BROWN,BROWN,TRIM4#
main55473-32020-13i198406-198610
RH,SHADOW GRAY,SHADOW GRAY,TRIM1#
55414BEZEL, CIGAR LIGHTER HOLE
main55477-32010i198210-198406
main55477-32020-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55477-32020-04i198406-198610
BLUE,BLUE,TRIM8#
main55477-32020-05i198408-198610
BEIGE,BEIGE,TRIM4#
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
main55405-32010-01i198303-198305
BLACK,BLACK,TRIM1#,8#
main55405-32010-03i198305-198406
DARK GRAY,GRAY,TRIM1#
main55405-32010-04i198305-198406
BLUE,BLUE,TRIM8#
main55405-32010-06i198303-198305
DEEP BROWN,BROWN,TRIM4#
main55405-32010-16i198305-198406
DARK BROWN,BROWN,TRIM4#
main55405-32020-03i198308-198406
SWISS SPEC,DARK GRAY,GRAY,TRIM1#
main55405-32020-04i198308-198406
SWISS SPEC, BLUE,BLUE,TRIM8#
main55405-32020-16i198308-198406
SWISS SPEC,DARK BROWN,BROWN,TRIM4#
main55405-32030-01i198210-198305
BLACK,BLACK,TRIM1#,8#
main55405-32030-03i198305-198406
DARK GRAY,GRAY,TRIM1#
main55405-32030-04i198305-198406
BLUE,BLUE,TRIM8#
main55405-32030-06i198210-198305
DEEP BROWN,BROWN,TRIM4#
main55405-32030-16i198305-198406
DARK BROWN,BROWN,TRIM4#
main55405-32040-01i198210-198305
BLACK,BLACK,TRIM1#,8#
main55405-32040-03i198305-198406
DARK GRAY,GRAY,TRIM1#
main55405-32040-04i198305-198406
BLUE,BLUE,TRIM8#
main55405-32040-06i198210-198305
DEEP BROWN,BROWN,TRIM4#
main55405-32040-16i198305-198406
DARK BROWN,BROWN,TRIM4#
main55405-32050-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55405-32050-04i198406-198610
BLUE,BLUE,TRIM8#
main55405-32050-05i198408-198610
BEIGE,BEIGE,TRIM4#
main55405-32060-03i198406-198610
*IPM,SHADOW GRAY,SHADOW GRAY,TRIM1#
main55405-32060-04i198406-198610
*IPM,BLUE,BLUE,TRIM8#
main55405-32060-05i198408-198610
*IPM,BEIGE,BEIGE,TRIM4#
main55405-32070-03i198406-198610
*IPM,SHADOW GRAY,SHADOW GRAY,TRIM1#
main55405-32070-04i198406-198610
*IPM,BLUE,BLUE,TRIM8#
main55405-32070-05i198408-198610
*IPM,BEIGE,BEIGE,TRIM4#
main55405-32080-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55405-32080-04i198406-198610
BLUE,BLUE,TRIM8#
main55405-32080-05i198408-198610
BEIGE,BEIGE,TRIM4#
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
main55432-32010-03i198210-198406
GRAY,GRAY,TRIM1#
main55432-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55432-32010-06i198210-198406
BROWN,BROWN,TRIM4#
main55432-32020-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55432-32020-04i198406-198610
BLUE,BLUE,TRIM8#
main55432-32020-05i198408-198610
BEIGE,BEIGE,TRIM4#
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
main55434-32010-03i198210-198406
GRAY,GRAY,TRIM1#
main55434-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55434-32010-06i198210-198406
BROWN,BROWN,TRIM4#
main55434-32020-03i198210-198406
GRAY,GRAY,TRIM1#
main55434-32020-04i198210-198406
BLUE,BLUE,TRIM8#
main55434-32020-06i198210-198406
BROWN,BROWN,TRIM4#
main55434-32030-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55434-32030-04i198406-198610
BLUE,BLUE,TRIM8#
main55434-32030-05i198408-198610
BEIGE,BEIGE,TRIM4#
main55434-32040-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55434-32040-04i198406-198610
BLUE,BLUE,TRIM8#
main55434-32040-05i198408-198610
BEIGE,BEIGE,TRIM4#
55441BOX, INSTRUMENT PANEL
main55440-32010-03i198210-198406
GRAY,GRAY,TRIM1#
main55440-32010-04i198210-198610
BLUE,BLUE,TRIM8#
main55440-32010-05i198408-198610
BEIGE,BEIGE,TRIM4#
main55440-32010-06i198210-198406
BROWN,BROWN,TRIM4#
main55440-32010-13i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55440-32020-03i198303-198406
GRAY,GRAY,TRIM1#
main55440-32020-04i198303-198610
BLUE,BLUE,TRIM8#
main55440-32020-05i198408-198610
BEIGE,BEIGE,TRIM4#
main55440-32020-06i198303-198406
BROWN,BROWN,TRIM4#
main55440-32020-13i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
55441BCUSHION, INSTRUMENT PANEL BOX
main90541-03015i198210-198610
55453COVER, RADIO TUNER OPENING
main55522-14070i198210-198610
55466ARETAINER, INSTRUMENT PANEL SAFETY PAD
main55466-32020i198301-198305
55488COVER, STEREO OPENING
main55521-14050i198303-198610
main55521-14050i198308-198406
SWISS SPEC
main55521-14050i198406-198610
W/RADIO
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
main55560-32010-03i198210-198406
GRAY,GRAY,TRIM1#
main55560-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55560-32010-06i198210-198406
BROWN,BROWN,TRIM4#
main55560-32020-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55560-32020-04i198406-198610
BLUE,BLUE,TRIM8#
main55560-32020-05i198408-198610
BEIGE,BEIGE,TRIM4#
55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
main55505-32010i198210-198406
55510DOOR ASSY, GLOVE COMPARTMENT
main55550-32010-03i198210-198406
GRAY,GRAY,TRIM1#
main55550-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55550-32010-06i198210-198406
BROWN,BROWN,TRIM4#
main55550-32020-03i198303-198406
GRAY,GRAY,TRIM1#
main55550-32020-04i198303-198406
BLUE,BLUE,TRIM8#
main55550-32020-06i198303-198406
BROWN,BROWN,TRIM4#
main55550-32030-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55550-32030-04i198406-198610
BLUE,BLUE,TRIM8#
main55550-32030-05i198408-198610
BEIGE,BEIGE,TRIM4#
main55550-32040-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55550-32040-04i198406-198610
BLUE,BLUE,TRIM8#
main55550-32040-05i198408-198610
BEIGE,BEIGE,TRIM4#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
main90541-03015i198210-198610
55524COVER, SWITCH BACE HOLE
main55524-32010i198210-198406
main55524-32030i198210-198406
main55524-32040-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55524-32040-04i198406-198610
BLUE,BLUE,TRIM8#
main55524-32040-05i198408-198610
BEIGE,BEIGE,TRIM4#
55539COVER, SPARE SWITCH HOLE
main55539-32010-01i198210-198610
BLACK
55547COVER, REMOTE CONTROL MIRROR HOLE
main55547-32010i198210-198406
main74267-24010-01i198406-198610
BLACK
55548ACOVER, INSTRUMENT PANEL HOLE
main55548-32010-01i198210-198305
BLACK,BLACK,TRIM1#,8#
main55548-32010-03i198305-198406
DARK GRAY,GRAY,TRIM1#
main55548-32010-04i198305-198406
BLUE,BLUE,TRIM8#
main55548-32010-06i198210-198305
DEEP BROWN,BROWN,TRIM4#
main55548-32010-16i198305-198406
DARK BROWN,BROWN,TRIM4#
main55548-32020-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55548-32020-04i198406-198610
BLUE,BLUE,TRIM8#
main55548-32020-05i198408-198610
BEIGE,BEIGE,TRIM4#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
main55557-16010i198210-198610
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
main55558-32010i198210-198610
main55558-32020i198210-198610
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
main55561-32010i198210-198610
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-32010-03i198210-198406
GRAY,GRAY,TRIM1#
main55650-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55650-32010-06i198210-198406
BROWN,BROWN,TRIM4#
main55650-32020-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55650-32020-04i198406-198610
BLUE,BLUE,TRIM8#
main55650-32020-05i198408-198610
BEIGE,BEIGE,TRIM4#
main55650-32030-03i198406-198508
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55650-32030-04i198406-198508
BLUE,BLUE,TRIM8#
main55650-32030-05i198408-198508
BEIGE,BEIGE,TRIM4#
main55650-32031-03i198508-198510
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55650-32031-04i198508-198510
BLUE,BLUE,TRIM8#
main55650-32031-05i198508-198510
BEIGE,BEIGE,TRIM4#
main55650-32032-03i198510-198610
SHADOW GRAY,GRAY,TRIM1#
main55650-32032-04i198510-198610
BLUE,BLUE,TRIM8#
main55650-32032-05i198510-198610
BEIGE,BEIGE,TRIM4#
main55660-32010-03i198210-198406
GRAY,GRAY,TRIM1#
main55660-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55660-32010-06i198210-198406
BROWN,BROWN,TRIM4#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55650-32010-03i198210-198406
GRAY,GRAY,TRIM1#
main55650-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55650-32010-06i198210-198406
BROWN,BROWN,TRIM4#
main55660-32010-03i198210-198406
GRAY,GRAY,TRIM1#
main55660-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55660-32010-06i198210-198406
BROWN,BROWN,TRIM4#
main55660-32020-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55660-32020-04i198406-198610
BLUE,BLUE,TRIM8#
main55660-32020-05i198408-198610
BEIGE,BEIGE,TRIM4#
main55660-32030-03i198406-198508
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55660-32030-04i198406-198508
BLUE,BLUE,TRIM8#
main55660-32030-05i198408-198508
BEIGE,BEIGE,TRIM4#
main55660-32031-03i198508-198510
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55660-32031-04i198508-198510
BLUE,BLUE,TRIM8#
main55660-32031-05i198508-198510
BEIGE,BEIGE,TRIM4#
main55660-32032-03i198510-198610
SHADOW GRAY,GRAY,TRIM1#
main55660-32032-04i198510-198610
BLUE,BLUE,TRIM8#
main55660-32032-05i198510-198610
BEIGE,BEIGE,TRIM4#
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
main55670-32010-03i198210-198406
GRAY,GRAY,TRIM1#
main55670-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55670-32010-06i198210-198406
BROWN,BROWN,TRIM4#
main55670-32020-03i198210-198406
GRAY,GRAY,TRIM1#
main55670-32020-04i198210-198406
BLUE,BLUE,TRIM8#
main55670-32020-06i198210-198406
BROWN,BROWN,TRIM4#
main55670-32030-03i198406-198508
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55670-32030-04i198406-198508
BLUE,BLUE,TRIM8#
main55670-32030-05i198408-198508
BEIGE,BEIGE,TRIM4#
main55670-32031-03i198508-198601
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55670-32031-04i198508-198601
BLUE,BLUE,TRIM8#
main55670-32031-05i198508-198601
BEIGE,BEIGE,TRIM4#
main55670-32032-03i198601-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55670-32032-04i198601-198610
BLUE,BLUE,TRIM8#
main55670-32032-05i198601-198610
BEIGE,BEIGE,TRIM4#
main55670-32040-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55670-32040-04i198406-198610
BLUE,BLUE,TRIM8#
main55670-32040-05i198408-198610
BEIGE,BEIGE,TRIM4#
55961NOZZLE, SIDE DEFROSTER, NO.1
main55961-32010-01i198210-198406
BLACK,BLACK,TRIM1#,4#,8#
main55961-32010-06i198210-198305
DEEP BROWN,BROWN,TRIM4#
main55961-32030-01i198406-198610
BLACK,BLACK,TRIM1#,4#,8#
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-32010-03i198210-198406
DARK GRAY,GRAY,TRIM1#
main55981-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55981-32010-06i198210-198406
DARK BROWN,BROWN,TRIM4#
main55981-32020-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55981-32020-04i198406-198610
BLUE,BLUE,TRIM8#
main55981-32020-05i198408-198610
BEIGE,BEIGE,TRIM4#
55982GARNISH, DEFROSTER NOZZLE, NO.2
main55982-32010-03i198210-198406
DARK GRAY,GRAY,TRIM1#
main55982-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main55982-32010-06i198210-198406
DARK BROWN,BROWN,TRIM4#
main55982-32020-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main55982-32020-04i198406-198610
BLUE,BLUE,TRIM8#
main55982-32020-05i198408-198610
BEIGE,BEIGE,TRIM4#
6712LOCK CYLINDER SET
→ Go to FIG 67-12
9015940065
main90159-40065
9015950184
main90159-50184
9015950203
main90159-50203
9015960125
main90159-60125
9016750018
main90167-50018
9017906070
main90179-06070
9017908025
main90179-08025
9018305005
main90183-05005
9018305013
main90183-05013
9018305094
main90183-05094
9018905024
main90189-05024
9046304004
main90463-04004
9165540616
main91655-40616
9165540618
main91655-40618
9165560820
main91655-60820
9356755016
main93567-55016
9356855012
main93568-55012
9356855014
main93568-55014

59 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
