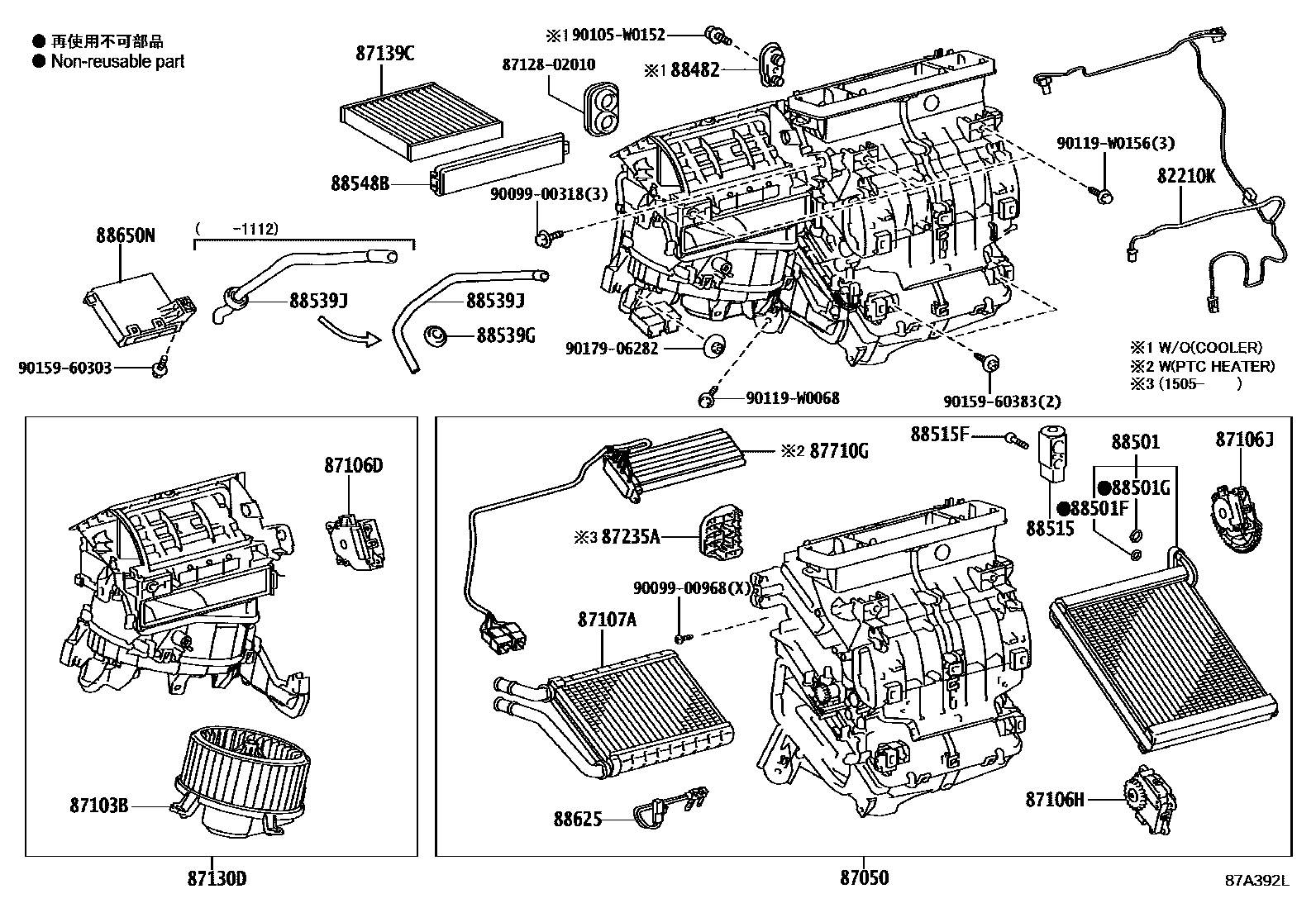

82210KHARNESS ASSY, AIR CONDITIONER

main82212-02010i201111-201505

main82212-02020i201505

main82212-02050supersedes 82212-02010i201505

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER; BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&PTC HEATER-WITHOUT & WITH(STOVE HEATER)&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); NORDIC SPEC&BASE PACKAGE&COLD AREA SPEC&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

main82212-02060supersedes 82212-02020i201111-201505

BASE PACKAGE

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02830i200811-201104

main87050-02840i201111-201505

main87050-02890supersedes 87050-02A00i201111-201505

HEATER-WITH(STOVE HEATER)

main87050-05690supersedes 87050-02R90i201505-201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

main87050-05700supersedes 87050-02S31i201505-201607

main87050-05730supersedes 87050-02830i200811-200906

BASE PACKAGE

main87050-05731i201111-201505

BASE PACKAGE

main87050-05740supersedes 87050-02840i200811-200906

BASE PACKAGE

main87050-05741i201111-201505

BASE PACKAGE

main87050-05790i201505

main87050-05830supersedes 87050-02R80i201505-201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER

main87050-02A00i200811-201111

NORWAY,SWEDEN,FINLAND,DENMARK SPEC&COLD AREA SPEC; WEST RUSSIA SPEC&COLD AREA SPEC

main87050-02R80supersedes 87050-02S21i201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER

main87050-02R90i201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

main87050-02S70supersedes 87050-02T31i201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&PTC HEATER-WITHOUT & WITH(STOVE HEATER)&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); PTC HEATER-WITHOUT & WITH(STOVE HEATER)

main87050-02S80i201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER

main87050-02S90i201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

main87050-02T10supersedes 87050-02S90i201607

NORDIC SPEC&BASE PACKAGE&COLD AREA SPEC&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); NORDIC SPEC&COLD AREA SPEC

main87050-02T21supersedes 87050-02T31i201607

PTC HEATER-WITHOUT & WITH(STOVE HEATER)

main87050-02T51supersedes 87050-02T41i201607

NORDIC SPEC&COLD AREA SPEC

main87050-05720supersedes 87050-05820i201505-201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&PTC HEATER-WITHOUT & WITH(STOVE HEATER)&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); PTC HEATER-WITHOUT & WITH(STOVE HEATER)

main87050-05760i200811-200906

BASE PACKAGE&HEATER-WITH(STOVE HEATER); BELGIUM SPEC&BASE PACKAGE; HEATER-WITH(STOVE HEATER)

main87050-05761i201111-201505

BASE PACKAGE&HEATER-WITH(STOVE HEATER); BELGIUM SPEC&BASE PACKAGE; HEATER-WITH(STOVE HEATER)

main87050-05770supersedes 87050-05761i200811-200906

BASE PACKAGE; NORWAY,SWEDEN,FINLAND,DENMARK SPEC&COLD AREA SPEC; WEST RUSSIA SPEC&COLD AREA SPEC

main87050-05771i200907-201111

BASE PACKAGE; MANUAL AIR CONDITIONER PACKAGE; NORWAY,SWEDEN,FINLAND,DENMARK SPEC&COLD AREA SPEC; NORWAY,SWEDEN,FINLAND,DENMARK SPEC&MANUAL AIR CONDITIONER PACKAGE&COLD AREA SPEC; WEST RUSSIA SPEC&COLD AREA SPEC; WEST RUSSIA SPEC&MANUAL AIR CONDITIONER PACKAGE&COLD AREA SPEC

main87050-05780i201505-201607

NORDIC SPEC&BASE PACKAGE&COLD AREA SPEC&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); NORDIC SPEC&COLD AREA SPEC

main87050-05800supersedes 87050-05790i201505-201607

NORDIC SPEC&COLD AREA SPEC

main87050-05810supersedes 87050-05820i201505-201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER

main87050-05820supersedes 87050-02T31i201607

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE

main87050-05840supersedes 87050-02S21i201607

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02130i201505

main87103-02150i201111-201505

main87103-05050supersedes 87103-02130i201505

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER

main87103-05060supersedes 87103-02150i200811-201111

BASE PACKAGE; BASE PACKAGE&HEATER-WITH(STOVE HEATER); BELGIUM SPEC&BASE PACKAGE

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-02160i200811-201111

main87106-02180i201505

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-02120i200811-201110

main87106-02270i201111-201505

main87106-05040i201111-201505

BASE PACKAGE; BASE PACKAGE&HEATER-WITH(STOVE HEATER); BELGIUM SPEC&BASE PACKAGE

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-02140i200811-201104

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02150i201505

87130DBLOWER ASSY

main87130-02271supersedes 87130-02B10i200811-201104

main87130-02281supersedes 87130-02A80i201111-201505

main87130-02311supersedes 87130-02321i201505

main87130-05171supersedes 87130-02271i201111-201505

BASE PACKAGE

main87130-05181supersedes 87130-02281i201111-201505

BASE PACKAGE

main87130-02321i201111-201505

NORWAY,SWEDEN,FINLAND,DENMARK SPEC&COLD AREA SPEC

main87130-02A30supersedes 87130-02A70i201607

PTC HEATER-WITHOUT & WITH(STOVE HEATER)

main87130-02A70supersedes 87130-02A30i201607

NORDIC SPEC&COLD AREA SPEC

main87130-02A90supersedes 87130-02A80i201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER

main87130-02B00i201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

main87130-02B20supersedes 87130-02A70i201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER; NORDIC SPEC&BASE PACKAGE&COLD AREA SPEC&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); NORDIC SPEC&COLD AREA SPEC

main87130-02B30i201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&PTC HEATER-WITHOUT & WITH(STOVE HEATER)&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); PTC HEATER-WITHOUT & WITH(STOVE HEATER)

main87130-05191supersedes 87130-02321i200811-201104

BASE PACKAGE&HEATER-WITH(STOVE HEATER)

main87130-05201i201505-201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER; NORDIC SPEC&BASE PACKAGE&COLD AREA SPEC&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); NORDIC SPEC&COLD AREA SPEC

87139CFILTER, CLEAN AIR

main87139-02020i200811-201111

main87139-0D070i201303-201505

POLLEN FILTER

main87139-50100i201208-201505

*DPF

87235ABRACKET, HEATER COVER

main87235-05010i201505

87710GQUICK HEATER ASSY

main87710-02010i200811-201111

main87710-02020i200811-201111

NORWAY,SWEDEN,FINLAND,DENMARK SPEC&COLD AREA SPEC; WEST RUSSIA SPEC&COLD AREA SPEC

main87710-02070i201505

main87710-02100i201505

88482CAP, COOLER

main88482-26040i201505

BASE PACKAGE; BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02201i200811-201104

main88501-02202i201108-201111

main88501-02290i201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

main88501-02300i201607

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90068-14037i201505-201607

ID=10.8,OD=15.6

main90099-14120i201111-201505

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14038i201505-201607

ID=13.4,OD=18.2

main90099-14121i200811-201108

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-02150i200811-201104

main88515-02520i201111-201505

main88515-48090i201607

main88515-64010i201607

main88515-68010i201505-201607

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2i201410-201505

main90099-04597×2i201111-201410

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030i201112-201505

88539JHOSE, DRAIN COOLER

main88539-02100i200811-201104

main88539-02110i201111-201112

main88539-02250i201112-201505

main88539-02260i201505

88548BCASE, AIR FILTER

main88548-02060i200811-201111

main88548-02070i201505

88625THERMISTOR, COOLER, NO.1

main88625-02110i201111-201505

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-05220i200811-200812

BASE PACKAGE; BASE PACKAGE&HEATER-WITH(STOVE HEATER); BELGIUM SPEC&BASE PACKAGE; HEATER-WITH(STOVE HEATER)

main88650-05221supersedes 88650-05251i201111-201112

BASE PACKAGE; BASE PACKAGE&HEATER-WITH(STOVE HEATER); BELGIUM SPEC&BASE PACKAGE; HEATER-WITH(STOVE HEATER)

main88650-05222i201201-201505

BASE PACKAGE; BASE PACKAGE&HEATER-WITH(STOVE HEATER); BELGIUM SPEC&BASE PACKAGE; HEATER-WITH(STOVE HEATER)

main88650-05230supersedes 88650-05250i200811-200812

BASE PACKAGE; NORWAY,SWEDEN,FINLAND,DENMARK SPEC&COLD AREA SPEC; WEST RUSSIA SPEC&COLD AREA SPEC

main88650-05231supersedes 88650-05252i201111-201112

BASE PACKAGE; NORWAY,SWEDEN,FINLAND,DENMARK SPEC&COLD AREA SPEC; WEST RUSSIA SPEC&COLD AREA SPEC

main88650-05232i201201-201505

BASE PACKAGE; NORWAY,SWEDEN,FINLAND,DENMARK SPEC&COLD AREA SPEC

main88650-05240i200811-200812

HEATER-WITH(STOVE HEATER)

main88650-05241i200901-201106

HEATER-WITH(STOVE HEATER)

main88650-05242i201111-201505

HEATER-WITH(STOVE HEATER)

main88650-05252i201111-201505

NORWAY,SWEDEN,FINLAND,DENMARK SPEC&COLD AREA SPEC

main88650-05300i201505-201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER

main88650-05310i201505-201607

main88650-05340i201607

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER); BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER

main88650-05350i201607

main88650-05250i200811-200812

NORWAY,SWEDEN,FINLAND,DENMARK SPEC&COLD AREA SPEC; WEST RUSSIA SPEC&COLD AREA SPEC

main88650-05251i200901-201106

NORWAY,SWEDEN,FINLAND,DENMARK SPEC&COLD AREA SPEC; WEST RUSSIA SPEC&COLD AREA SPEC

8712802010GROMMET, HEATER

main87128-02010

9009900318

main90099-00318

9009900968

main90099-00968

90105W0152
