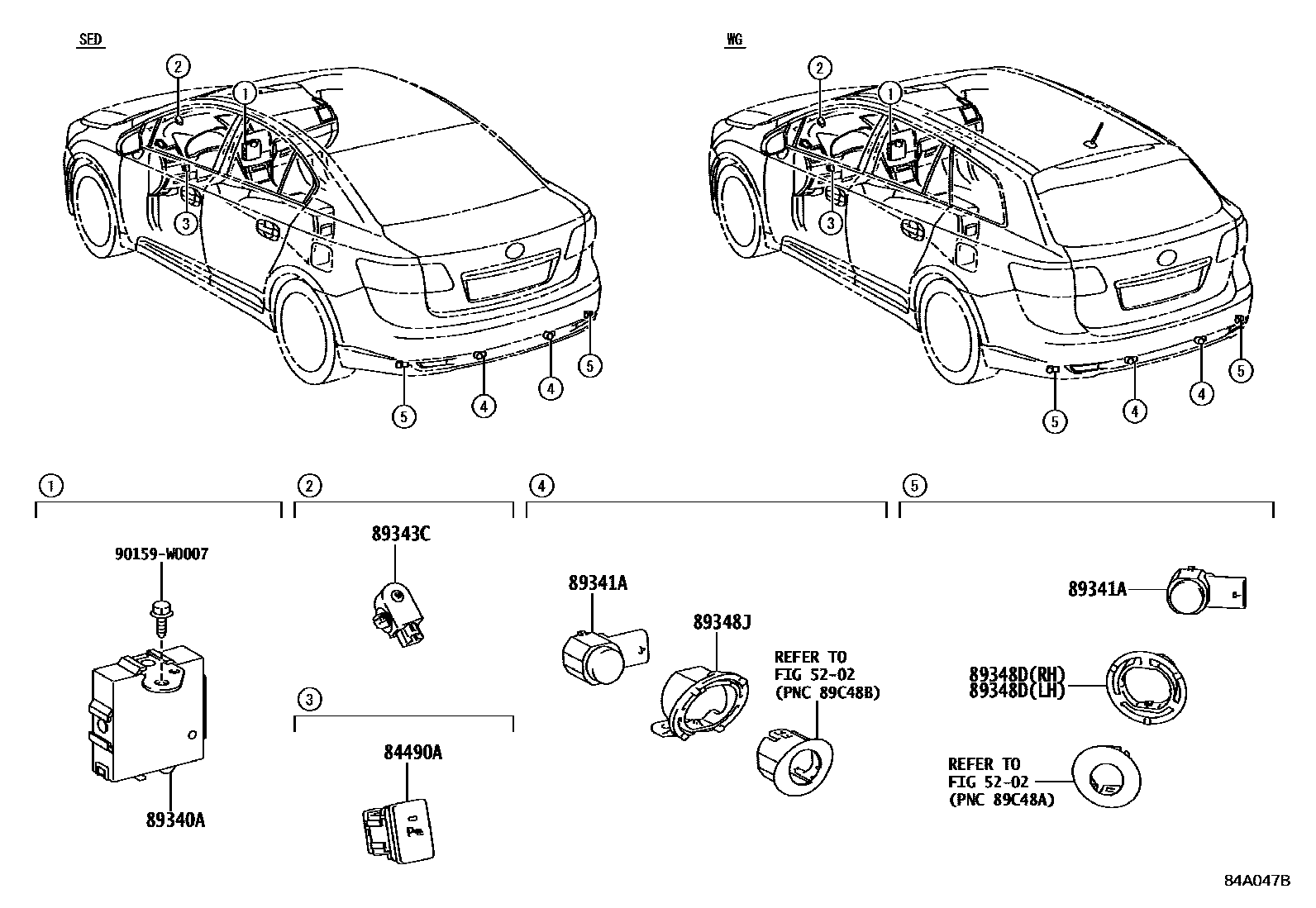

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1 0004 1

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-05010iADT271..6FC..G;ADT271..RHD..DCR;ADT271..LHD..6F..(E,G);ADT270,ZRT27#..(E,G)..(DCR,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH

main84490-05011iADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM)201502

CLEARANCE & BACK SONAR-WITH

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-05011iADT270..LHD..F200811-201104

CLEARANCE & BACK SONAR-WITH

main89340-05021iADT271..WG..6FC..G;ADT271..RHD..WG..DCR;ADT270,ZRT27#..WG..(E,G);ADT271..LHD..WG..6F..(E,G)200811-201111

CLEARANCE & BACK SONAR-WITH

main89340-05022iADT27#,ZRT27#..WG..(E,G)201111

CLEARANCE & BACK SONAR-WITH

main89340-05030iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111

CLEARANCE & BACK SONAR-WITH

89341ASENSOR, ULTRASONIC, NO.1

main89341-05010-A0×4iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040

main89341-05010-A1×4iADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM)201302-201505

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070

main89341-05010-B0×4iADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3

main89341-05010-B2×4iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7

main89341-05010-B3×4iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6

main89341-05010-B4×4iADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2

main89341-05010-C0×4iADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,BLACK MC.,209

main89341-05010-D0×4iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3

main89341-05010-D1×4iADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,DK RED MC,3Q7

main89341-05010-E0×4iADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM)201402-201505

CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8

main89341-05010-G1×4iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7

main89341-05010-J0×4iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6

main89341-05010-J1×4iADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5

main89341-05010-K0×4iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.PURPLE,9AK

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-30010iADT271..V;ADT270..RHD..F;ADT271..RHD..6F..G..DCRL200811

CLEARANCE & BACK SONAR-WITH

89348DCLIP, ULTRASONIC SENSOR

main89348-02020×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,RH & LH

main89348-05041iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,RH

main89348-05061iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,LH

89348JCLIP, ULTRASONIC SENSOR

main89348-02020×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH

main89348-05020×2iADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH

main89348-05080×2iADT27#,ZRT27#..WG..(E,G,V)200811-201111

CLEARANCE & BACK SONAR-WITH

90159W0007

main90159-W0007

7 parts on this diagram · 4 diagrams in section
