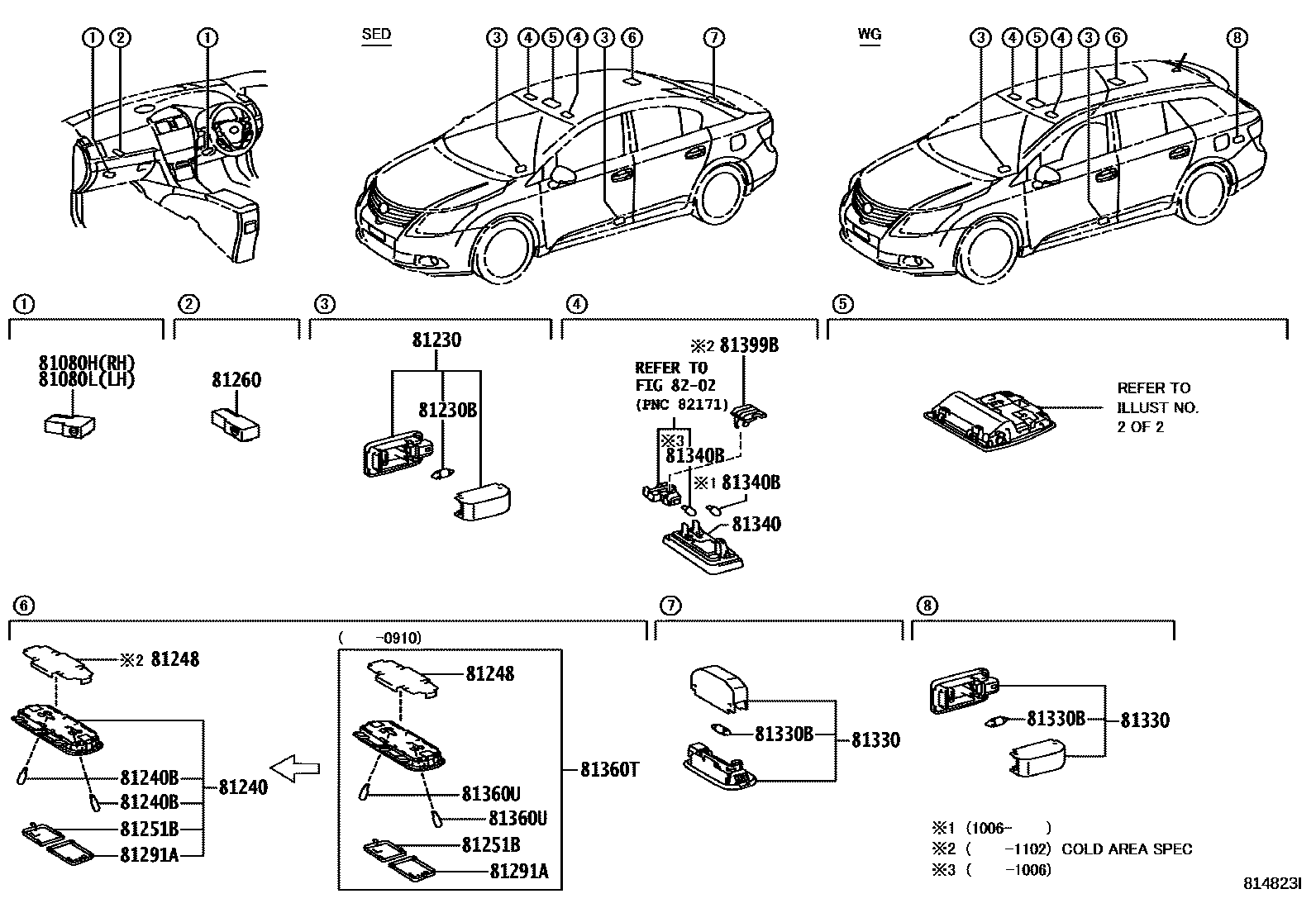

INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
SOL-PLUS GRADE(NICKEL 2)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAYAUDIO & 11SPEAKER; SOL-PLUS GRADE(NICKEL 2)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAYAUDIO & 11SPEAKER & DAB; SOL-PLUS GRADE(NICKEL)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB; SOL-PLUS GRADE(SILVER 2)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAYAUDIO & 11SPEAKER; SOL-PLUS GRADE(SILVER 2)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAYAUDIO & 11SPEAKER & DAB; SOL-PLUS GRADE(SILVER)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB; STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB
PREMIUM GRADE&AUDIO-DISPLAY AUDIO & 10SPEAKER; PREMIUM GRADE&AUDIO-DISPLAY AUDIO & DAB & 10SPEAKER
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
SOL-PLUS GRADE(NICKEL 2)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAYAUDIO & 11SPEAKER; SOL-PLUS GRADE(NICKEL 2)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAYAUDIO & 11SPEAKER & DAB; SOL-PLUS GRADE(NICKEL)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB; SOL-PLUS GRADE(SILVER 2)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAYAUDIO & 11SPEAKER; SOL-PLUS GRADE(SILVER 2)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAYAUDIO & 11SPEAKER & DAB; SOL-PLUS GRADE(SILVER)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB; STEERING COLUMN-ELECTRIC TILT & TELESCOPIC&AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB
PREMIUM GRADE&AUDIO-DISPLAY AUDIO & 10SPEAKER; PREMIUM GRADE&AUDIO-DISPLAY AUDIO & DAB & 10SPEAKER
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
12V 5W
81240LAMP ASSY, ROOM, NO.1
main81250-05030-B0iADT27#,ZRT271,272..(CVT,MTM)..G; ADT270,ZRT270,271..N; ADT271..6FC;ADT27#,ZRT27#..E..(DCR,HTWVM); ZRT272..HTWC201111-201505
LT.GRAY,TRIM1#,20,21; LT.GRAY,TRIM1#,20,21,41; LT.GRAY,TRIM1#,21; LT.GRAY,TRIM2#
GREGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81248COVER, ROOM LAMP, NO.1
COLD AREA SPEC
COLD AREA SPEC
81251BLENS, REAR ROOM LAMP, RH
main81251-05030iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
81260LAMP ASSY, GLOVE BOX
81291ALENS, REAR ROOM LAMP, LH
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
12V 5W
81340LAMP ASSY, VANITY
main81340-30100-B0×2iADT27#,ZRT271,272..(CVT,MTM)..G; ADT270,ZRT270,271..N; ADT271..6FC;ADT27#,ZRT27#..E..(DCR,HTWVM); ZRT272..HTWC201111-201505
LT.GRAY,TRIM1#,20,21; LT.GRAY,TRIM1#,20,21,41; LT.GRAY,TRIM1#,21; LT.GRAY,TRIM2#
GREGE,TRIM21,4#; GREGE,TRIM21,40,41
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
COLD AREA SPEC
81360UBULB, SPOT LAMP
COLD AREA SPEC
81399BCOVER, LENS
COLD AREA SPEC
8202WIRING & CLAMP
18 parts on this diagram · 3 diagrams in section
