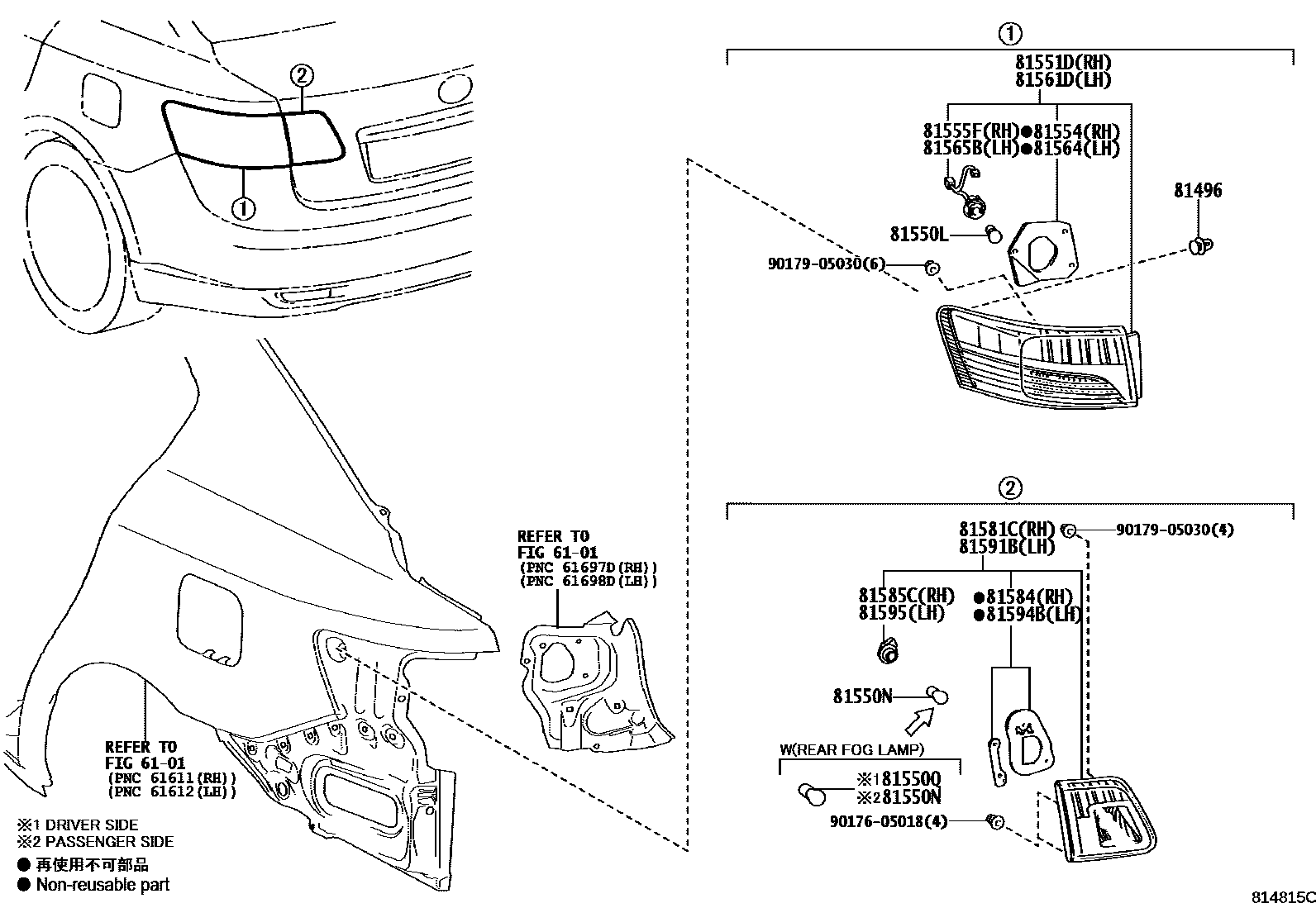

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1 0005 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-21010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

81550LAMP ASSY, REAR COMBINATION, RH

main81550-05270iADT27#,ZRT27#..SED201111-201505

main81550-05280iADT27#,ZRT27#..WG201111-201505

main81550-05300iWWT27#,ZRT27#..SED201505

main81550-05310iWWT27#,ZRT27#..WG201505

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13095iWWT27#,ZRT27#201505

12V 21W

main90981-WF003iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

12V 21W

81550NBULB, BACK UP LAMP

main90981-11059iZRT272..LHD..SED..E..HTWVM201505

12V 16W,CHILE SPEC

main90981-11059iADT27#,ZRT27#..SED201112-201505

12V 16W

main90981-WB019iADT27#,ZRT27#..SED201111-201112

12V 16W

main90981-WC003iADT27#,ZRT27#..WG200811-201505

12V 21W

main90981-WC003iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

12V 21W,CHILE SPEC

81550QBULB, REAR FOG LAMP, NO.1

main90981-WC003iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-05250iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main81551-05260iADT27#,ZRT27#..WG200811-201111

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-05250iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main81552-05260iADT27#,ZRT27#..WG200811-201111

main81552-05270iADT27#,ZRT27#..SED201111-201505

main81552-05280iADT27#,ZRT27#..WG201111-201505

main81552-05300iWWT27#,ZRT27#..SED201505

main81552-05310iWWT27#,ZRT27#..WG201505

81555FHOLDER, REAR COMBINATION LAMP BULB, RH

main81555-05260iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main81555-05270iADT27#,ZRT27#201111-201505

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-05190iADT27#,ZRT27#..WG200811-201111

main81561-05270iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-05250iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main81552-05260iADT27#,ZRT27#..WG200811-201111

main81552-05270iADT27#,ZRT27#..SED201111-201505

main81552-05280iADT27#,ZRT27#..WG201111-201505

main81552-05300iWWT27#,ZRT27#..SED201505

main81552-05310iWWT27#,ZRT27#..WG201505

81565BHOLDER, REAR COMBINATION LAMP BULB, LH

main81555-05260iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main81555-05270iADT27#,ZRT27#201111-201505

81581CLENS AND BODY, REAR LAMP, RH

main81581-05090iADT27#,ZRT27#..LHD..SED..(E,G,N,V)200811-201111

main81581-05100iZRT272..RHD..HTWC200811-201111

main81581-05110iADT27#,ZRT27#..LHD..WG200811-201111

main81581-05120iADT27#,ZRT27#..RHD..WG200811-201111

81584PACKING, REAR LAMP RH

main81584-05090iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main81584-05110iADT27#,ZRT27#..WG200811-201111

main81584-05130iADT27#,ZRT27#..SED201111-201505

main81584-05140iADT27#,ZRT27#..LHD..WG201111-201505

main81584-05150iADT27#,ZRT27#..RHD..WG201111-201505

main81584-05160iWWT27#,ZRT27#201505

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-05110iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main81585-05130iADT27#,ZRT27#..SED201111-201505

main81585-05140iADT27#,ZRT27#..WG201111-201505

81591BLENS AND BODY, REAR LAMP, LH

main81591-05090iADT270..LHD..F200811-201111

main81591-05100iZRT272..RHD..HTWC200811-201104

main81591-05100iADT27#,ZRT27#..RHD..SED..(DCR,DCRL,HTWVM)200811-201111

CHILE SPEC

main81591-05110iADT27#,ZRT27#..LHD..WG200811-201111

main81591-05120iADT27#,ZRT27#..RHD..WG200811-201111

81594BPACKING, REAR LAMP LH

main81584-05090iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main81584-05110iADT27#,ZRT27#..WG200811-201111

main81584-05130iADT27#,ZRT27#..SED201111-201505

main81584-05140iADT27#,ZRT27#..RHD..WG201111-201505

main81584-05150iADT27#,ZRT27#..LHD..WG201111-201505

main81594-05160iWWT27#,ZRT27#201505

81595SOCKET & WIRE, REAR LAMP, LH

main81585-05110iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main81585-05130iADT27#,ZRT27#..SED201111-201505

main81585-05140iADT27#,ZRT27#..WG201111-201505

9017605018

main90176-05018

9017905030

main90179-05030

20 parts on this diagram · 5 diagrams in section
