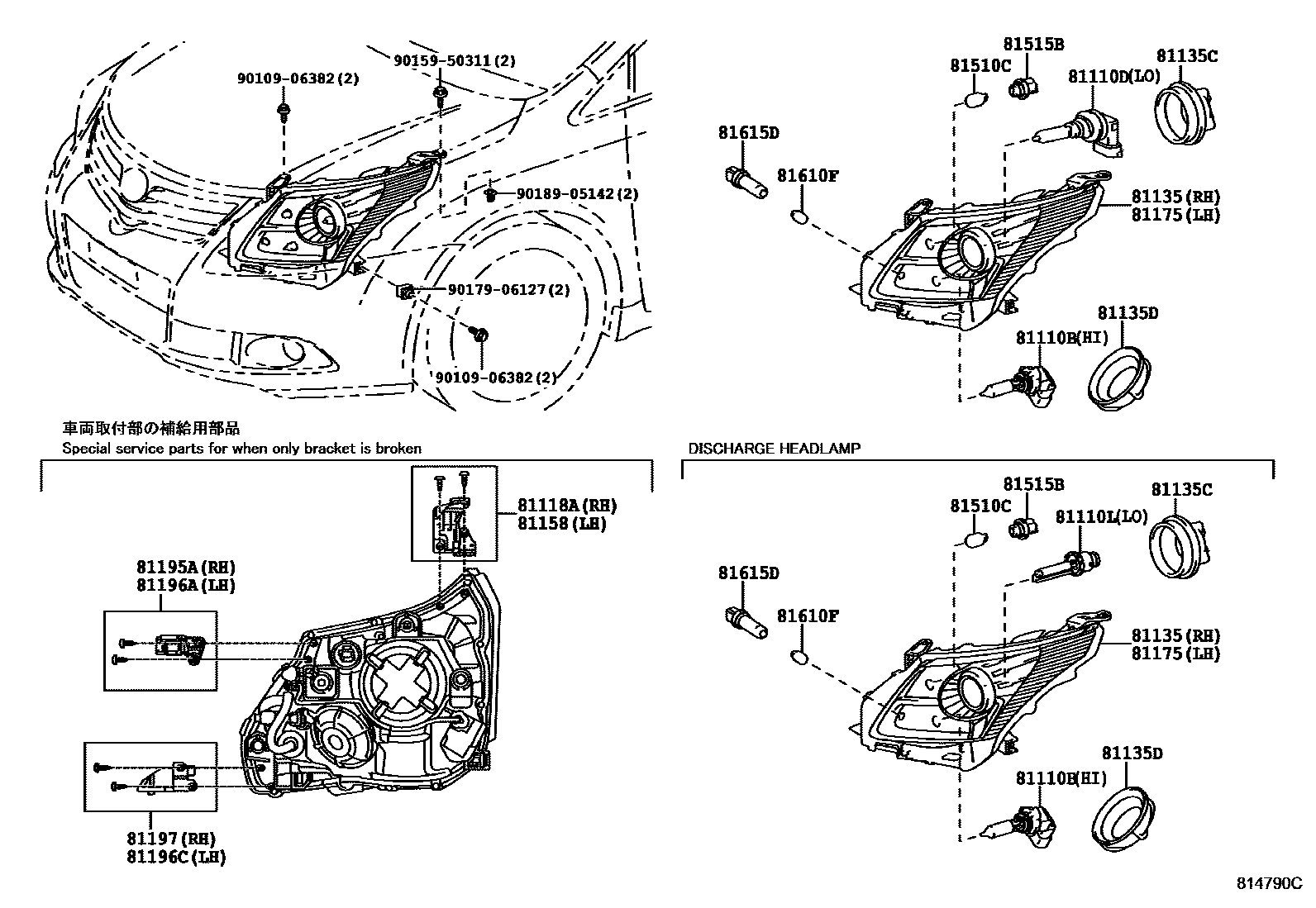

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
12V 65W,HALOGEN
main90981-13091×2iWWT27#,ZRT27#..(E,G)..(DCR,HTWVM); WWT270,ZRT270,271..N; ZRT272..E;WWT27#,ZRT270,271..E,G201505
12V 55W,HALOGEN; 12V 55W,HALOGEN,HEADLAMP-HALOGEN; 12V 55W,HALOGEN,HEADLAMP-HALOGEN & WITH(*AHB)
81110DBULB(FOR HEADLAMP, NO.2)
main90981-13075×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
12V 55W,HALOGEN
81110LBULB, DISCHARGE HEADLAMP
45V 35W,HEADLAMP-DISCHARGE & AFS
45V 35W,HEADLAMP-DISCHARGE & AFS
42V 35W,HEADLAMP-DISCHARGE & AFS
81118ABRACKET, HEADLAMP, RH
81135UNIT ASSY, HEADLAMP, RH
main81130-05380iWWT27#,ZRT27#..LHD..(E,G)..(DCR,HTWVM); WWT270,ZRT270,271..LHD..N; ZRT272..LHD..E;WWT27#,ZRT270,271..LHD..(E,G)201505-201807
HEADLAMP-HALOGEN; HEADLAMP-HALOGEN & WITH(*AHB)
main81130-05390supersedes 81130-05410iWWT27#,ZRT27#..RHD..(E,G); WWT270,ZRT270,271..RHD..N; ZRT272..RHD..E;WWT27#,ZRT270,271..RHD..(E,G)201505-201807
HEADLAMP-HALOGEN; HEADLAMP-HALOGEN & WITH(*AHB)
MARK:KOITO 05-38
MARK:KOITO 05-47
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-40; HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-40
HEADLAMP-LED & WITH(AFS & *AHB); HEADLAMP-LED & WITH(AFS)
HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-49; HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-49
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
81135CCOVER, HEADLAMP BACK, NO.1
main81135-05310×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
main81135-05330×2iADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM)200811-201111
HEADLAMP-DISCHARGE & AFS
81135DCOVER, HEADLAMP BACK, NO.2
main81135-05320×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
81158BRACKET, HEADLAMP, LH
main81158-05310iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
81175UNIT ASSY, HEADLAMP, LH
main81170-05380iWWT27#,ZRT27#..LHD..(E,G)..(DCR,HTWVM); WWT270,ZRT270,271..LHD..N; ZRT272..LHD..E;WWT27#,ZRT270,271..LHD..(E,G)201505-201807
HEADLAMP-HALOGEN; HEADLAMP-HALOGEN & WITH(*AHB)
main81170-05390supersedes 81170-05410iWWT27#,ZRT27#..RHD..(E,G); WWT270,ZRT270,271..RHD..N; ZRT272..RHD..E;WWT27#,ZRT270,271..RHD..(E,G)201505-201807
HEADLAMP-HALOGEN; HEADLAMP-HALOGEN & WITH(*AHB)
MARK:KOITO 05-38
MARK:KOITO 05-47
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-DISCHARGE & AFS
HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-40; HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-40
HEADLAMP-LED & WITH(AFS & *AHB); HEADLAMP-LED & WITH(AFS)
HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-49; HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-49
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH
main81196-05020iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
81197BRACKET, HEADLAMP, LOWER RH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15011×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
12V 21W,AMBER
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 21/5W
12V 5W
81615DSOCKET, CLEARANCE LAMP
main90075-60077×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
9010906382
main90109-06382
9015950311
main90159-50311
9017906127
main90179-06127
9018905142
main90189-05142
21 parts on this diagram · 5 diagrams in section
